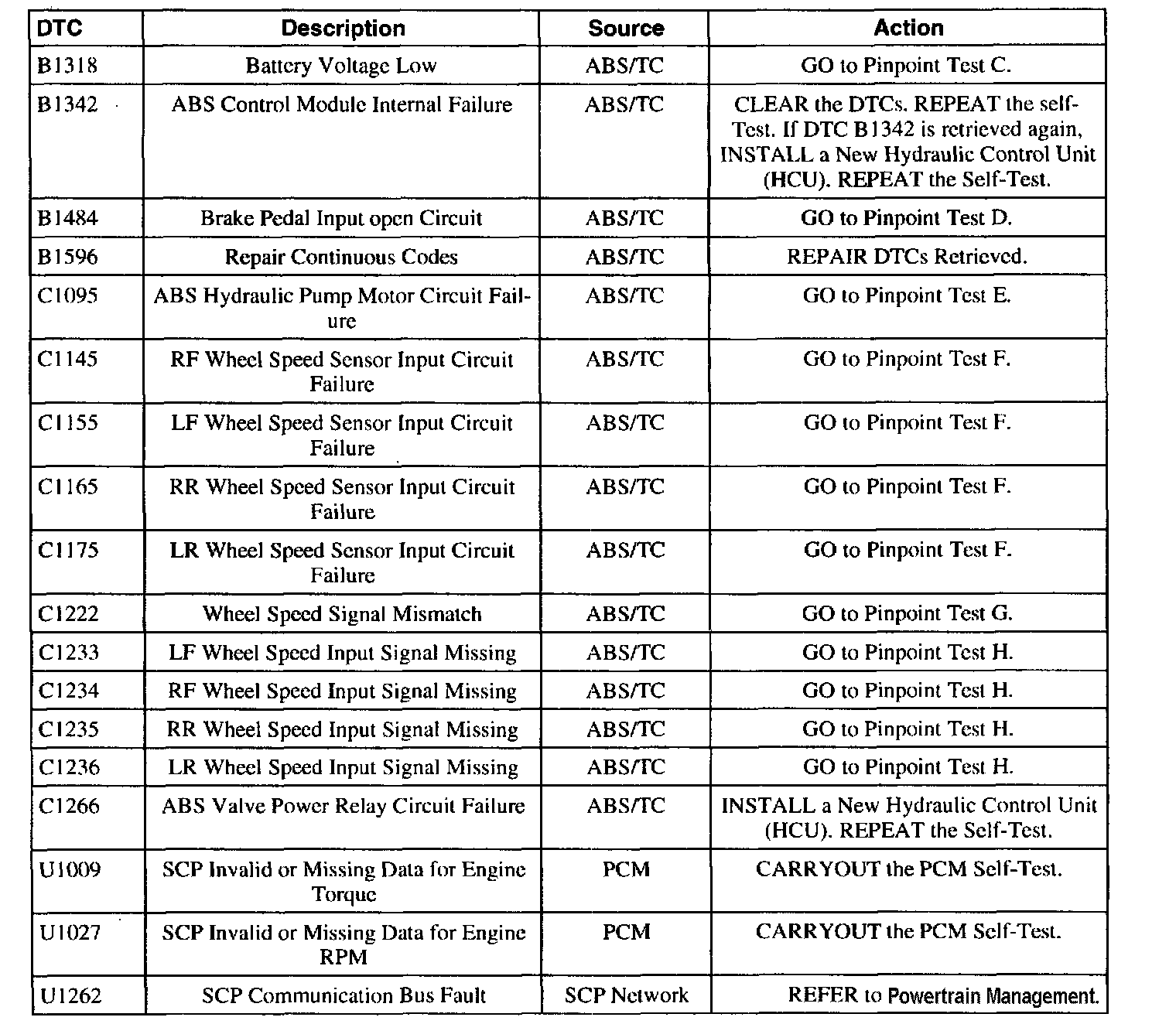

ABS Control Module Diagnostic Trouble Code (DTC) Index
ABS Control Module Diagnostic Trouble Code (DTC) Index
B1318-B1596 / C1095-C1266 / U1009-U1262:
NOTE:
The wheel speed DTCs can be cleared but the warning indicator will remain illuminated until the vehicle is driven over
12 Km/h (7 mph).
