Test C: A Single Mirror Does Not Function With Switch Logic
Test C: A Single Mirror Does Not Function With Switch Logic

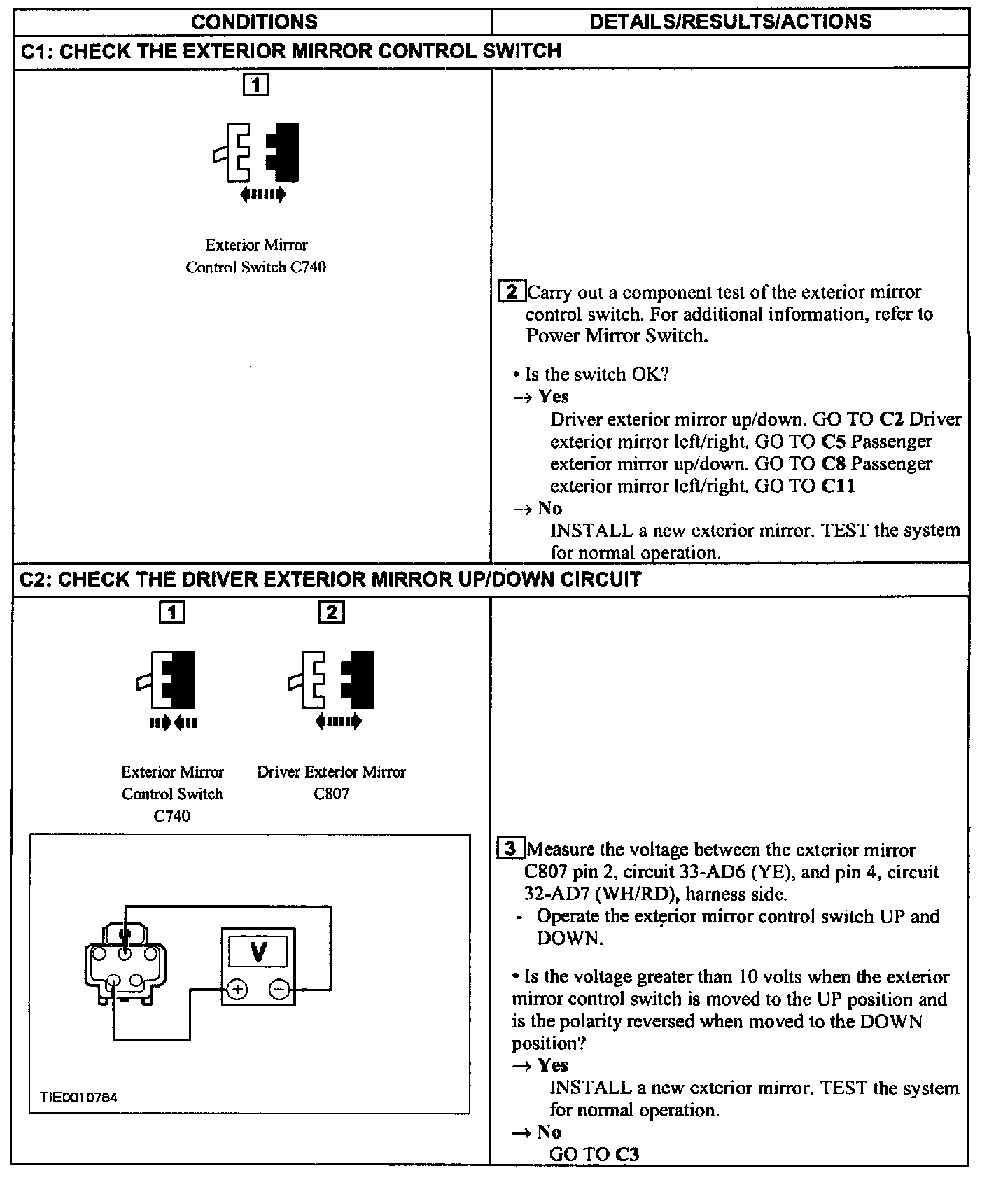

C1 - C2:

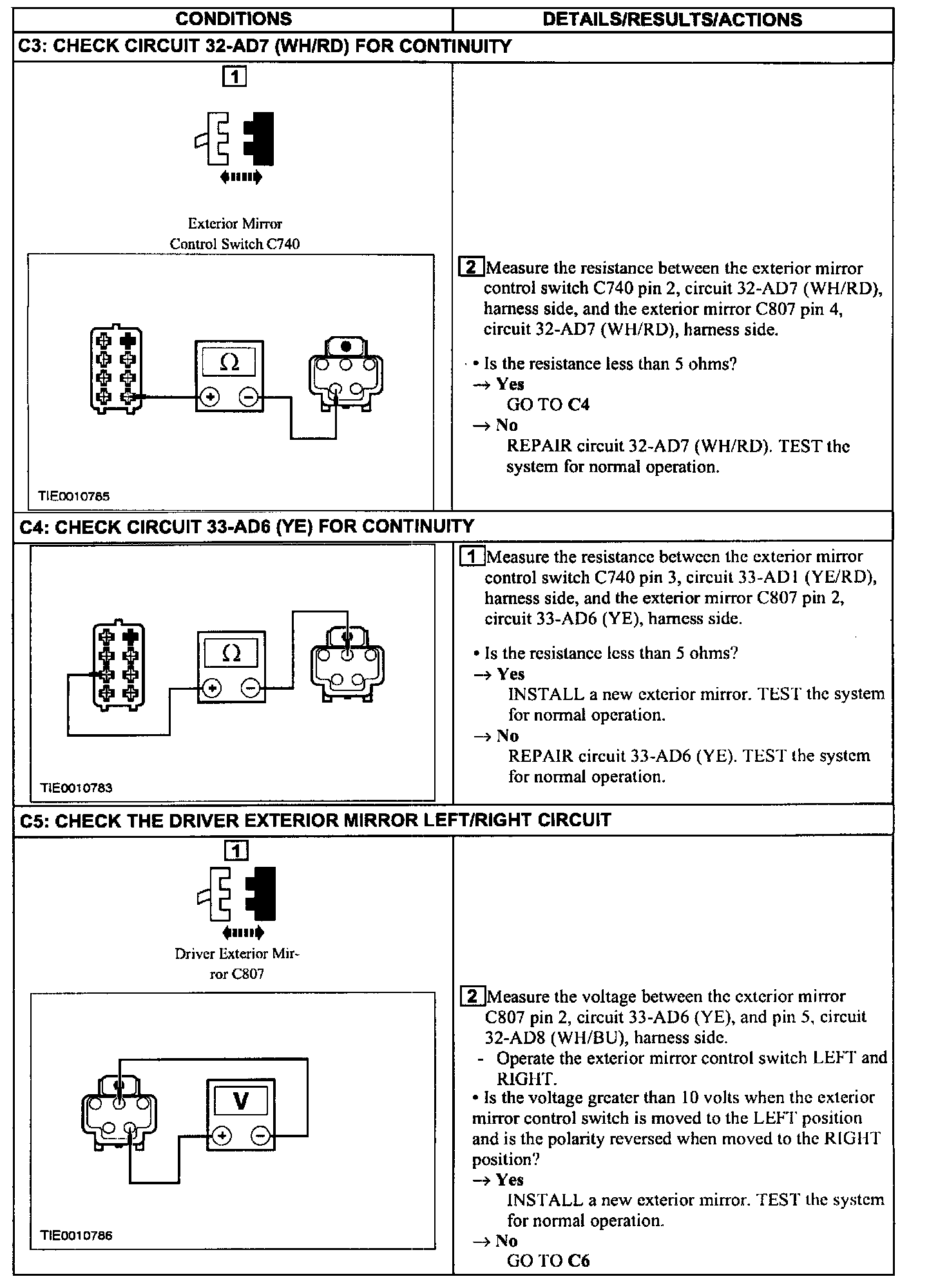

C3 - C5:

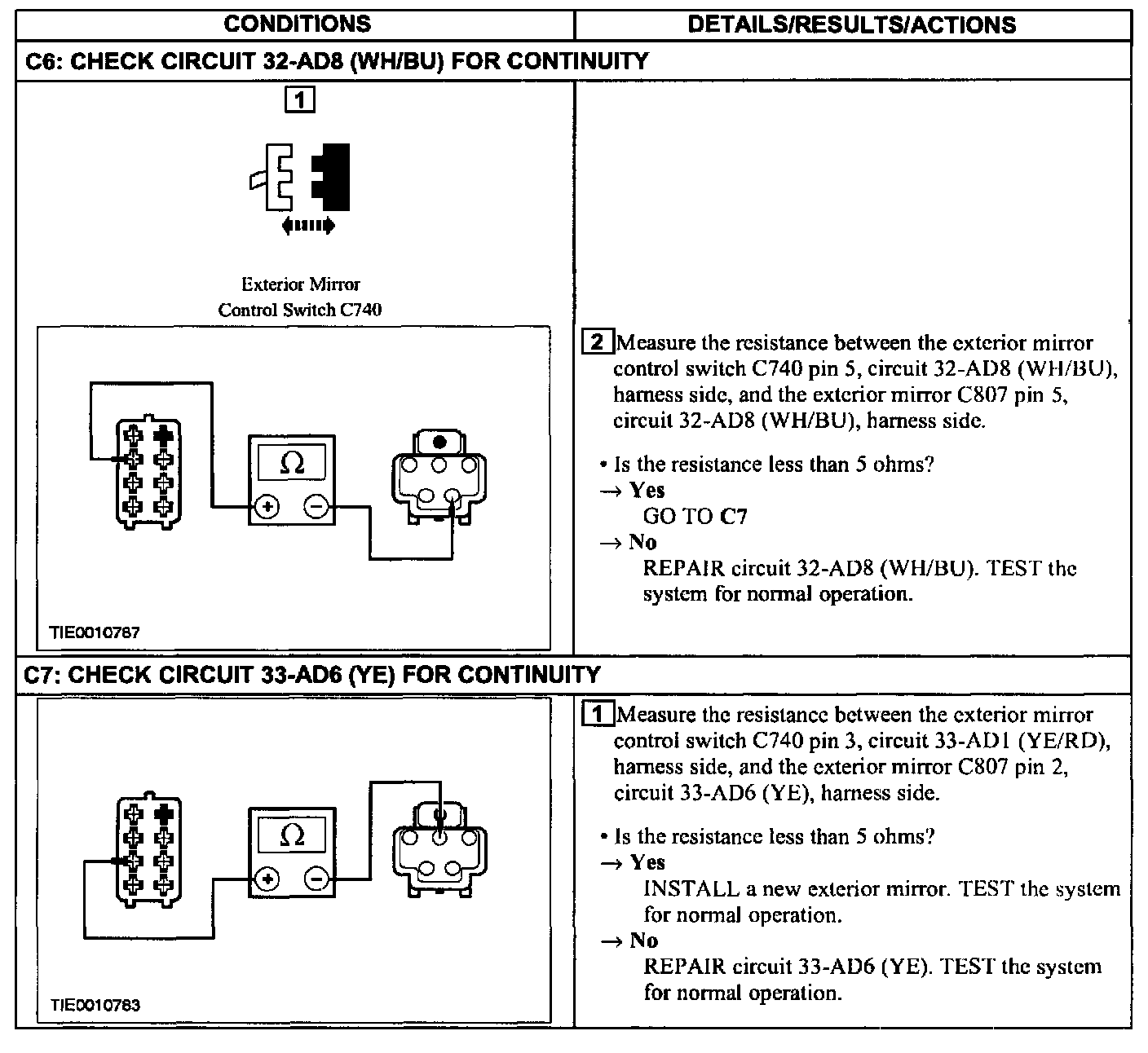

C6 - C7:

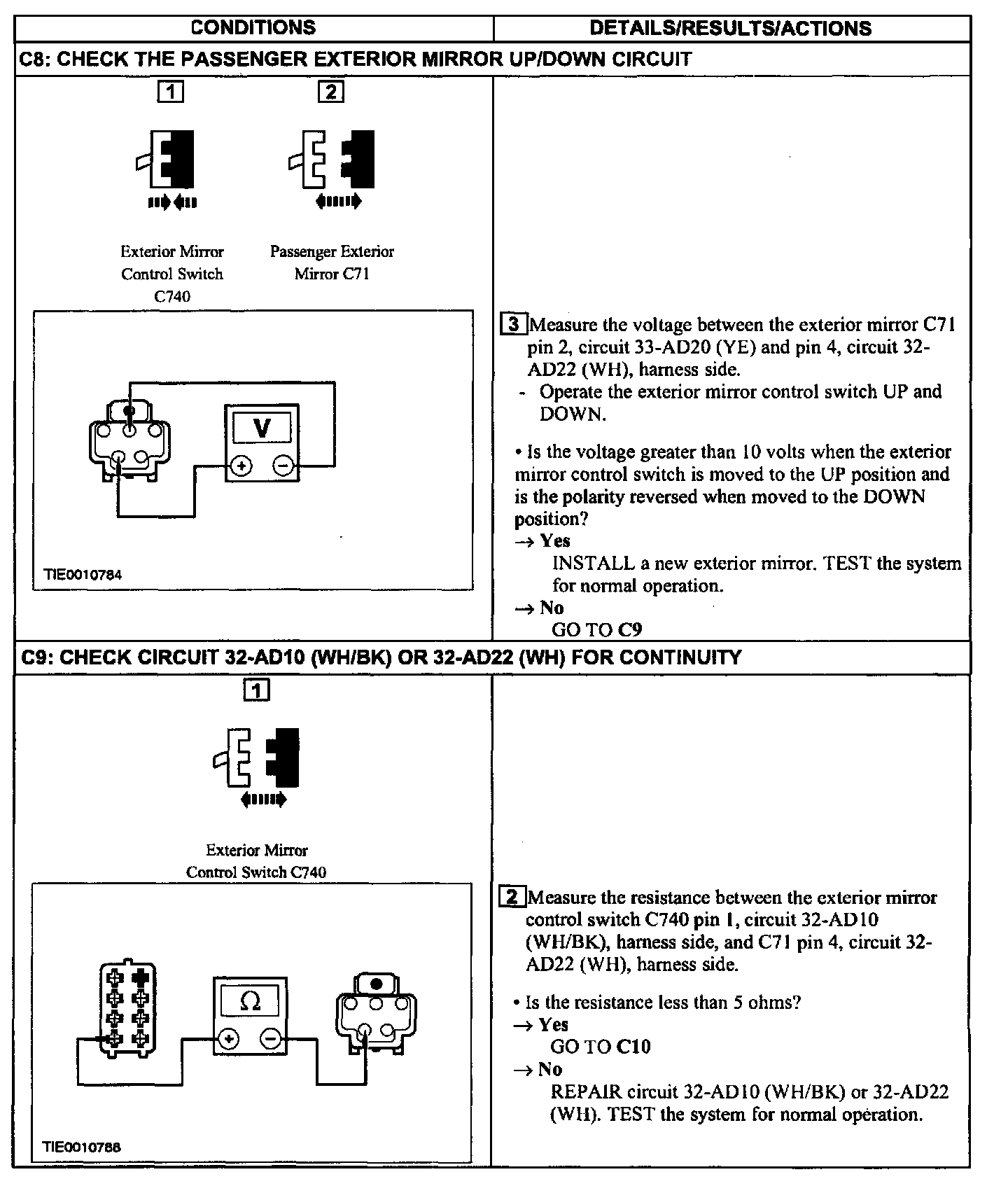

C8 - C9:

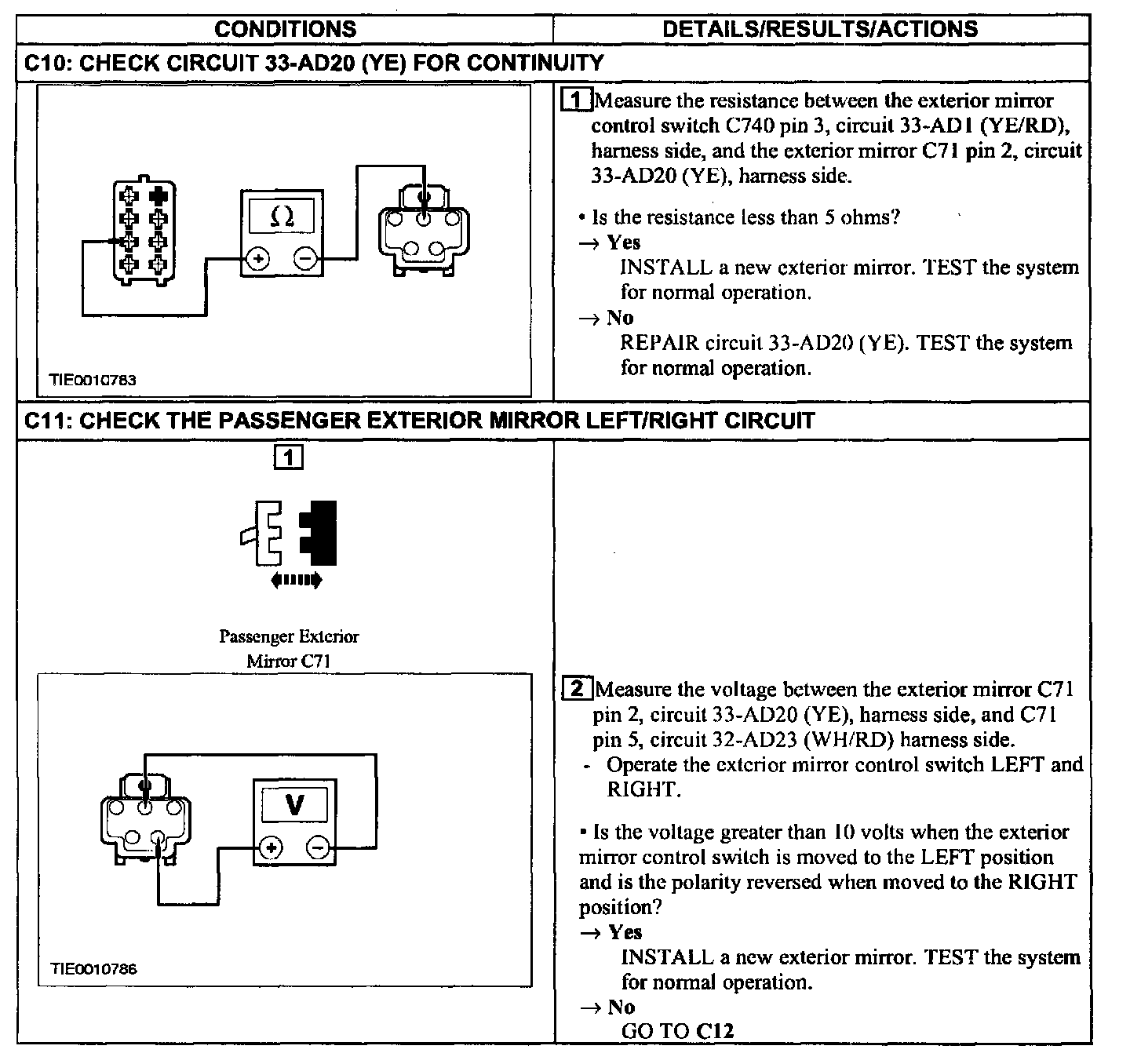

C10 - C11:

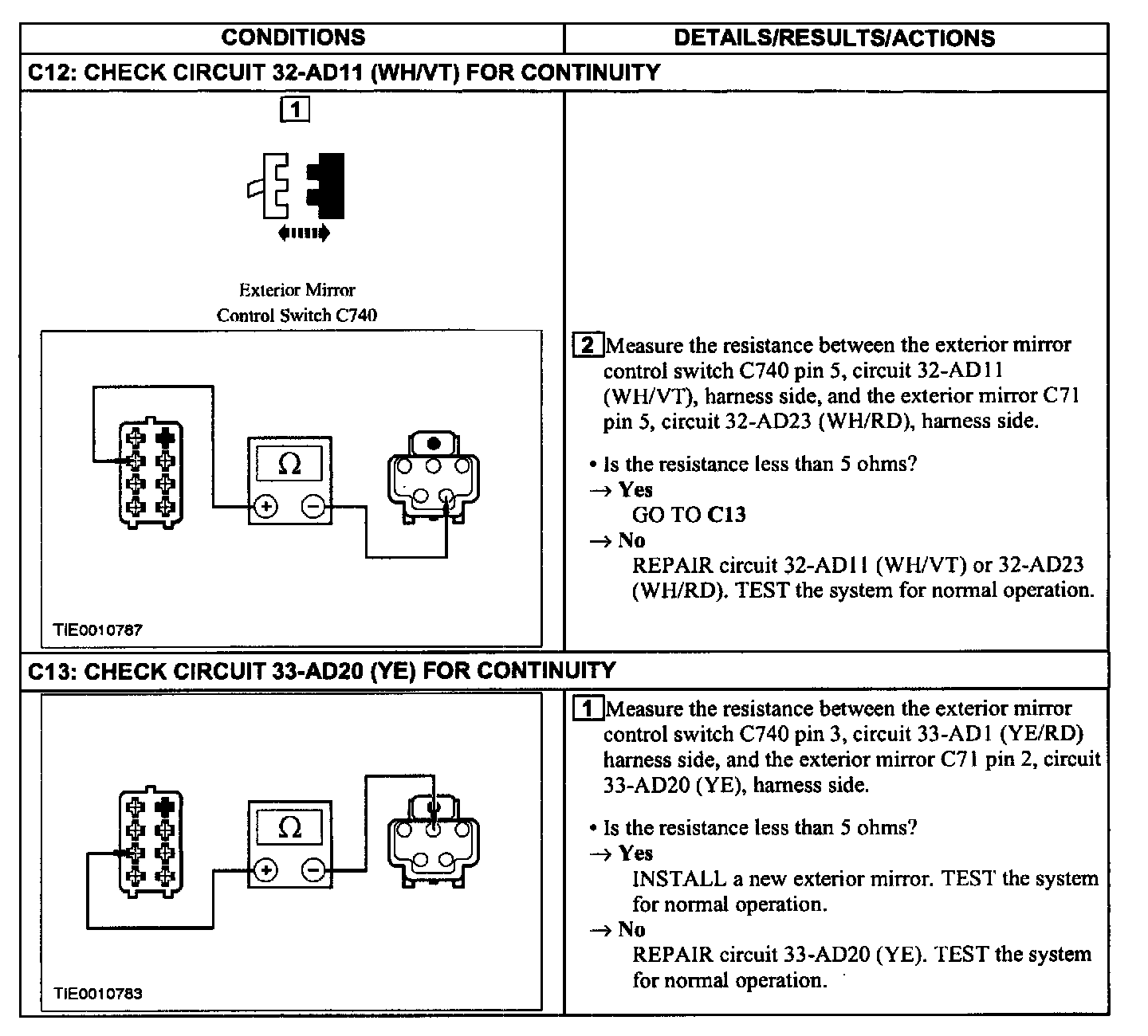

C12 - C13:
