Cowl Side Trim Panel

COWL SIDE TRIM PANEL

Removal

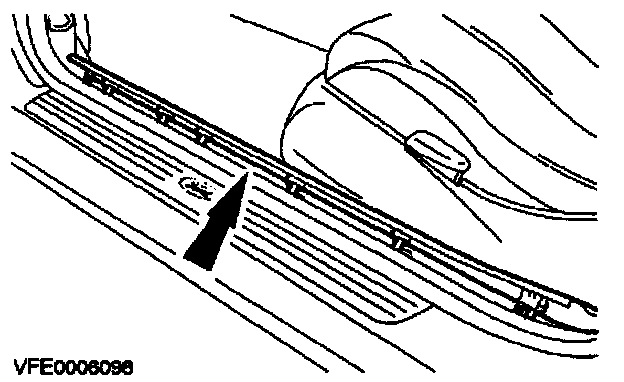

1. Remove the scuff panel trim.

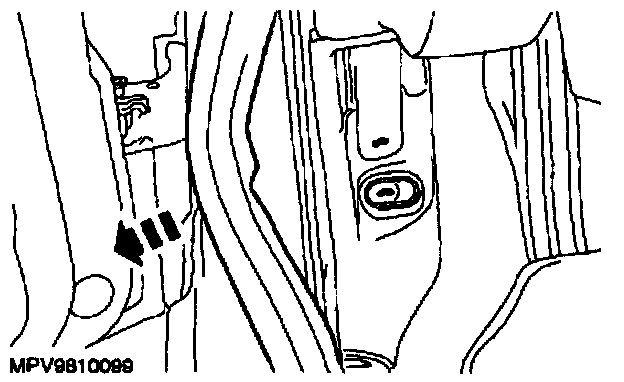

2. Detach the door opening weatherstrip.

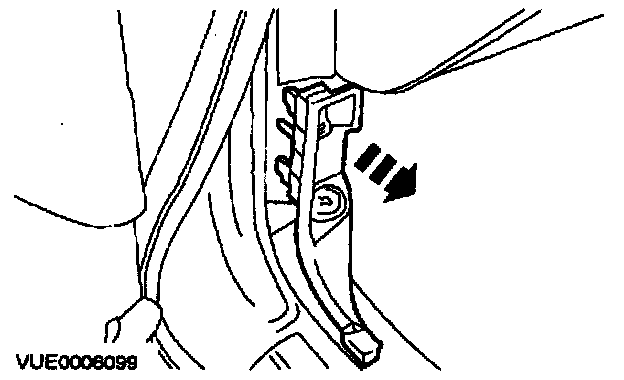

3. Detach the cowl side trim panel.

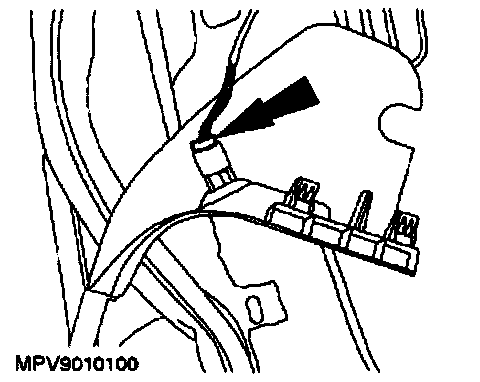

4. Disconnect the liftgate release switch electrical connector and remove the cowl side trim panel.

Installation
1. To install, reverse the removal procedure.
