B-Pillar Trim Panel

B-PILLAR TRIM PANEL

Removal
1. Remove the A-Pillar trim panel.
2. Remove the rear quarter trim panel.

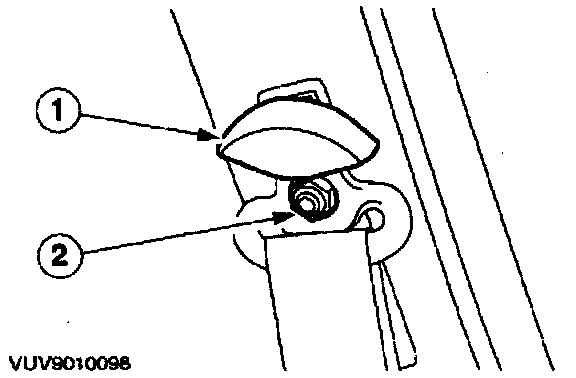

3. Detach the front safety belt top anchor.
1 Open the cover.
2 Detach the front safety belt top anchor.

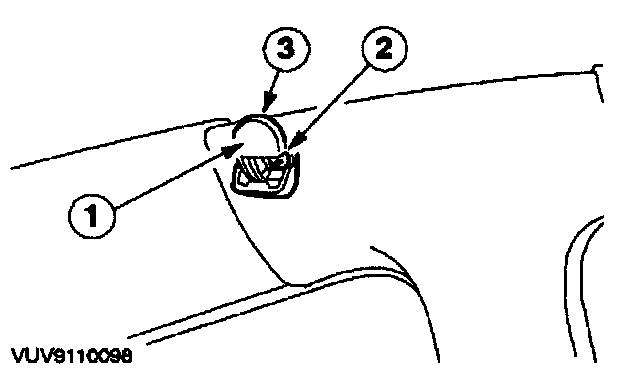

4. Remove the coat hook.
1 Depress the hook.
2 Remove the screw.
3 Remove the coat hook.

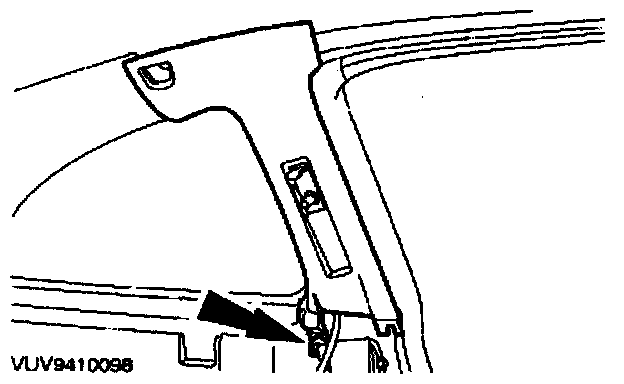

5. Disconnect the interior scan sensor electrical connector (if equipped).

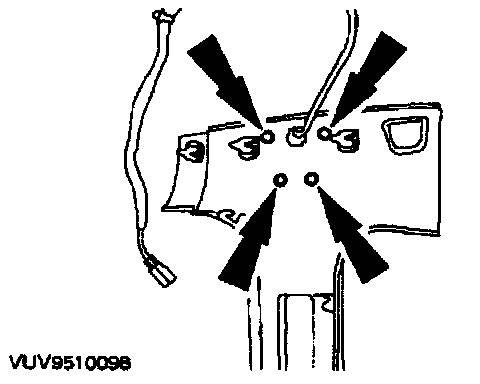

6. Remove the B-pillar trim panel clip.







7. Remove the B-pillar trim panel.







8. NOTE: Carefully pass the wiring hamess through the trim panel.

Remove the interior scan sensor (if equipped).

Installation







1. To install, reverse the removal procedure.
