A-Pillar Trim Panel

A-PILLAR TRIM PANEL

Removal

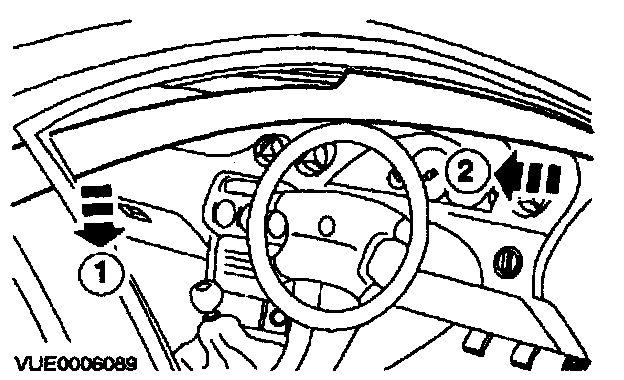

1. Detach the door opening weatherstrip.

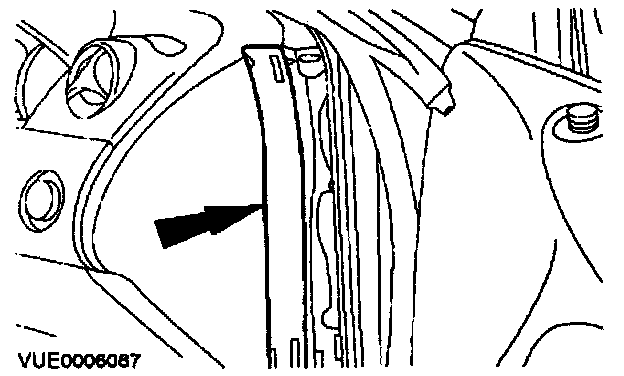

2. Remove the instrument panel side trim.

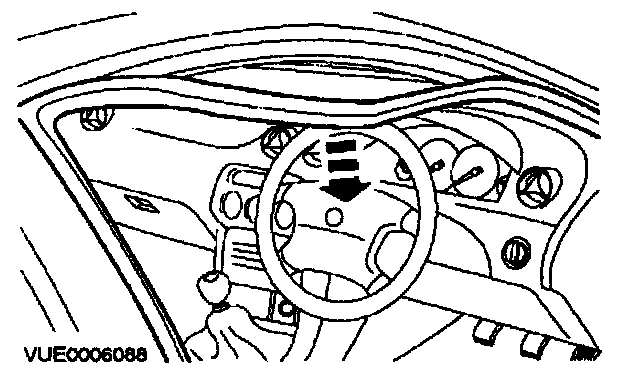

3. Detach the door opening weatherstrip.

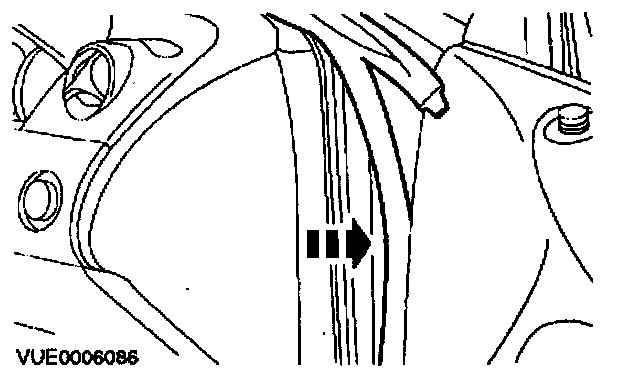

4. Remove the A-pillar trim panel.
1 Detach the A-pillar trim panel.
2 Remove the A-pillar trim panel.

Installation

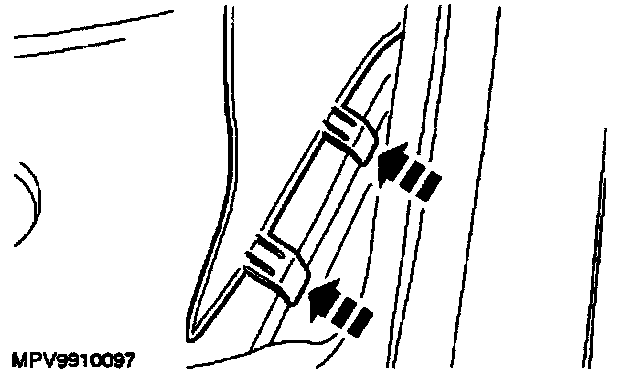

1. NOTE: Make sure that the tangs locate into the instrument panel.

To install, reverse the removal procedure.
