C-Pillar Trim Panel

REMOVAL
1. Remove the B-Pillar trim panel.
2. Remove the rear quarter trim panel.







3. Detach the rear safety belt top anchor.

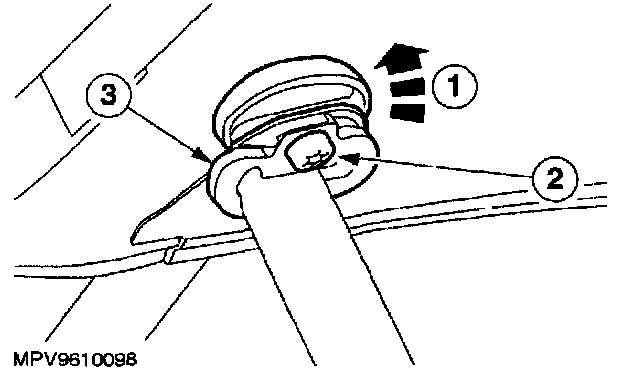

1. Open the cover.
2. Remove the bolt.
3. Detach the rear safety belt top anchor.

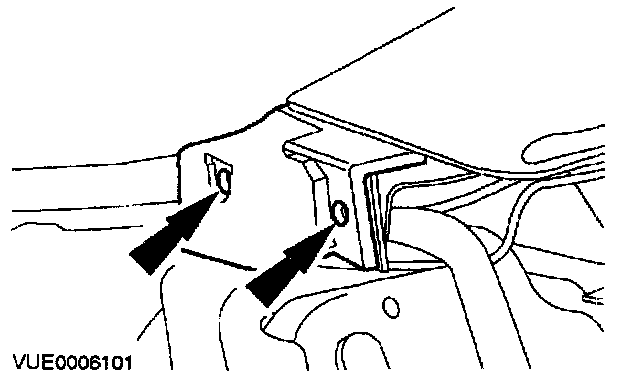

4. Remove the support panel.

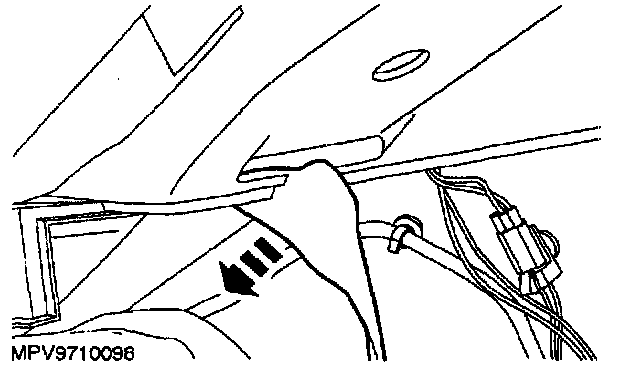

5. Detach the safety belt from the trim panel.

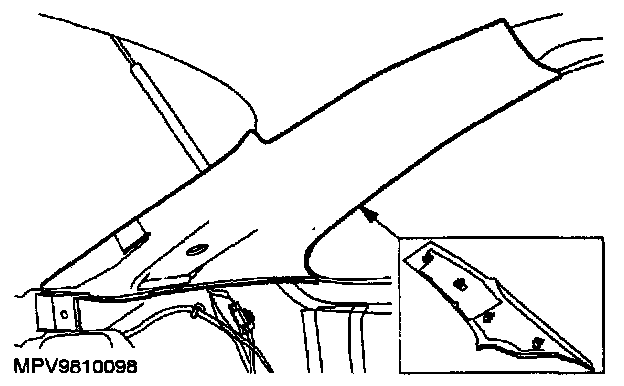

6. Remove the trim panel.

INSTALLATION

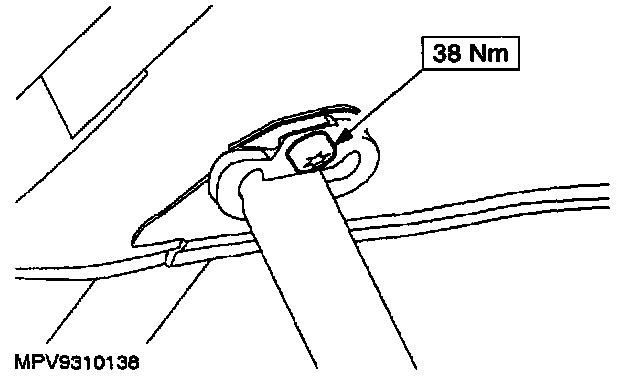

1. To install, reverse the removal procedure.
