B-Pillar Trim Panel

REMOVAL
1. Remove the A-Pillar trim panel.
2. Remove the rear quarter trim panel.

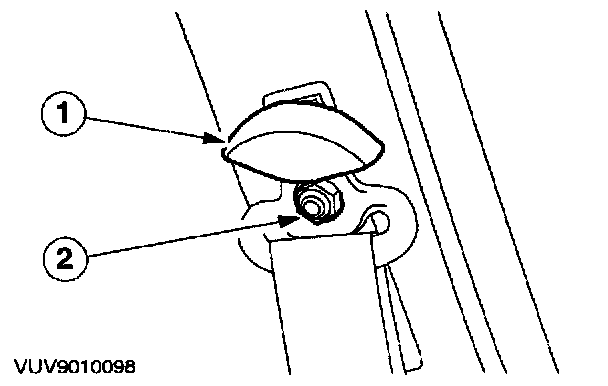

3. Detach the front safety belt top anchor.
1. Open the cover.
2. Detach the front safety belt top anchor.

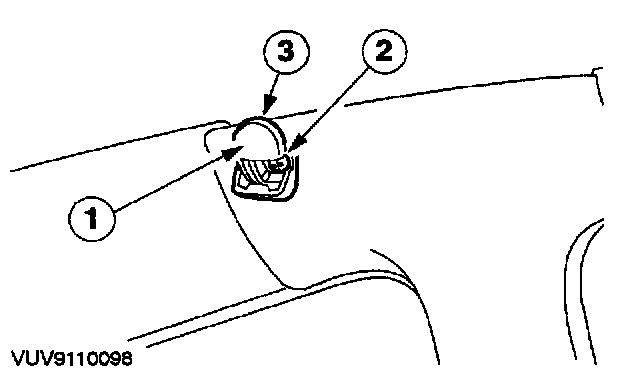

4. Remove the coat hook.
1. Depress the hook.
2. Remove the screw.
3. Remove the coat hook.

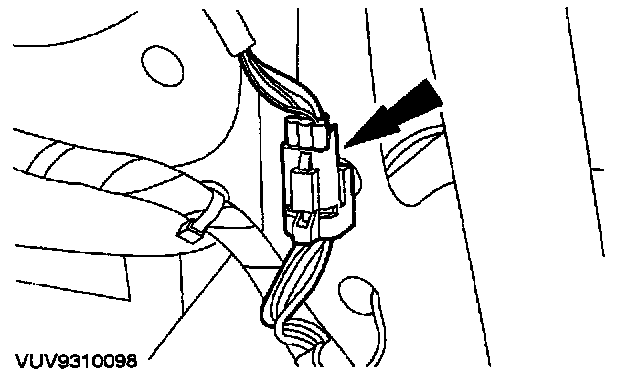

5. Disconnect the interior scan sensor electrical connector (if equipped).

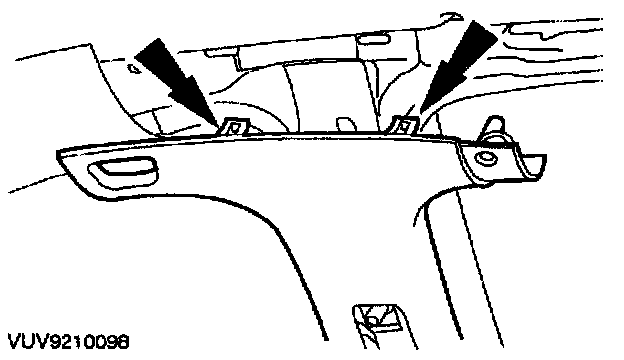

6. Remove the B-pillar trim panel clip.

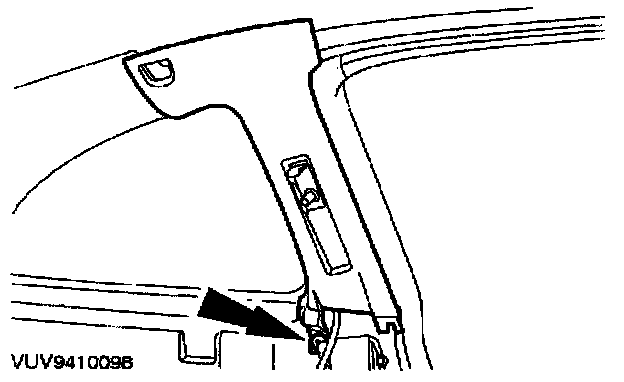

7. Remove the B-pillar trim panel.

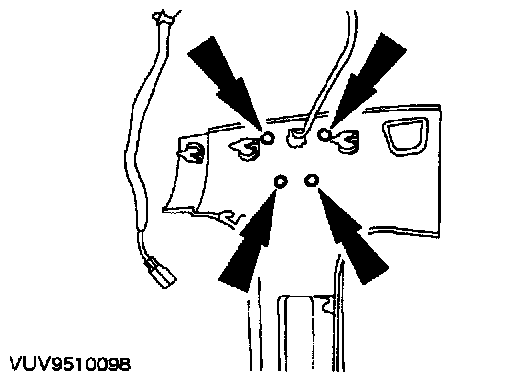

8. Remove the interior scan sensor (if equipped).


NOTE: Carefully pass the wiring harness through the trim panel.

INSTALLATION







1. To install, reverse the removal procedure.
