A-Pillar Trim Panel

REMOVAL

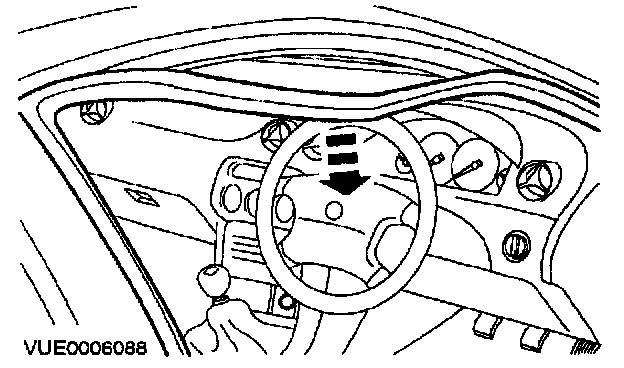

1. Detach the door opening weatherstrip.

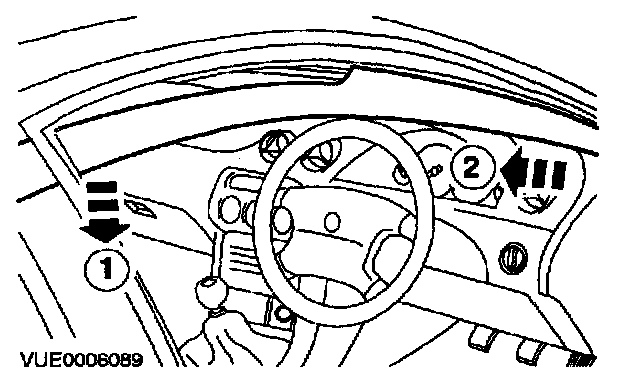

2. Remove the instrument panel side trim.







3. Detach the door opening weatherstrip.







4. Remove the A-pillar trim panel.

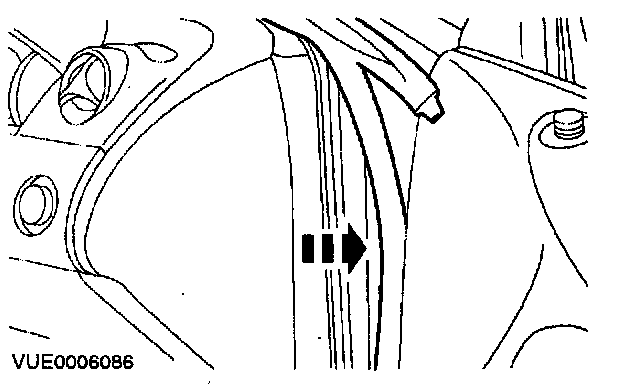

1. Detach the A-pillar trim panel.

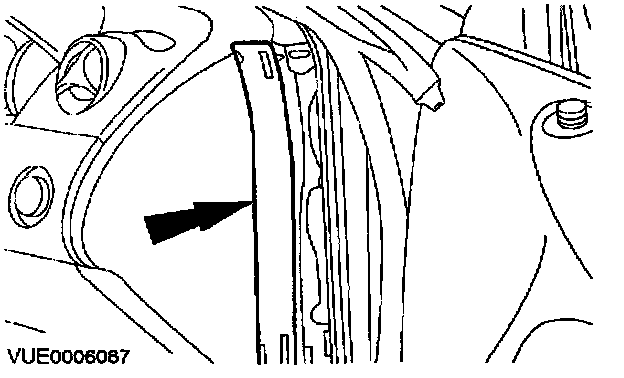

2. Remove the A-pillar trim panel.

INSTALLATION







1. To install, reverse the removal procedure.

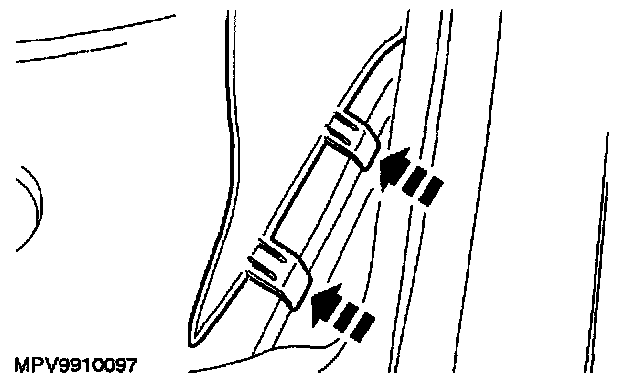

NOTE: Make sure that the tangs locate into the instrument panel.
