With Manual Transaxle

REMOVAL

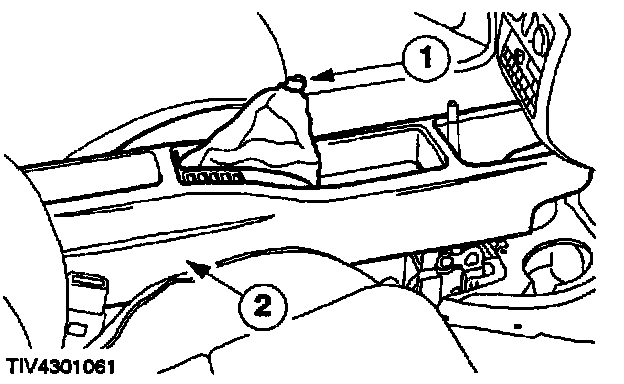

1. Remove the gearshift knob.

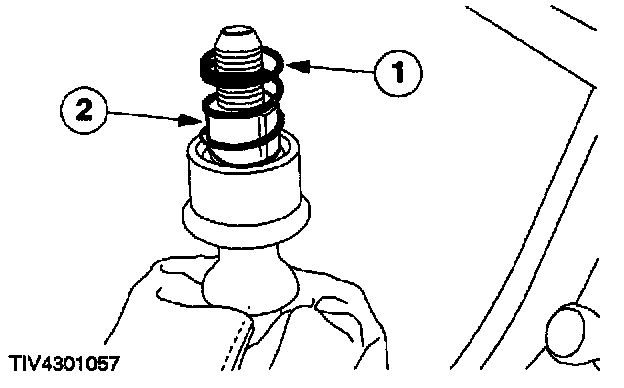

2. Remove the spring and damping sleeve.
1. Remove the spring.
2. Remove the damping sleeve.
3. Remove the gearshift lever boot.







4. Remove the floor console rear screws.
- Raise the armrest to gain access (if equipped).
- Remove the rear cup holder to gain access (console without armrest).

NOTE: Floor console without armrest shown, floor console with armrest similar.

5. Remove ashtray and cigar lighter bezel (if equipped).







6. Remove the stowage tray (if equipped).
1. Push down on the power socket aperture.
2. Pull out the stowage tray.







7. Remove the floor console front screws.







8. Remove the floor console.
1. Fully raise the parking brake control lever.
2. Remove the console.
- Disconnect the cigar lighter/power socket electrical connector (if equipped).

INSTALLATION
1. To install, reverse the removal procedure.
