Hood Latch: Service and Repair

REMOVAL

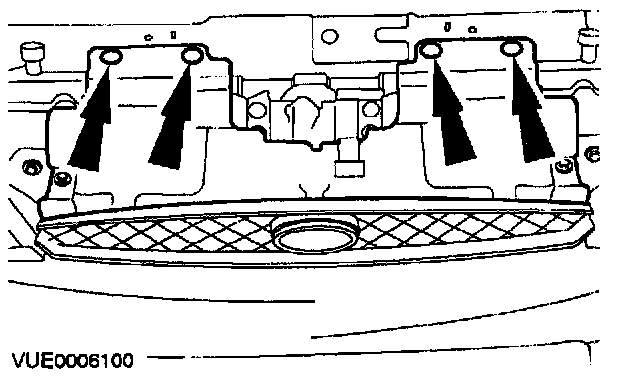

1. Remove the radiator air deflector.

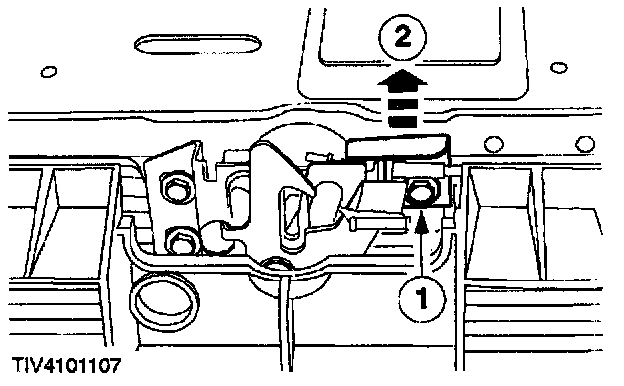

2. Remove the hood latch cover bracket.
1. Loosen the retaining bolt.
2. Remove the hood latch cover bracket.

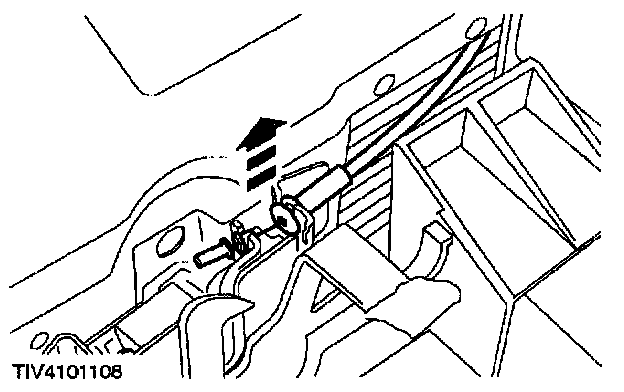

3. Detach the hood latch release cable.

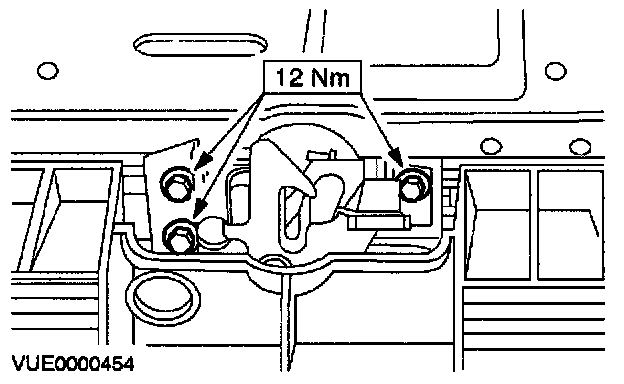

4. Remove the hood latch.

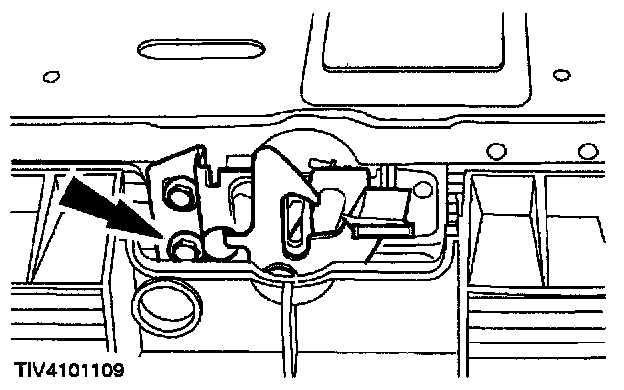

NOTE: To aid installation using a suitable marker pen, mark the position of the hood latch.

INSTALLATION







1. To install, reverse the removal procedure.
