Hood Latch Release Cable: Service and Repair

REMOVAL
1. Remove the cowl side trim panel.

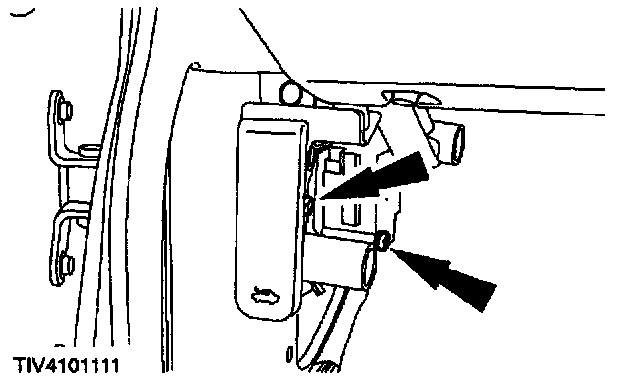

2. Remove the hood latch release handle screws.







3. Remove the hood latch release handle.

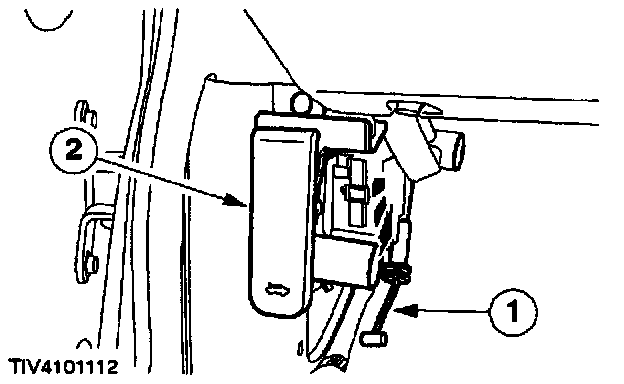

1. Detach the cable.
2. Remove the handle.

INSTALLATION
1. To install, reverse the removal procedure.
