Reading and Clearing Diagnostic Trouble Codes

NOTE: Refer to Vehicle/Diagrams, for schematic and connector information.

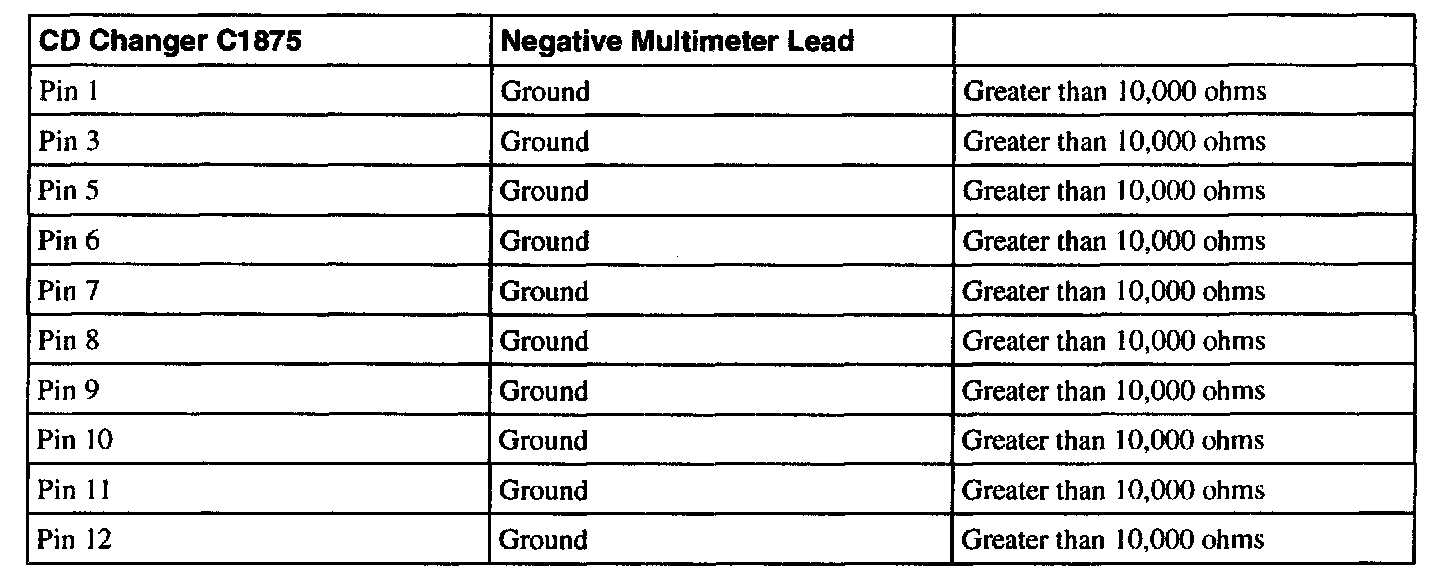

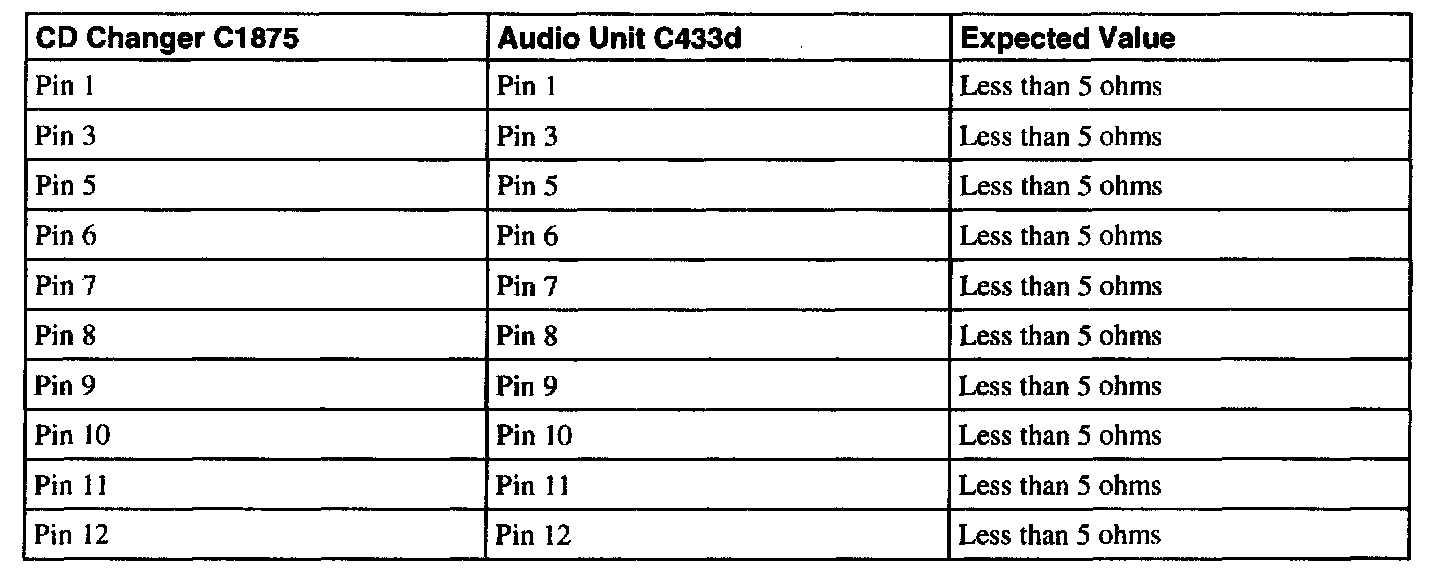

1. Using a multimeter, test the CD changer harness using the table as a guide to meter lead placement as well as expected values.
2. If routed here from a Pinpoint Test, return to the Pinpoint Test. Pinpoint Tests
