Cougar L4-122 2.0L DOHC VIN 3 SFI
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Radio, Stereo, and Compact Disc
>>
Speaker
>>
Service and Repair
>>
Front Door Speaker
Front Door Speaker
REMOVAL
1.
Remove the door trim panel.
2.

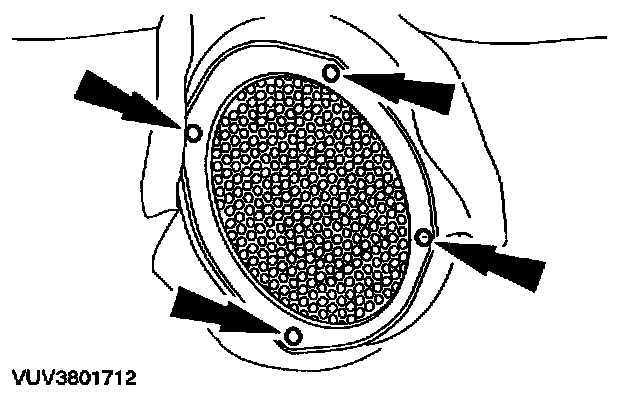

Remove the screws.
3.

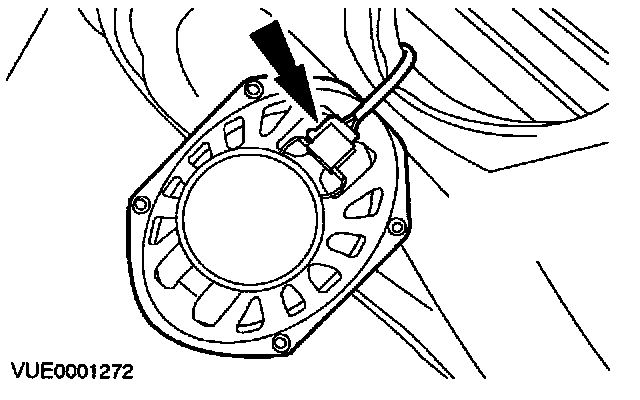

Remove the speaker. Disconnect the electrical connector.
INSTALLATION
1.
To install, reverse the removal procedure.
