Radio, Stereo, and Compact Disc: Service and Repair

Radio Removal Tool:

SPECIAL SERVICE TOOL(S)

REMOVAL
1. Disconnect the battery ground cable.

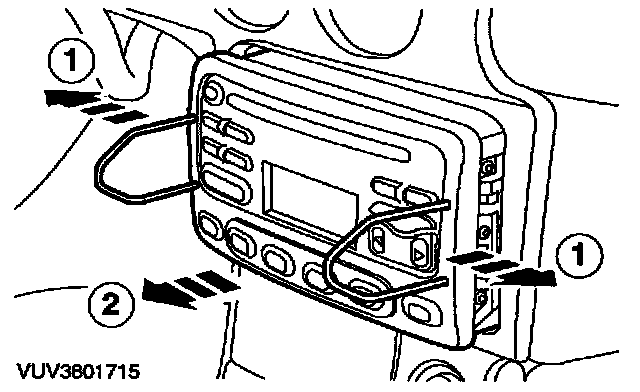

2. Using the special tool, detach the audio unit.
^ Insert the special tool into the locating holes until they click into place.
1. Pull the tools gently to the left and night of the unit to release the locking tangs.
2. Pull the unit out of the instrument panel.







3. Remove the audio unit.

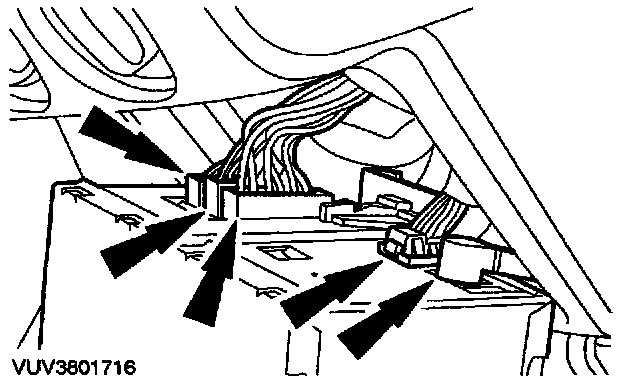

^ Disconnect the four electrical connectors.
^ Disconnect the audio unit antenna cable.

INSTALLATION
1. To install, reverse the removal procedure.
