CD Changer: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.







2. Remove the load space floor covering.

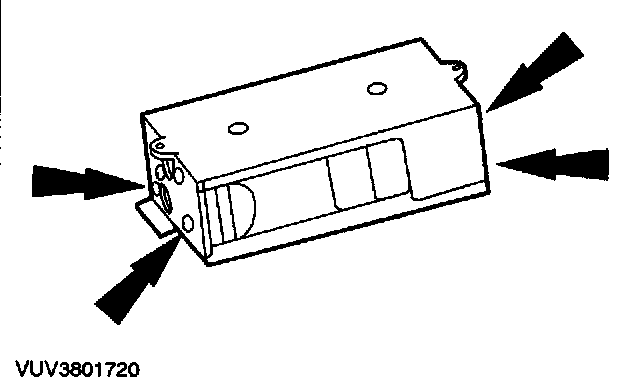

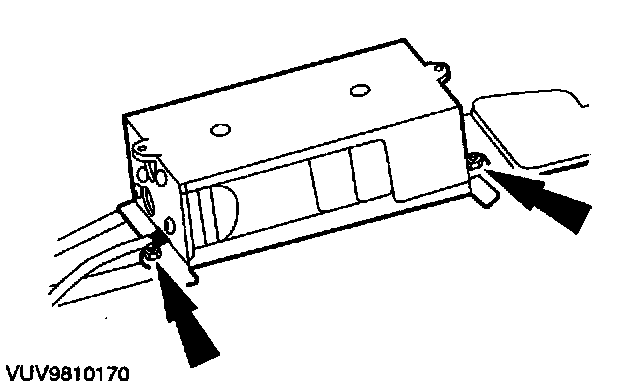

3. Detach the CD changer and retaining bracket.

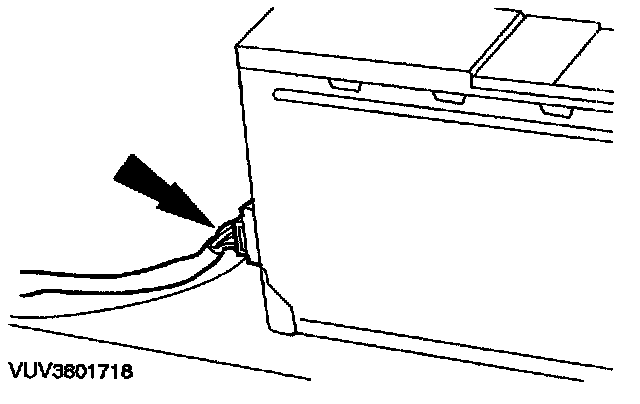

4. Disconnect the CD changer electrical connector and remove the CD changer and retaining bracket.







5. Remove the CD changer from the retaining bracket.

INSTALLATION
1. To install, reverse the removal procedure.
