Anti-Theft - Perimeter

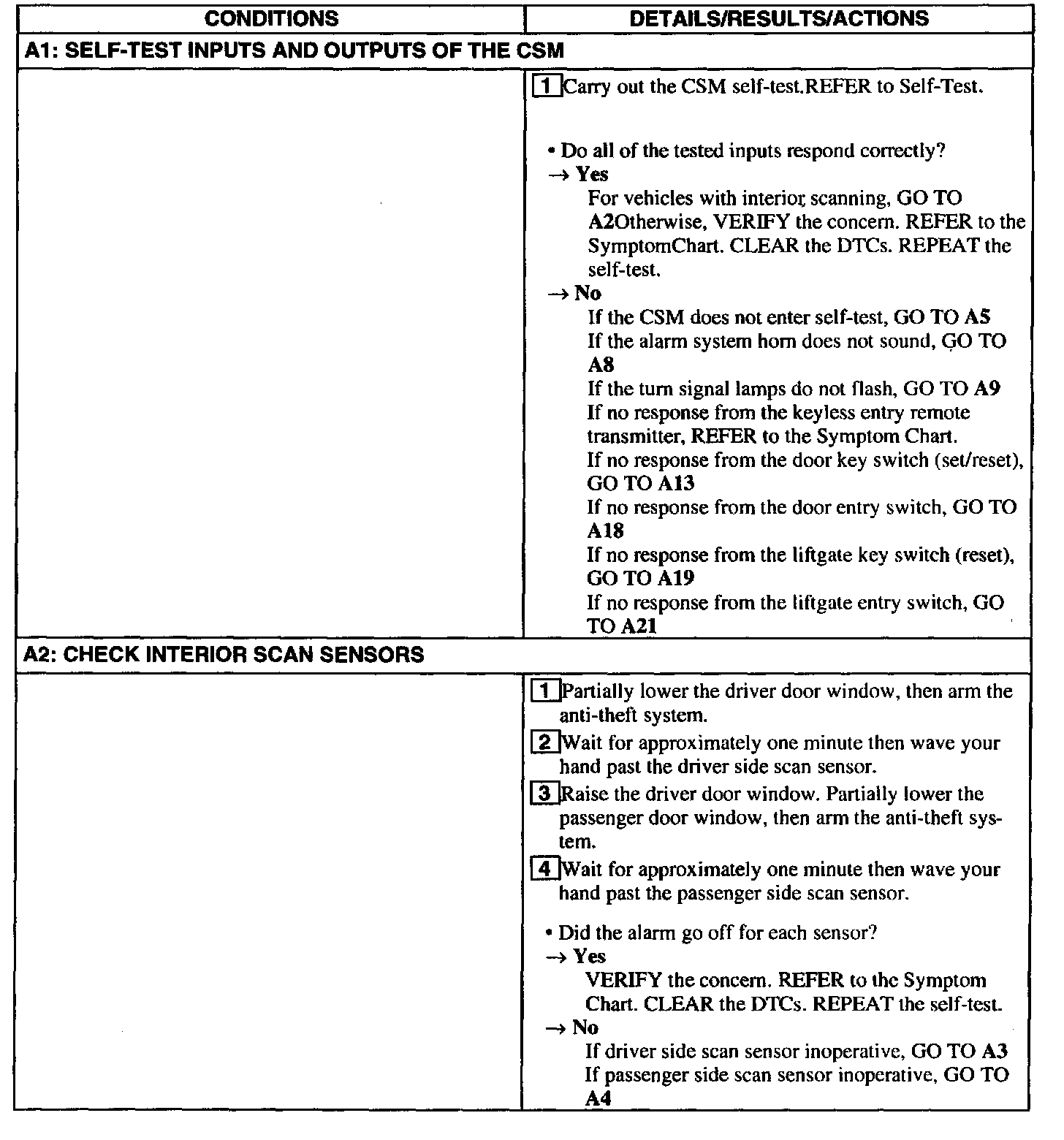

A1 - A2:

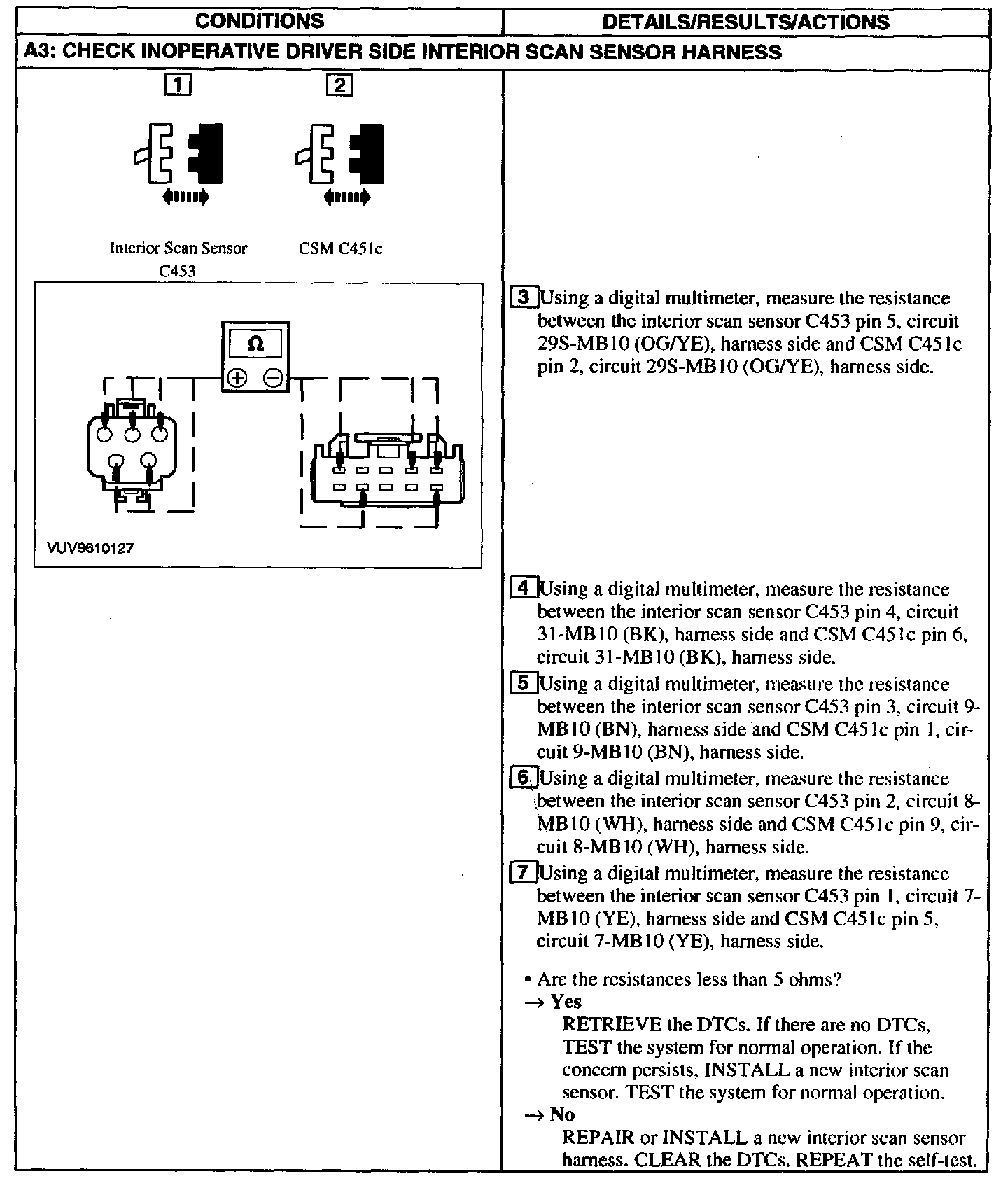

A3:

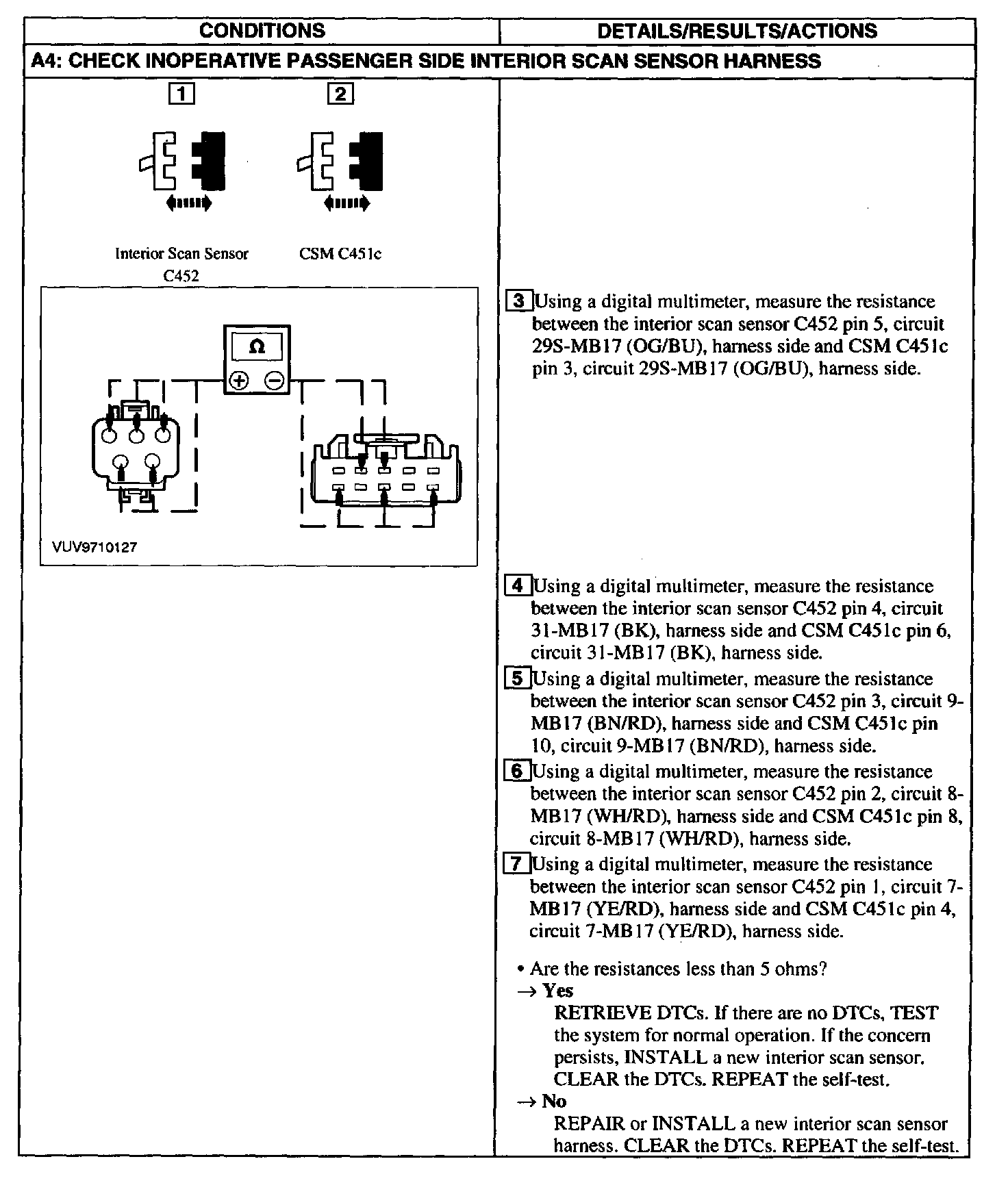

A4:

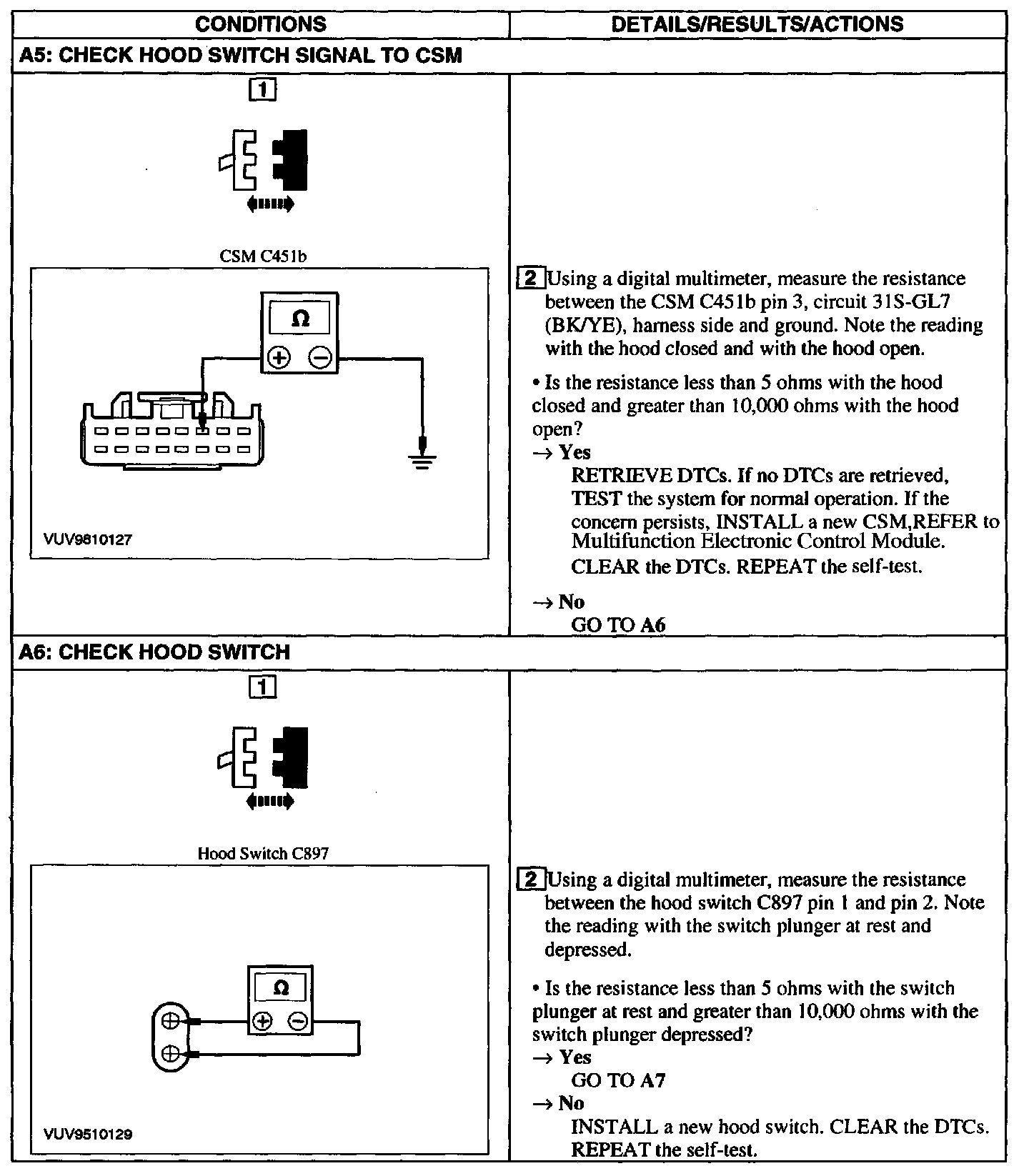

A5 - A6:

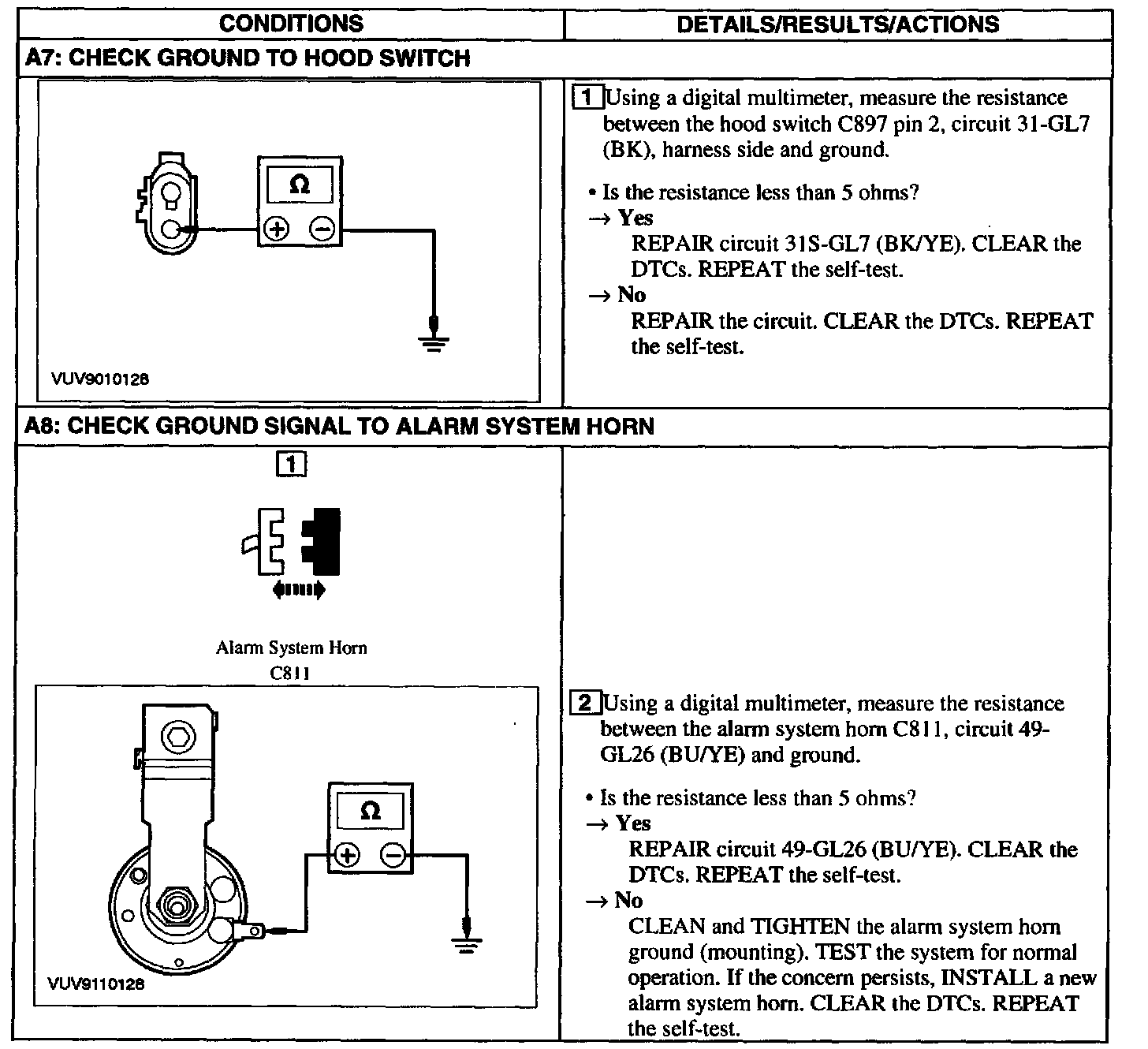

A7 - A8:

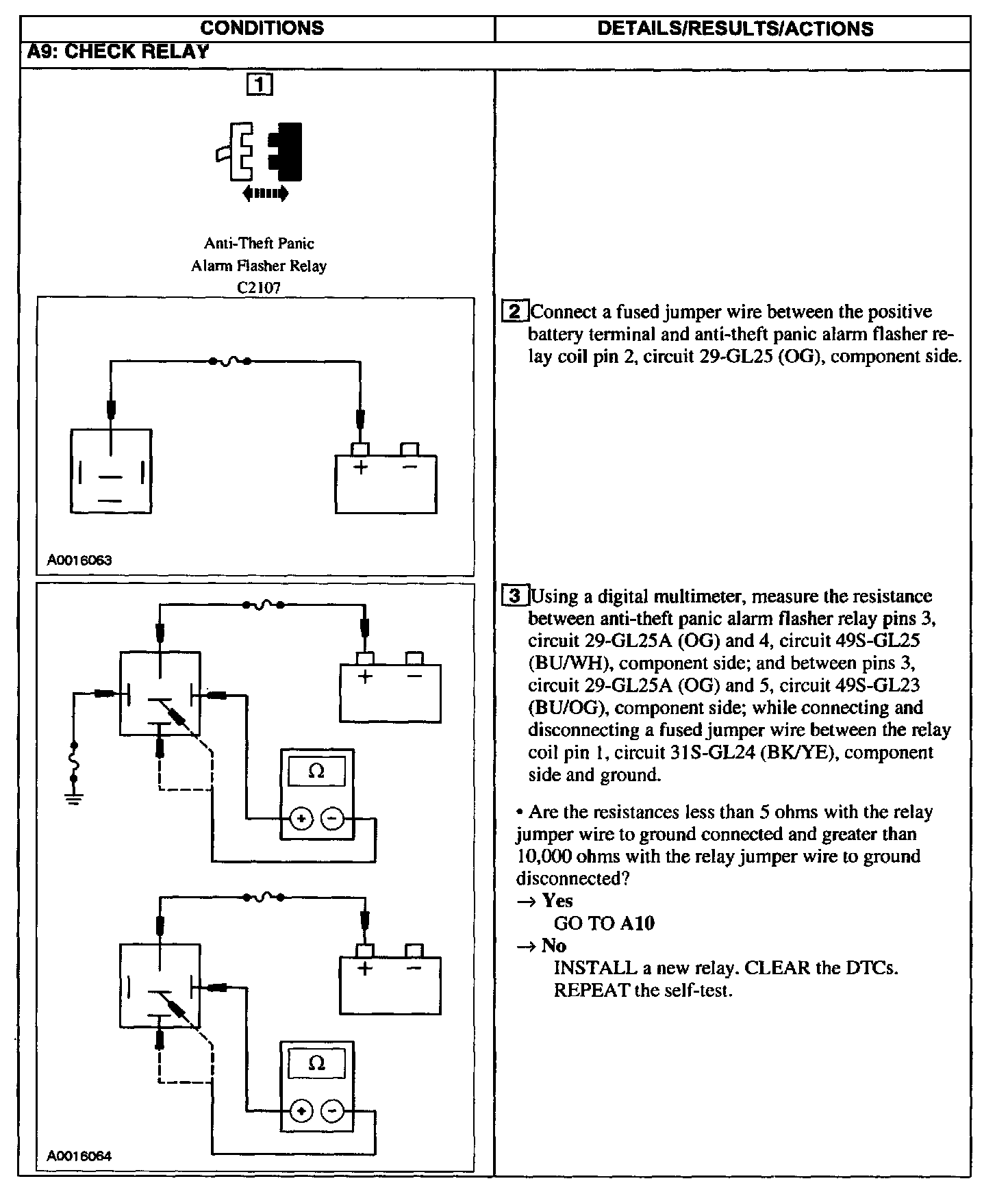

A9:

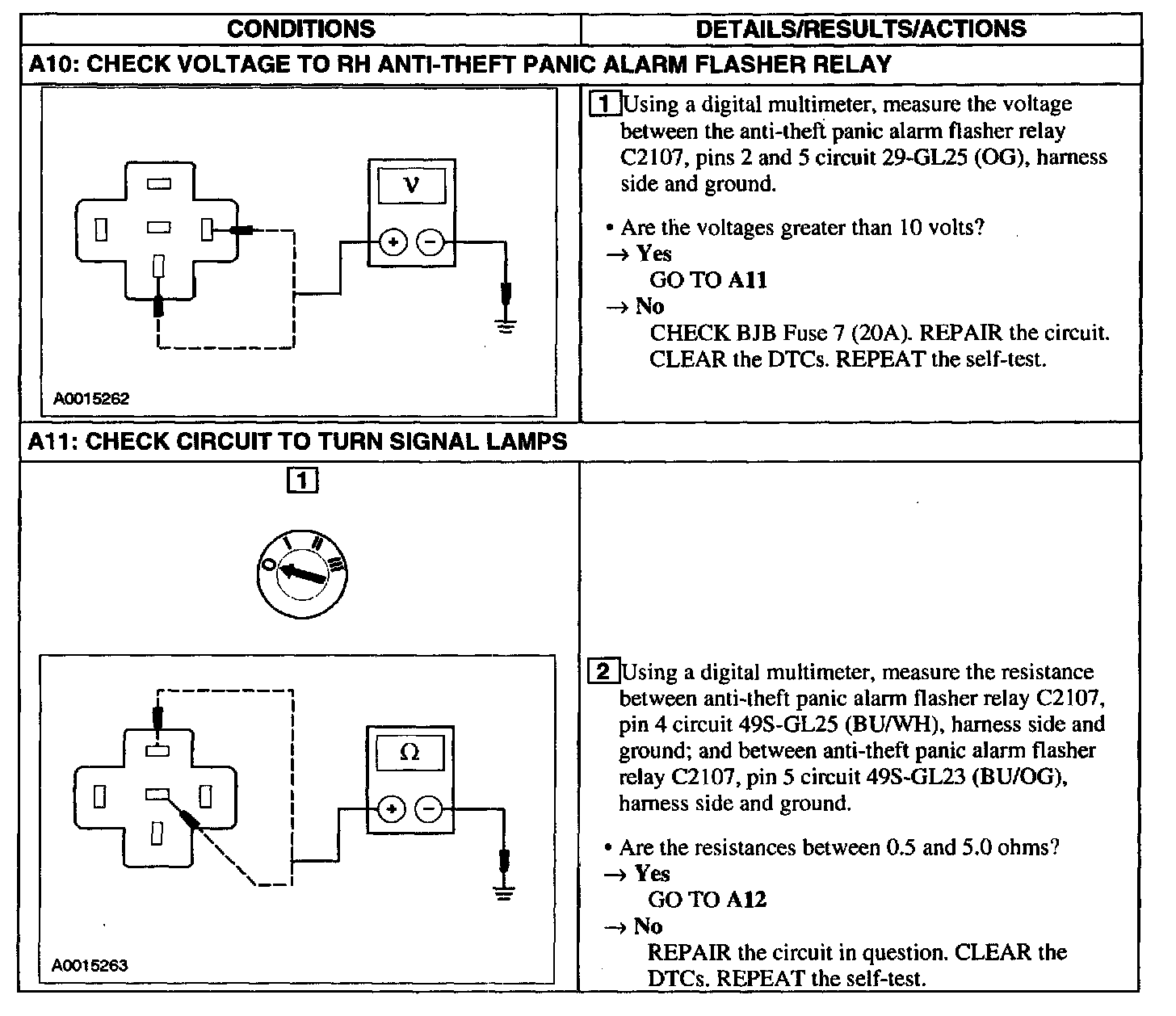

A10 - A11:

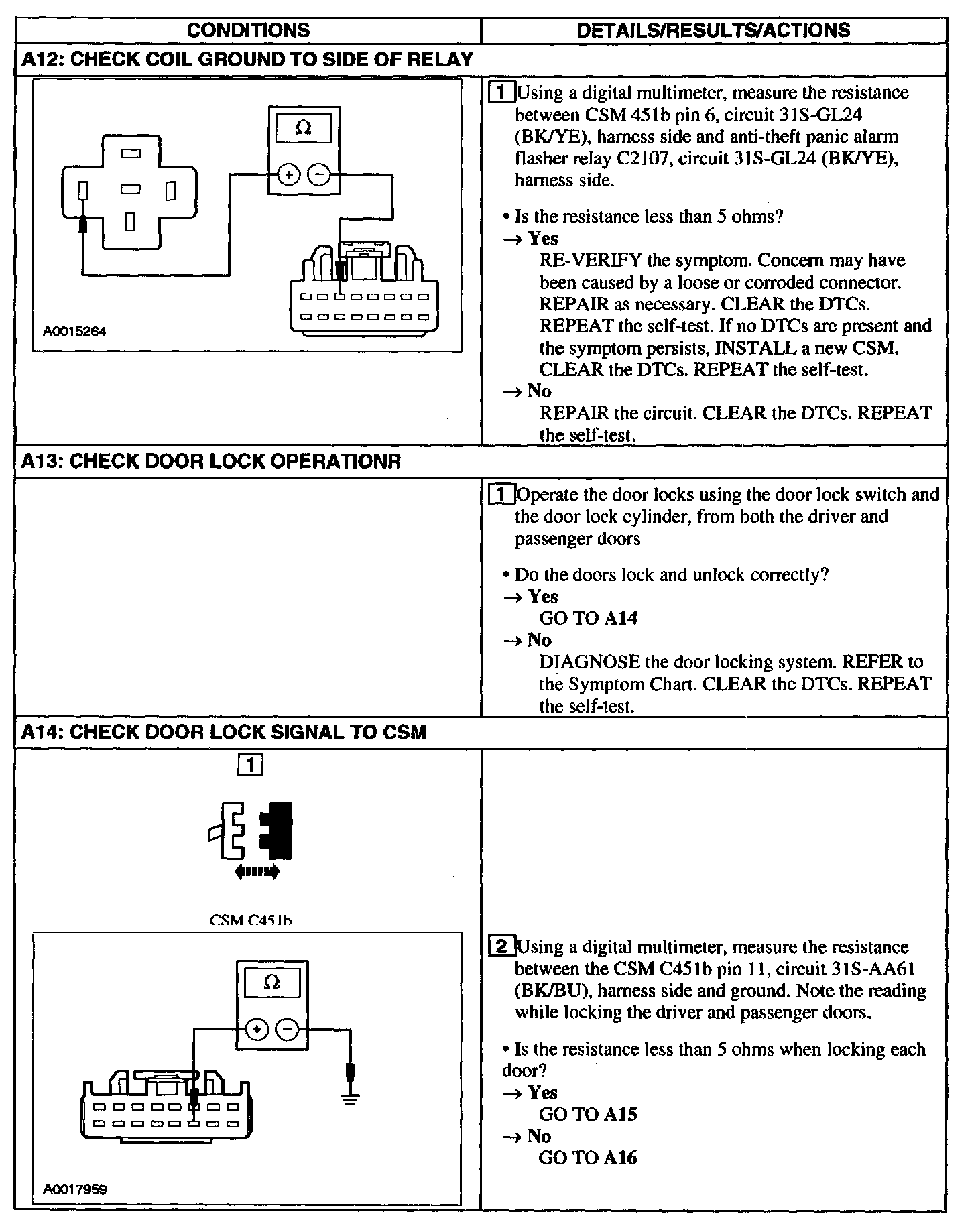

A12 - A14:

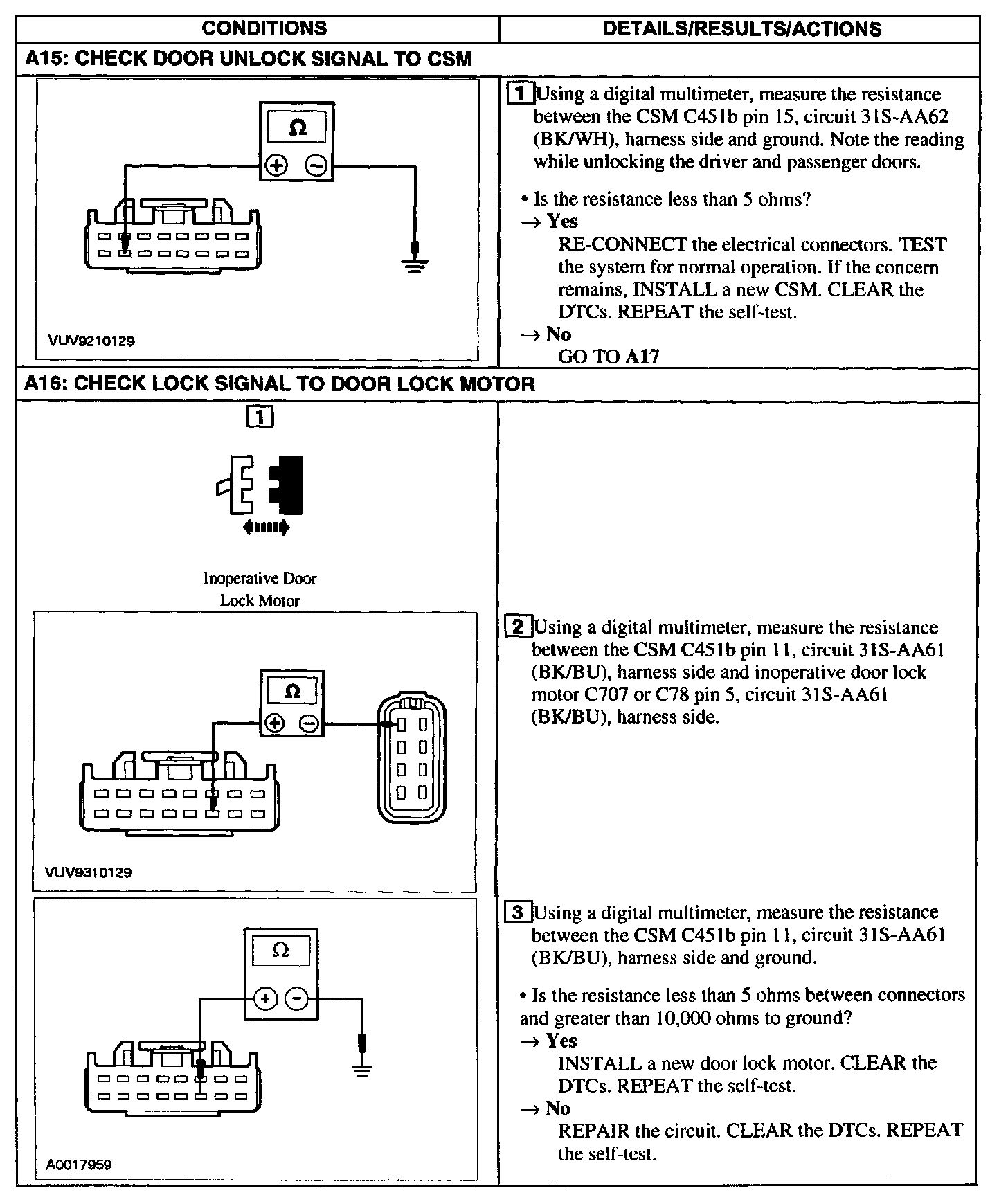

A15 - A16:

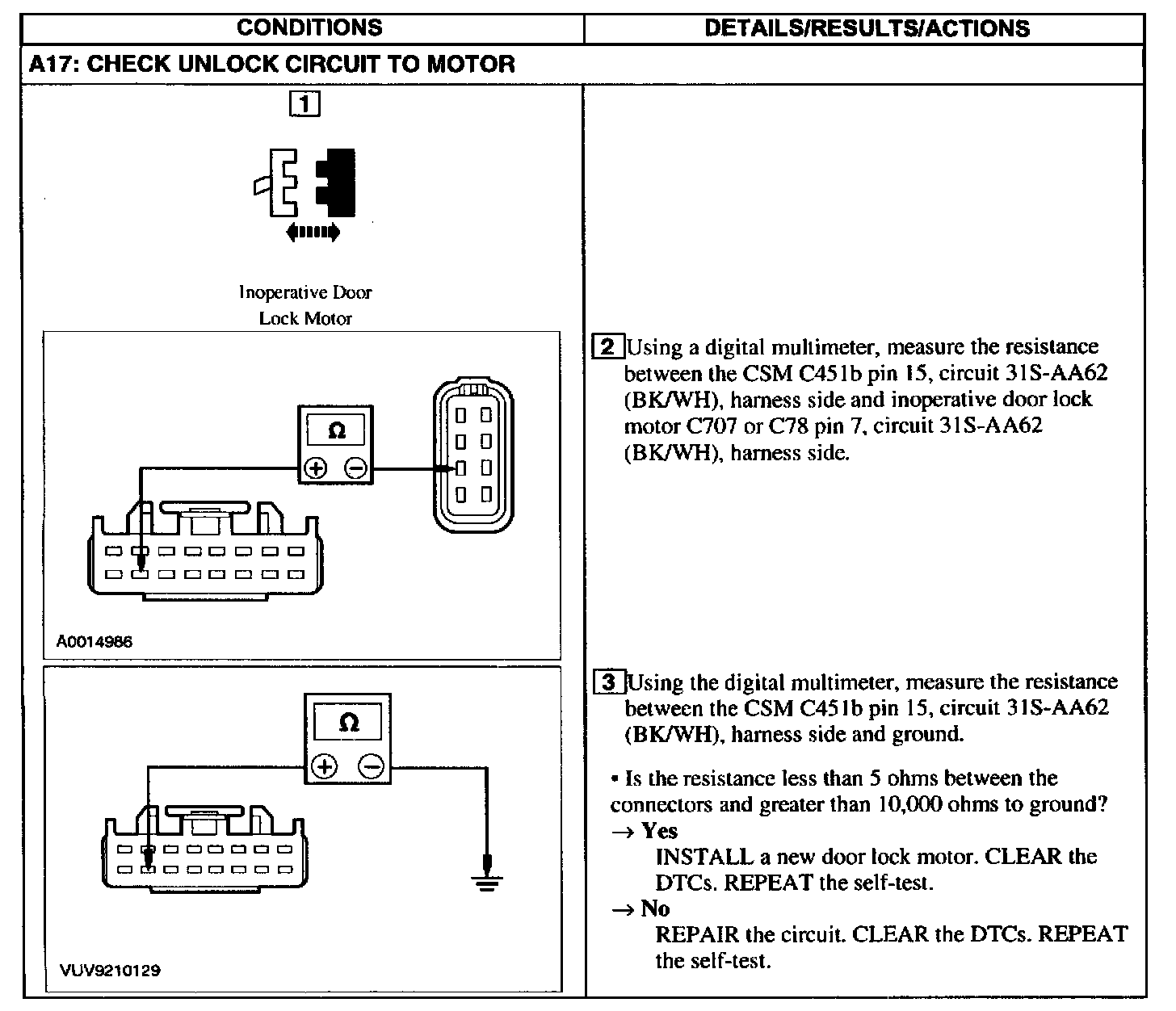

A17:

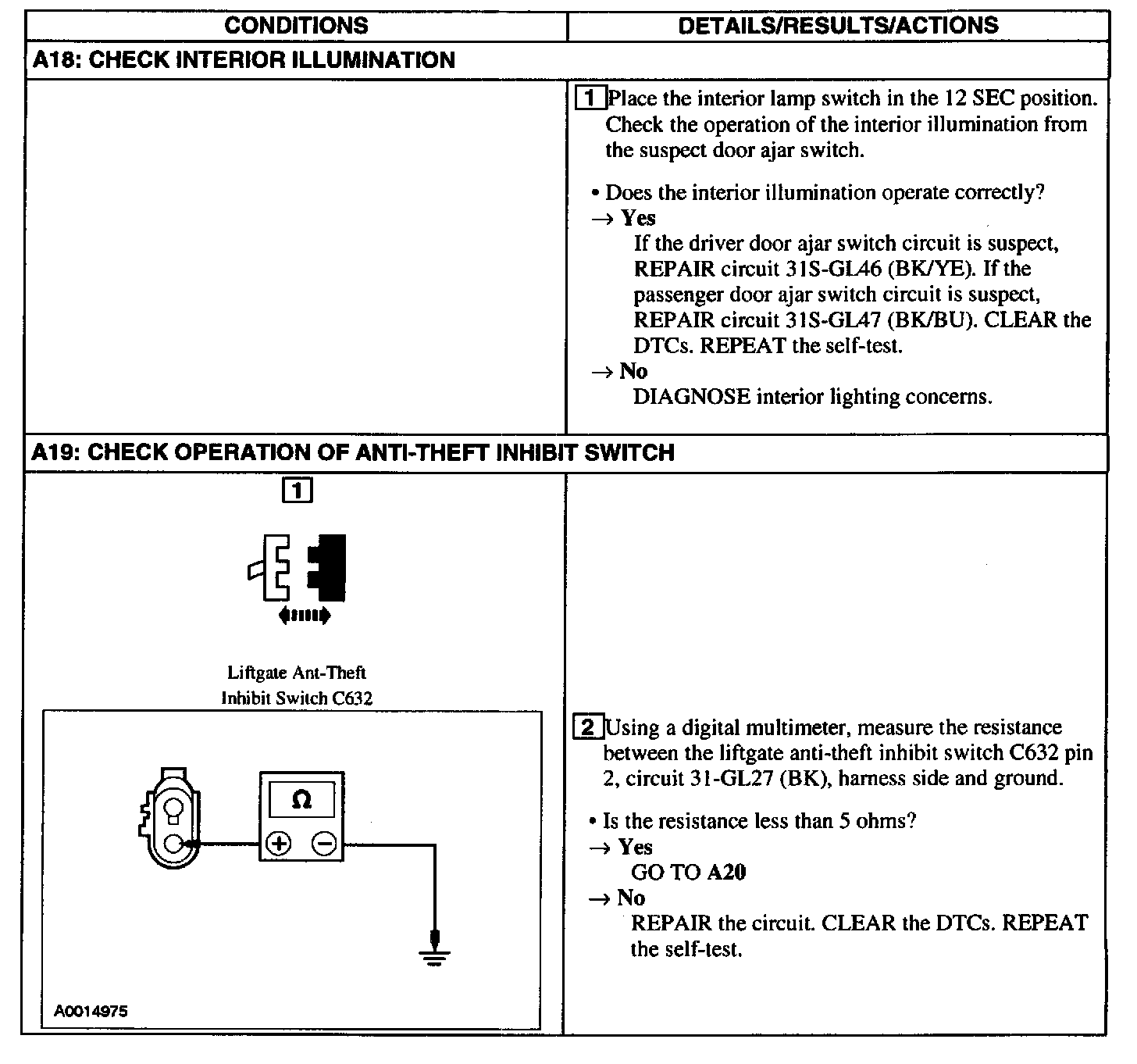

A18 - A19:

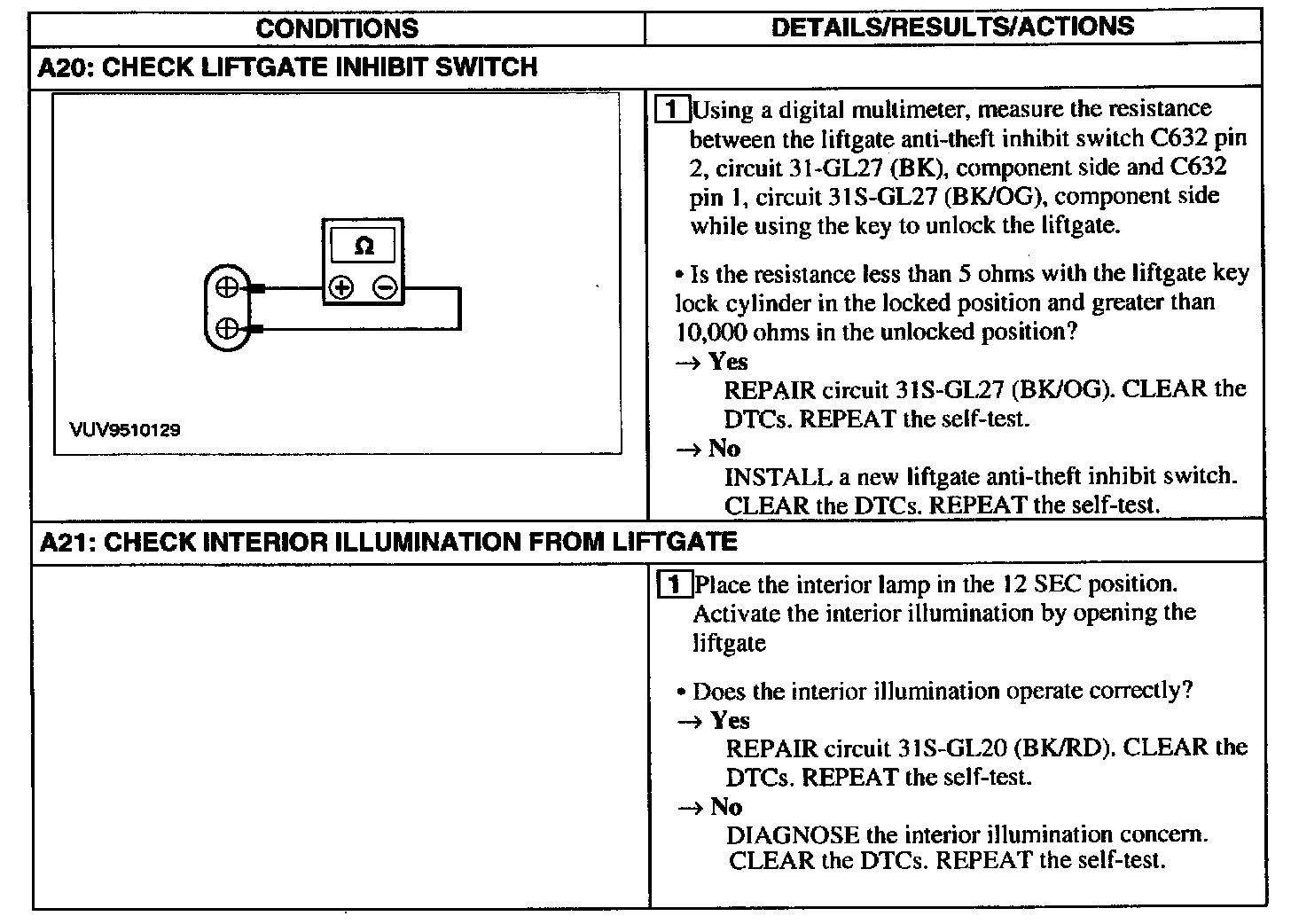

A20 - A21:
