F: Turbine/Transmission Shaft Speed (TSS) Sensor

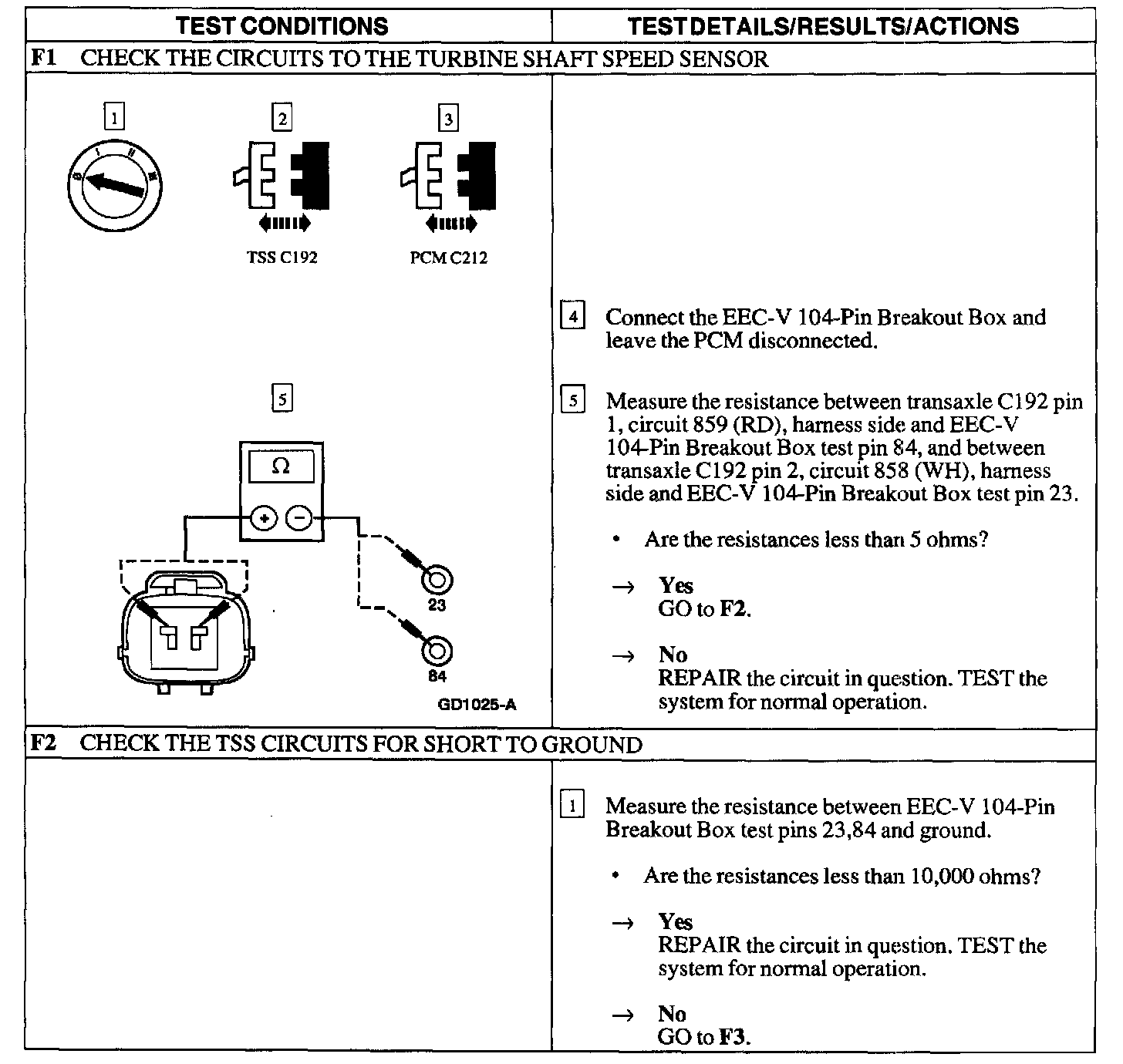

F1 - F2:

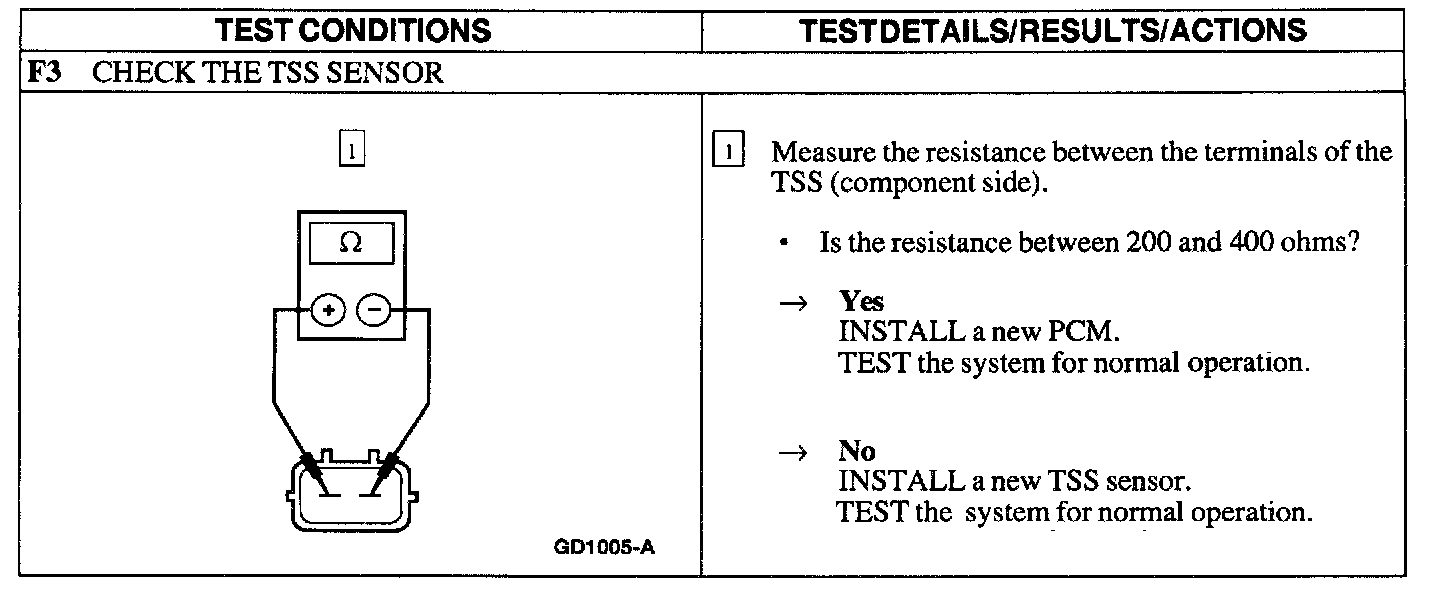

F3:





Pinpoint Test F: TURBINE SHAFT SPEED (TSS) SENSOR
