B: Transmission Fluid/Oil Temperature (TFT/TOT) Sensor

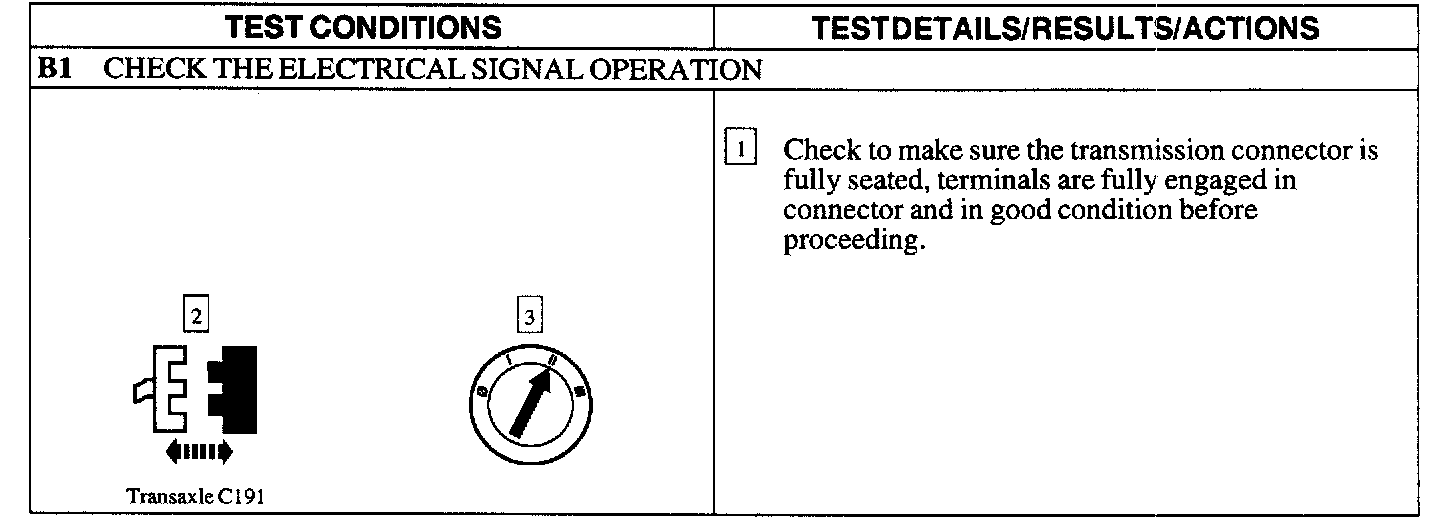

B1:

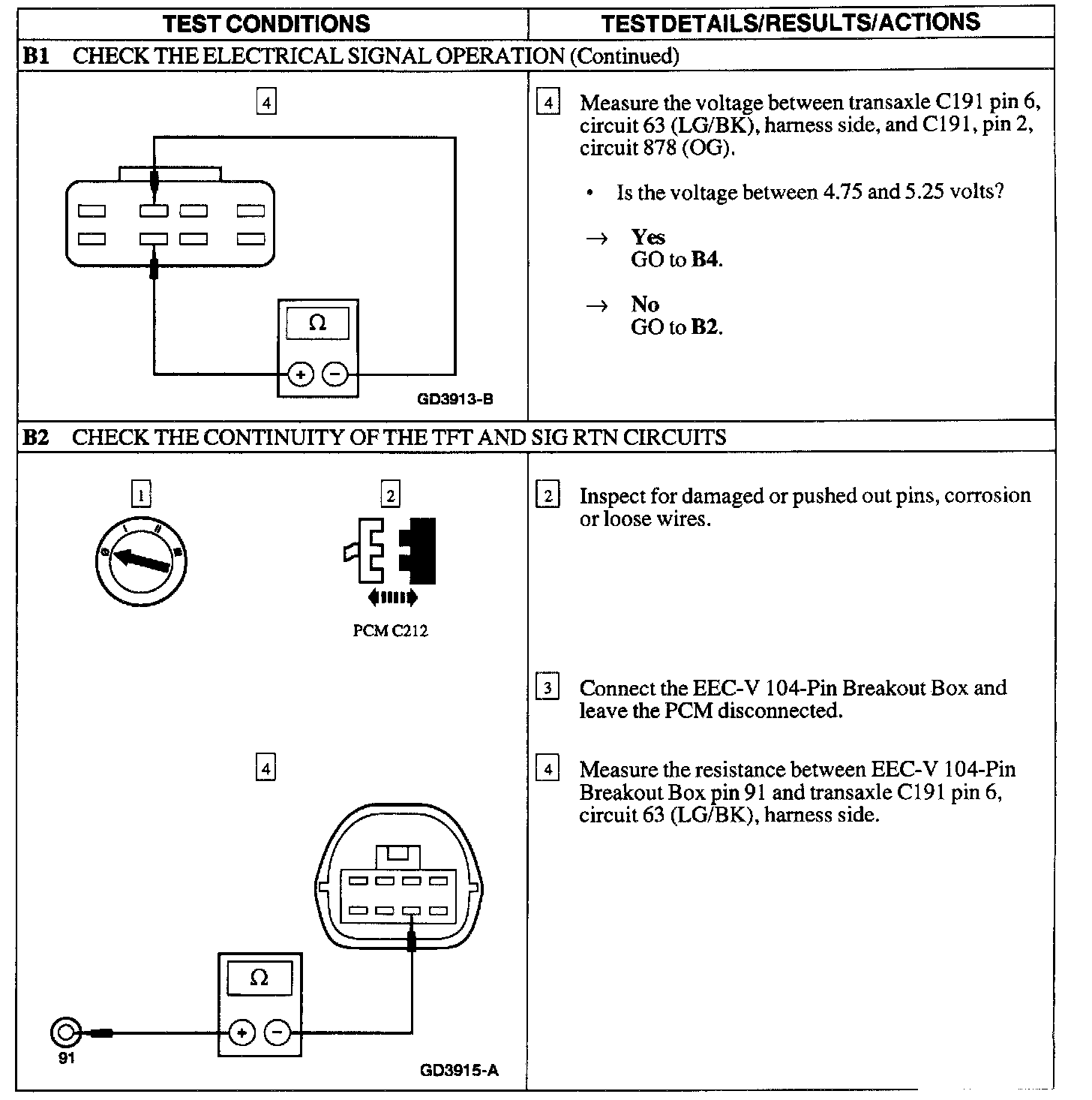

B1 - B2:

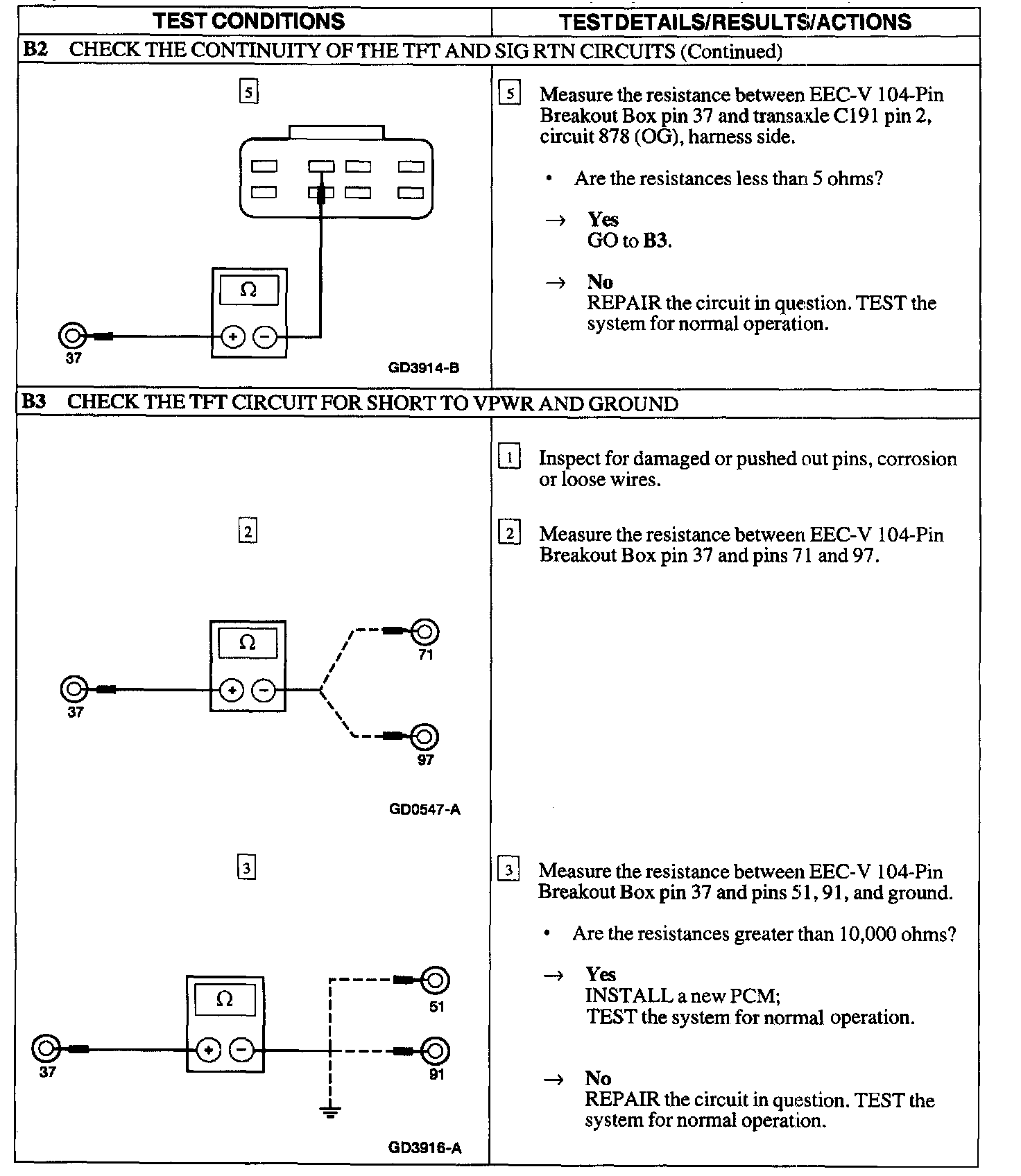

B2 - B3:

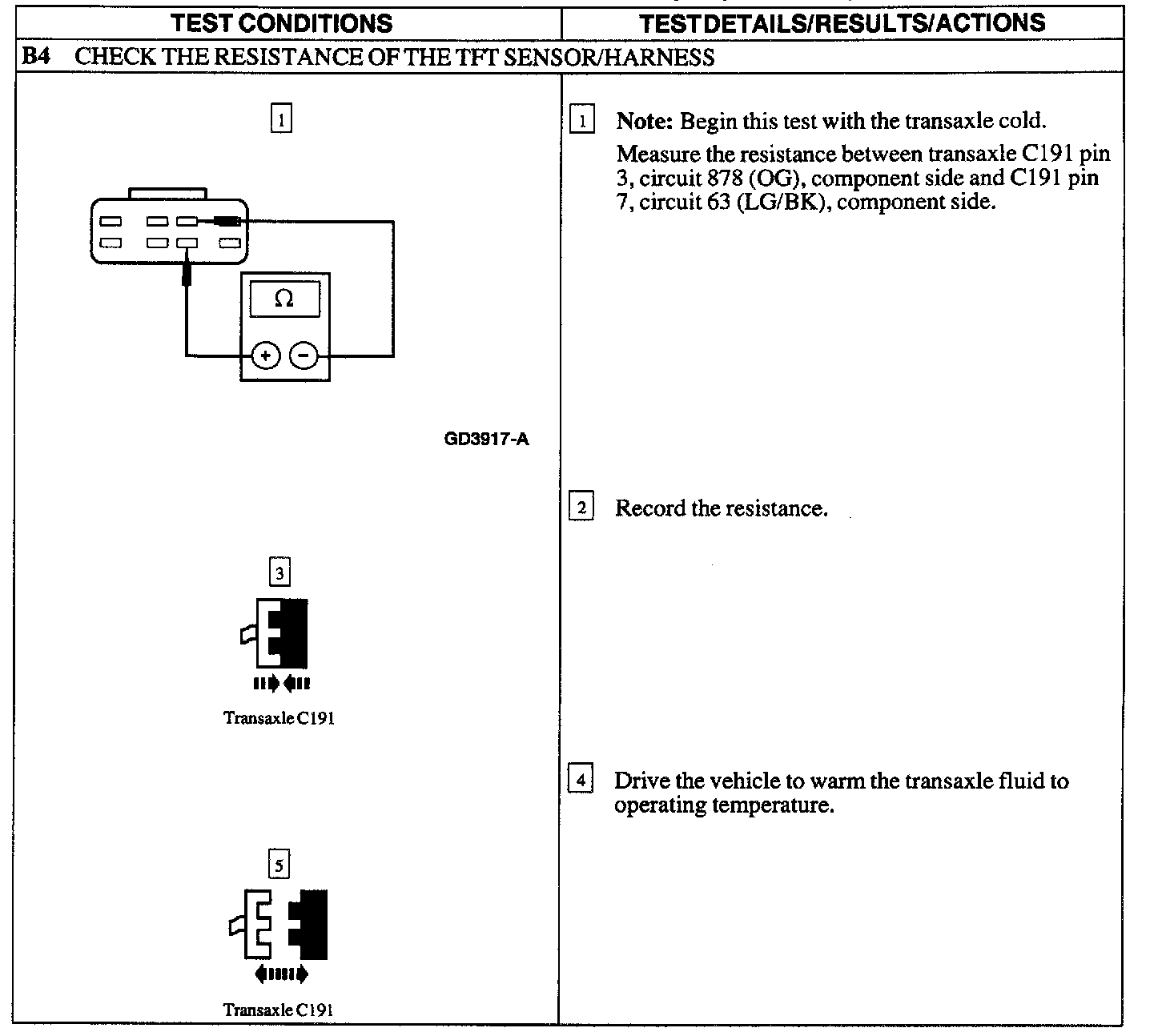

B4:

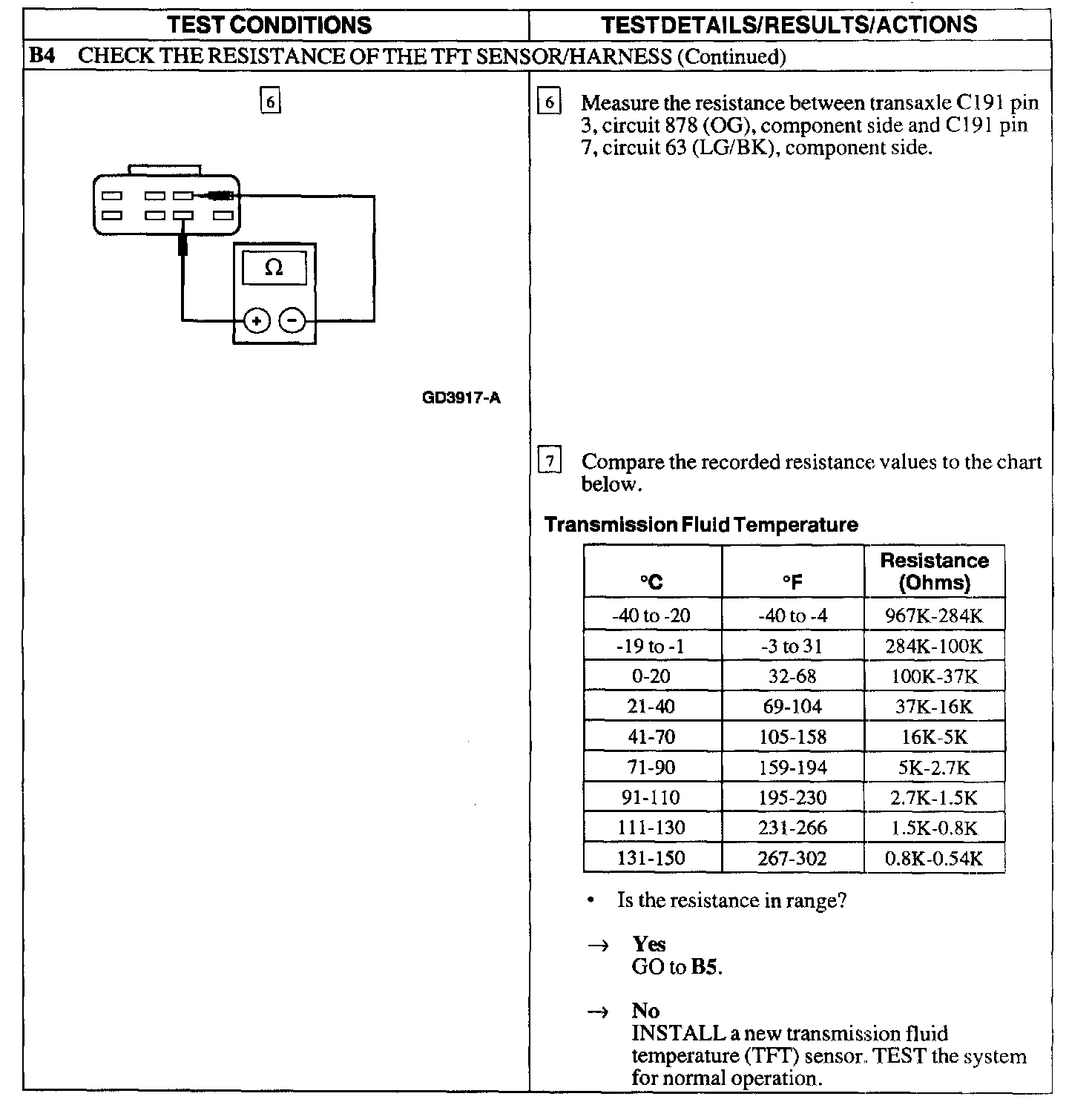

B4:

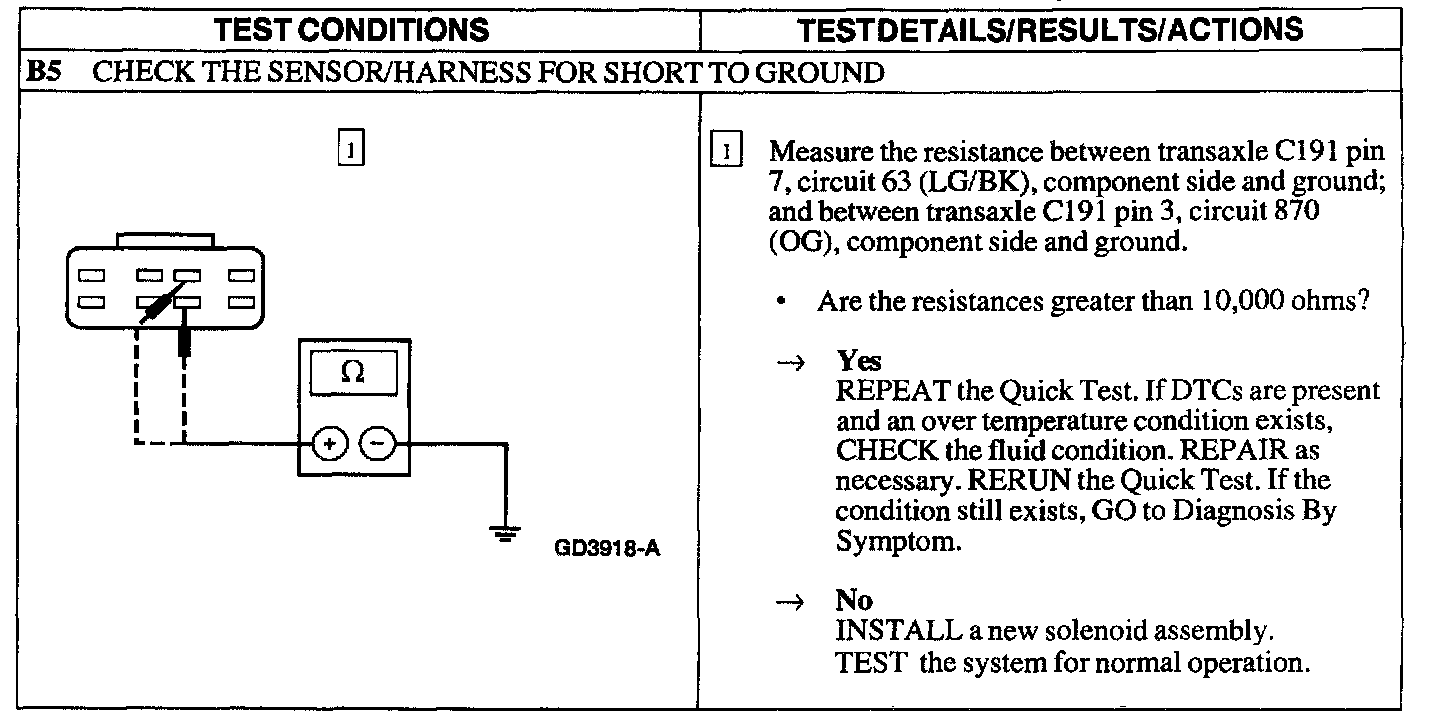

B5:





Pinpoint Test B: TRANSMISSION FLUID TEMPERATURE (TFT) SENSOR
