Differential Assembly: Service and Repair

Removal

1. Remove the transmission case plug and washer and drain the transmission fluid. Discard the washer.
2. Remove the halfshafts.

3. Carefully pry the differential seal from the transmission case.

Installation

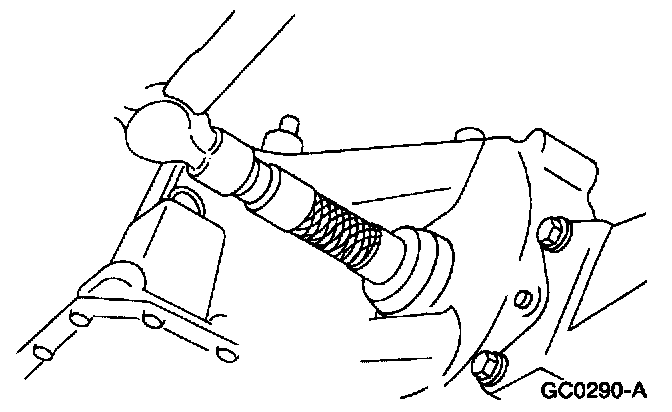

1. Use Differential Seal Replacer to tap in the new differential oil seals.
2. Install the halfshafts.

3. Install the transmission case drain plug with a new washer.
4. Add the specified transmission fluid and inspect for leaks.
