Home >> Mercury >> 1999 >> Tracer L4-122 2.0L SOHC VIN P SFI >> Repair and Diagnosis >> Transmission and Drivetrain >> Clutch >> Testing and Inspection >> Pinpoint Tests >> C: Clutch Drag

C: Clutch Drag

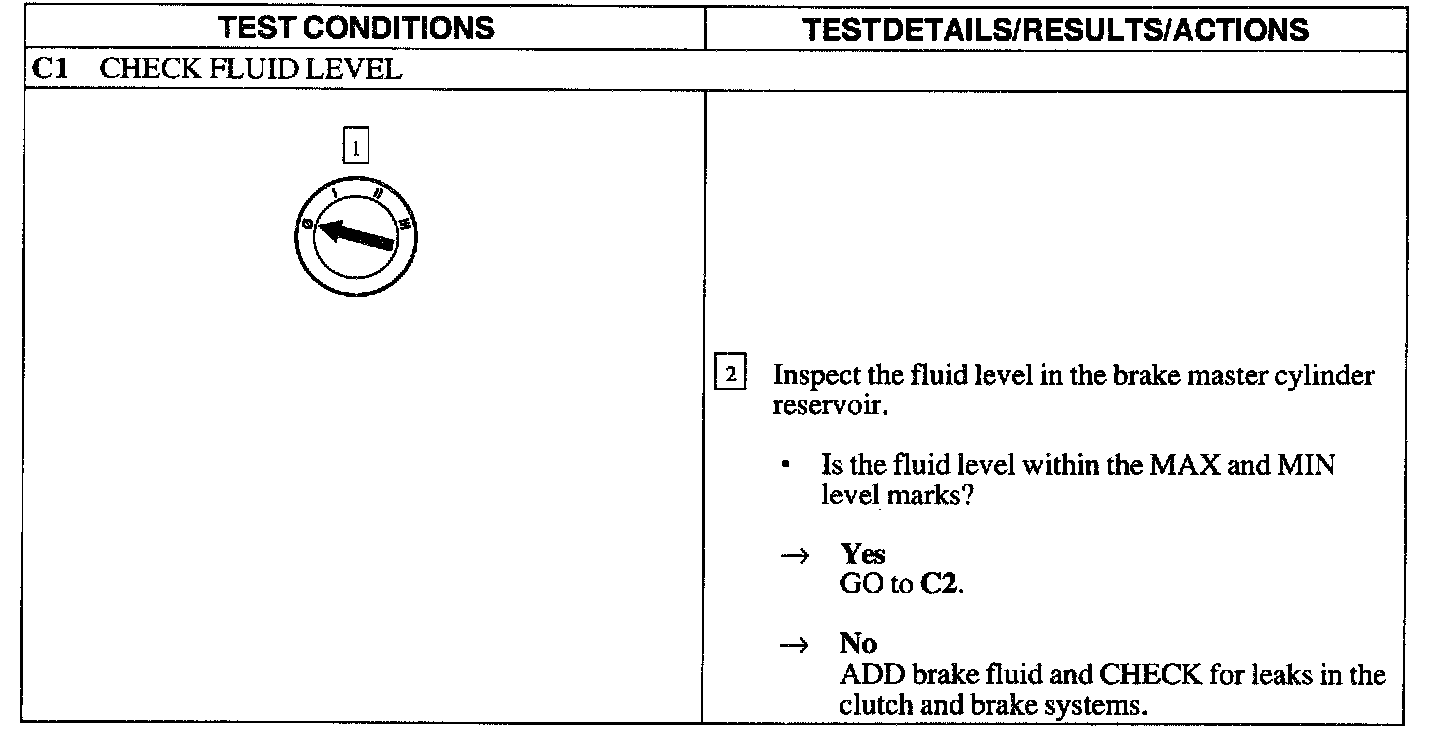

C1:

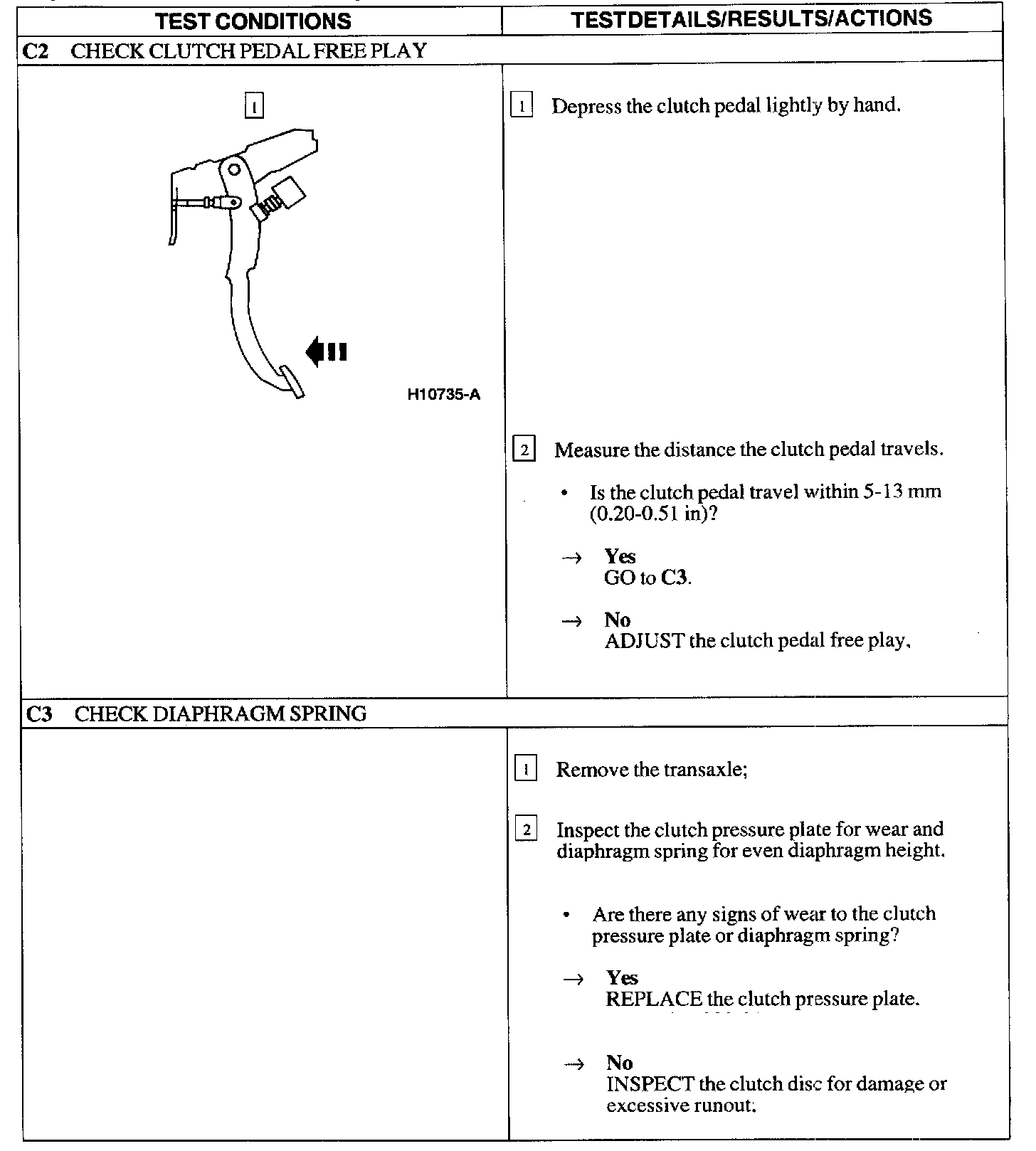

C2 - C3:





Pinpoint Test C: CLUTCH DRAG
