Output Gear

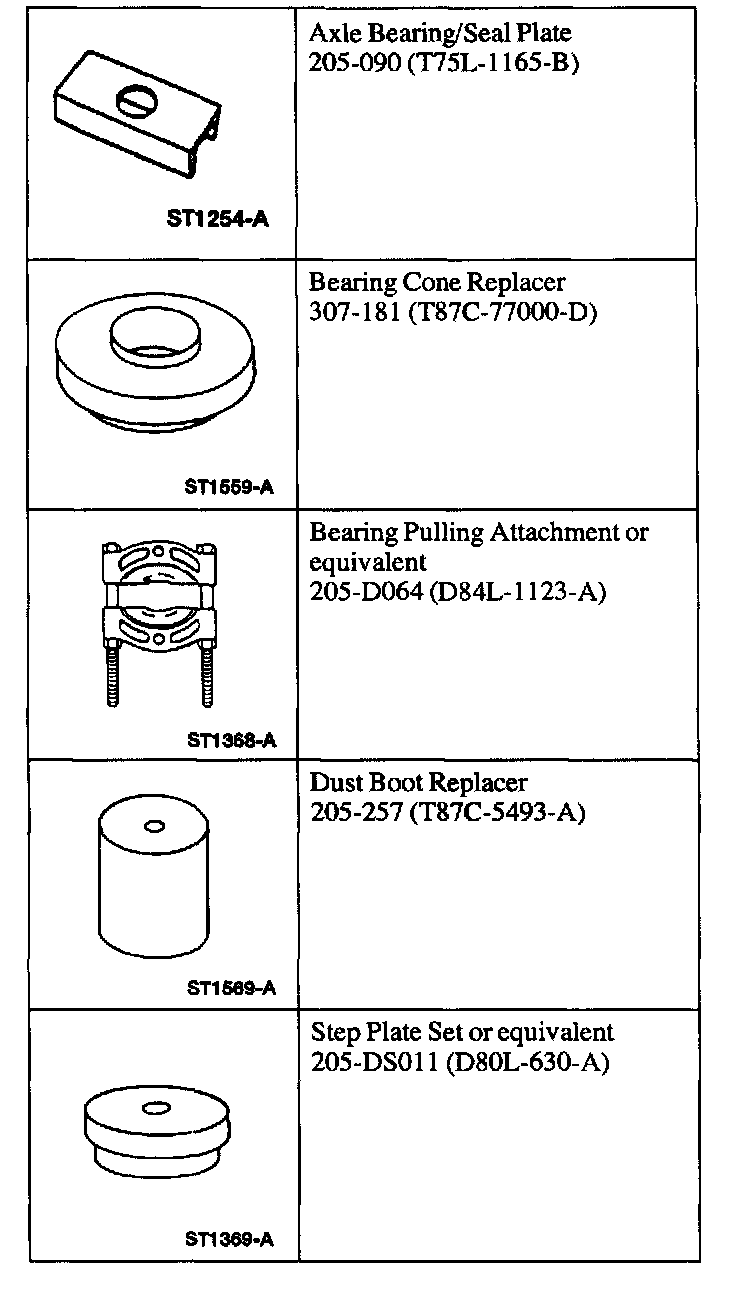

Special Tools:

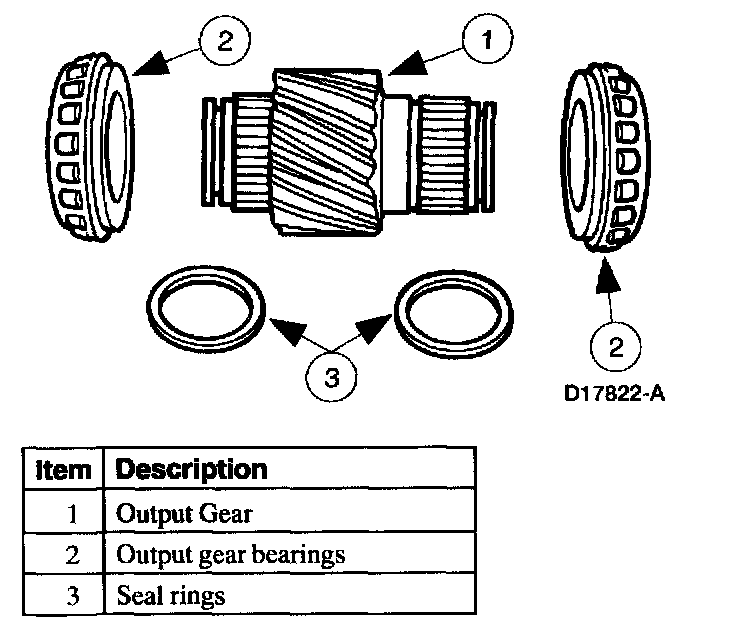

Disassembly

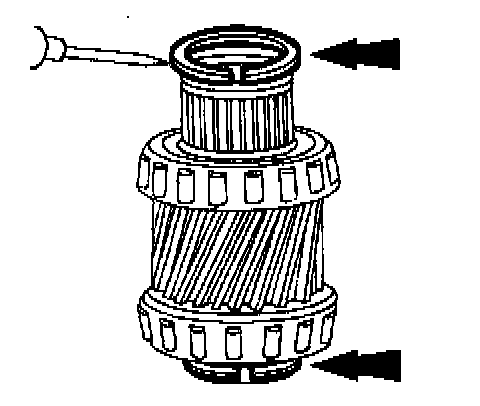

1. Remove the seal rings.

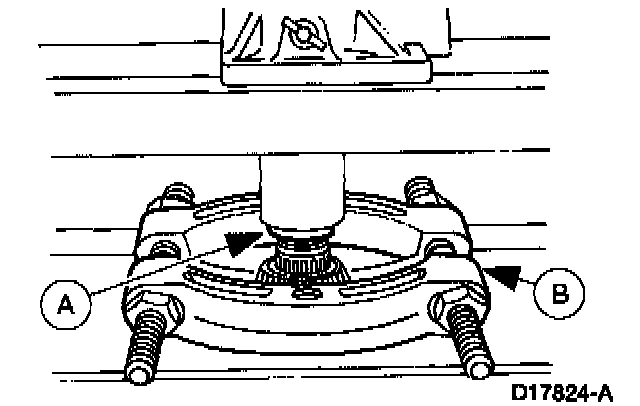

2. Use (A) Step Plate and (B) Bearing Pulling Attachment to press off both output gear bearings.

Assembly
1. Clean the components with a suitable solvent and use compressed air to dry all parts. Perform the following before assembly:
- Inspect the output gear for damaged or excessively worn teeth.
- Inspect the output gear splines for damage or wear.

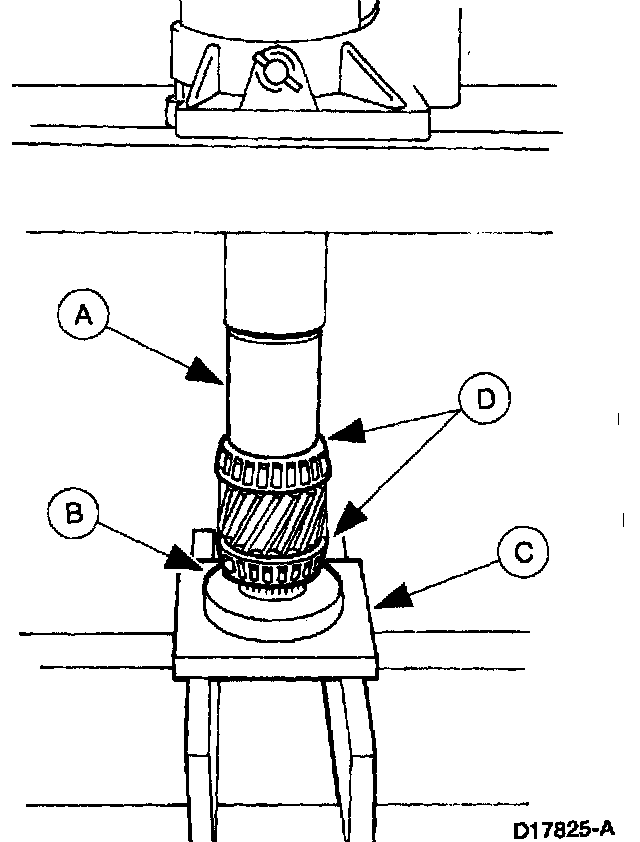

2. Use (A) Dust Boot Replacer, (B) Bearing Cone Replacer, and (C) Axle Bearing/Seal Plate to press the (D) output gear bearings onto the output gear.

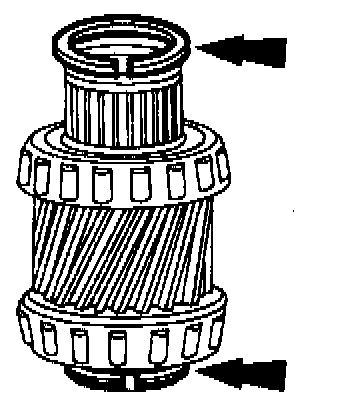

3. Apply Motorcraft MERCON(R) Multi-Purpose Automatic Transmission Fluid XT-2-QDX or equivalent meeting Ford specification MERCON(R) to the new seal rings and ins tall them on the output gear. MERCON(R) automatic Transmission Fluid is being replaced by MERCON(R) V as a service fluid, as per TSB 06-14-4.

- Seal ring inner diameter: 27.6 mm (1.087 inch).
