Power Steering Pump Pulley

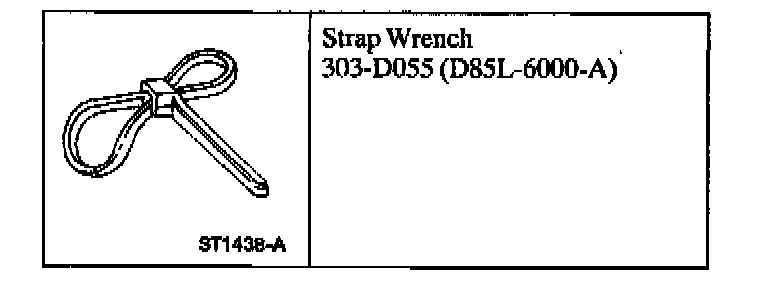

Special Tools:

REMOVAL





1. Disconnect the battery ground cable.
2. Remove the power steering pump reservoir.

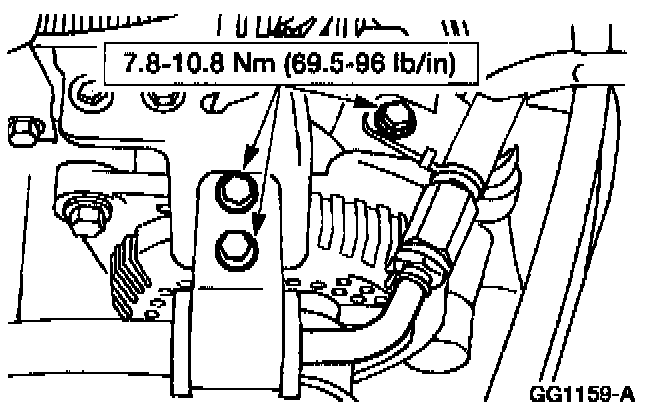

3. Remove the (A) bolts and position the (B) power steering pressure hose aside.

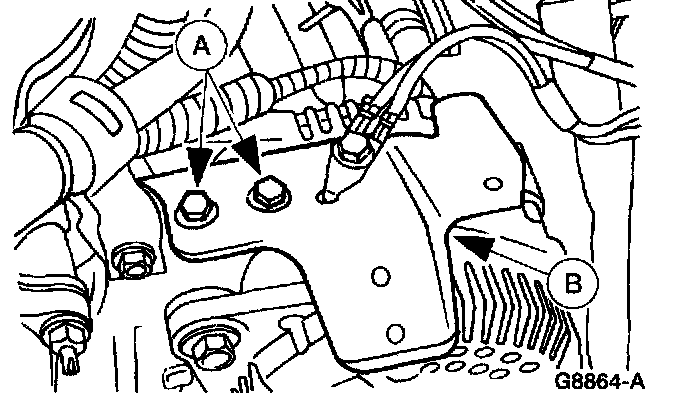

4. Remove the (A) bolts and position the (B) power steering pressure hose support bracket aside.





5. Rotate the (A) drive belt tensioner to release the tension and remove the (B) drive belt.

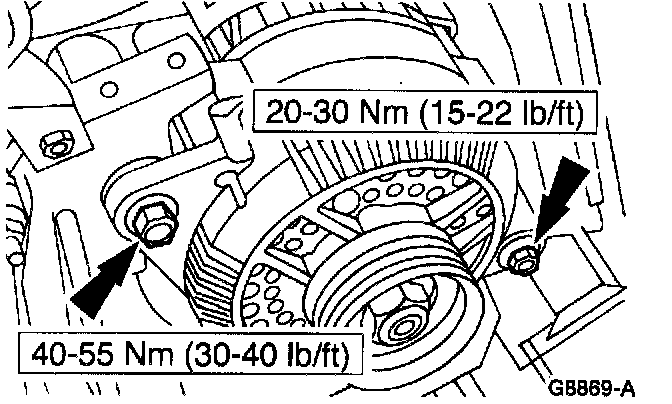

6. Remove the (A) generator bolts and position the (B) Generator (GEN) aside.

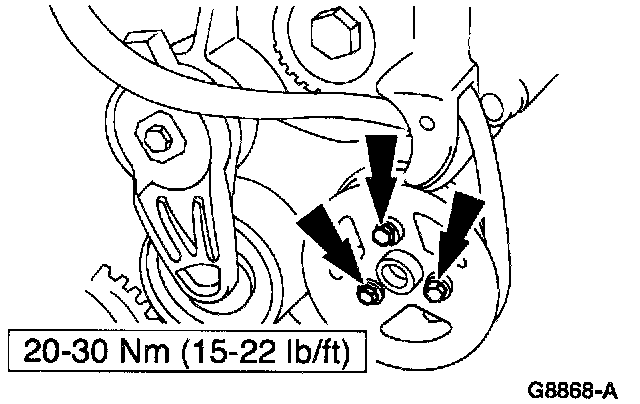

7. Use (A) Strap Wrench to remove the (B) pulley bolts.
8. Remove the power steering pump pulley.

INSTALLATION











1. NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mi) or more to relearn the strategy.

To install, reverse the removal procedure.
