Multi-Function Switch Housing

REMOVAL
1. Remove the air bag sliding contact.





2. Remove the screws and the upper and lower steering column shrouds.

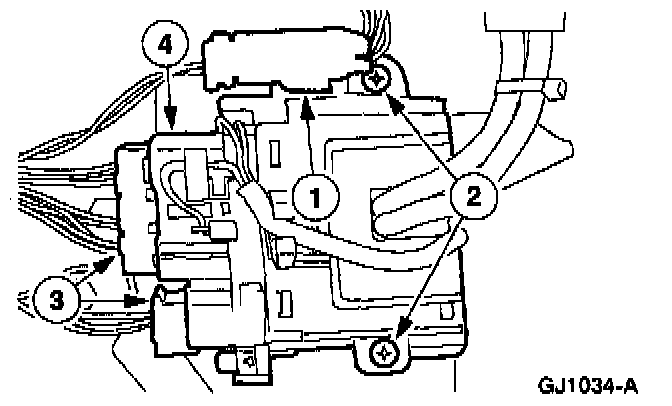

3. Remove the turn signal switch.
1. Detach the electrical connector from the turn signal switch.
2. Remove the screws.
3. Disconnect the electrical connectors.
4. Remove the turn signal switch.

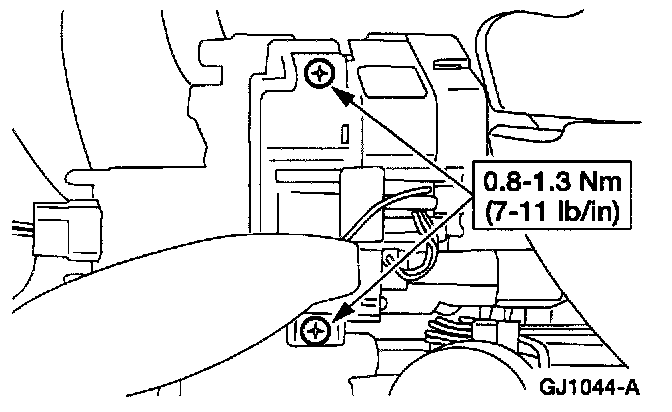

4. Remove the windshield wiper/washer switch.
1. Remove the screws.
2. Disconnect the electrical connectors.
3. Remove the windshield wiper/washer switch.

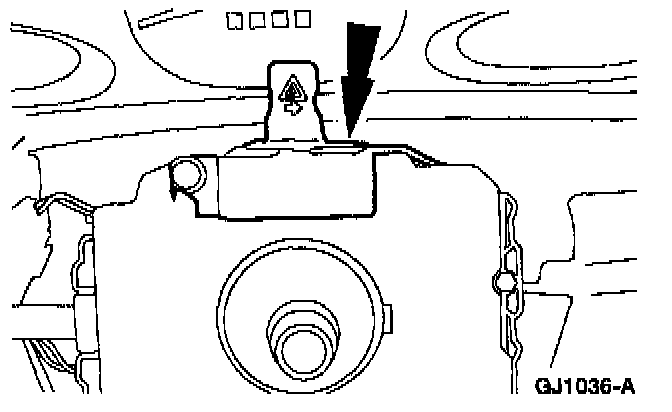

5. Detach the hazard/flasher switch from the multi-function switch housing.





6. Disconnect the electrical connector.





7. Remove the multi-function switch housing.
1. Remove the screws.
2. Remove the multi-function switch housing.

INSTALLATION











1. NOTE: After the multi-function switch housing is installed, check the sliding contact adjustment.

To install, reverse the removal procedure.
