Sunroof / Moonroof Switch: Testing and Inspection

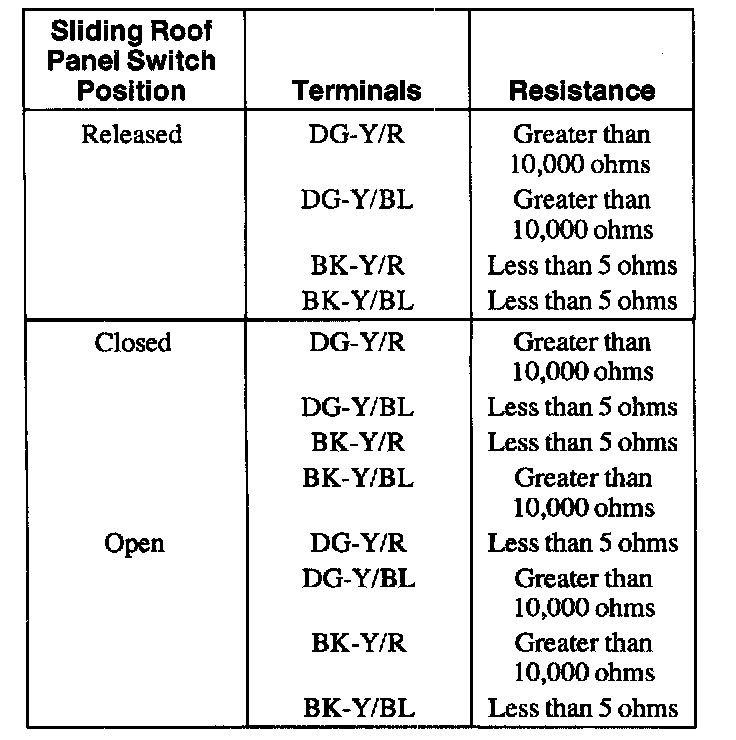

Test the sliding roof panel switch by measuring the resistance between the terminals on the sliding roof panel switch with the sliding roof panel switch in the positions as indicated in the illustration.

If the resistances are not correct, replace the roof console. Otherwise, return to the pinpoint test. Pinpoint Tests
