Component Tests

1. Key OFF.
2. Remove and disconnect the outside rear view mirror control.

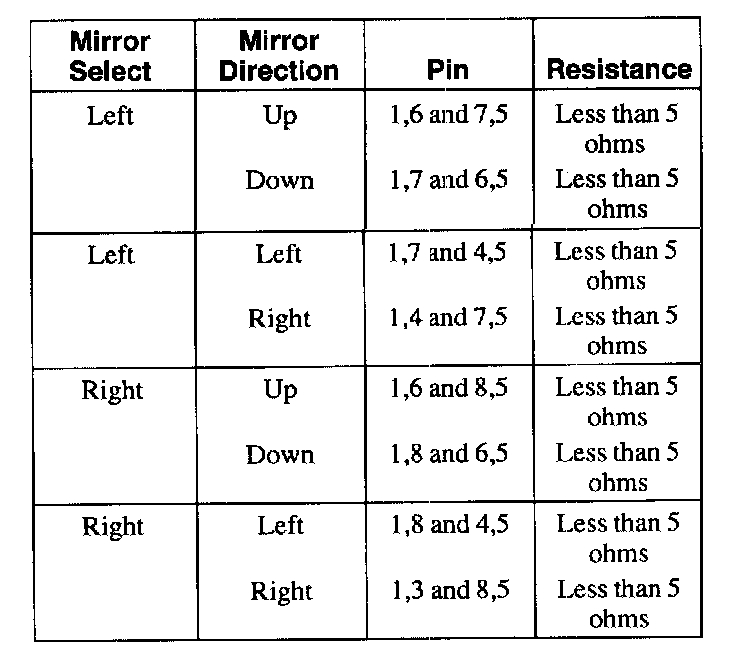

3. Measure the resistance between the terminal pins of the outside rear view mirror control.







4. If the outside rear view mirror control fails any of the above tests, replace it. Otherwise, return to the pinpoint tests. Pinpoint Tests
