Seat Belt Height Adjuster

Seat Belt Bolt Bit:

Special Service Tool(s)

REMOVAL







1. Remove the safety belt upper guide.
1 Open the front safety belt cover.
2 Remove the bolt.
3 Remove the safety belt upper guide.

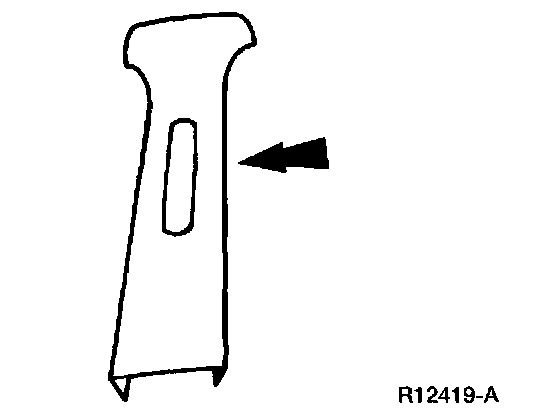

2. Remove the center body pillar inside upper finish panel.

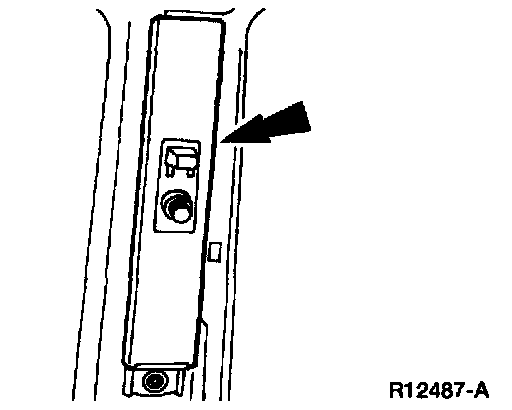

3. Remove the height adjuster cover.

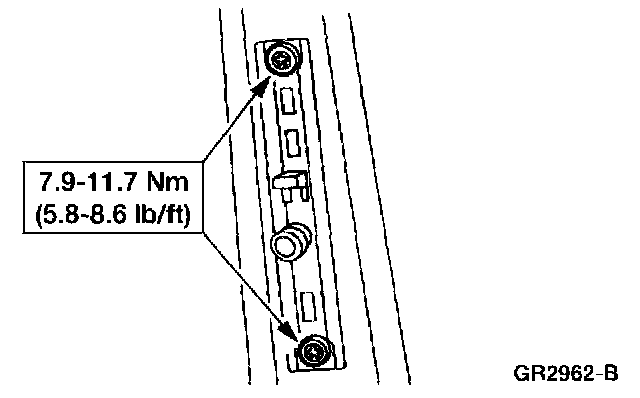

4. Use Safety Belt Bolt Bit to remove the shoulder safety belt height adjuster bolts.










INSTALLATION
1. To install, reverse the removal procedure.
