Rear

Seat Belt Bolt Bit:

Special Service Tool(s)

REMOVAL

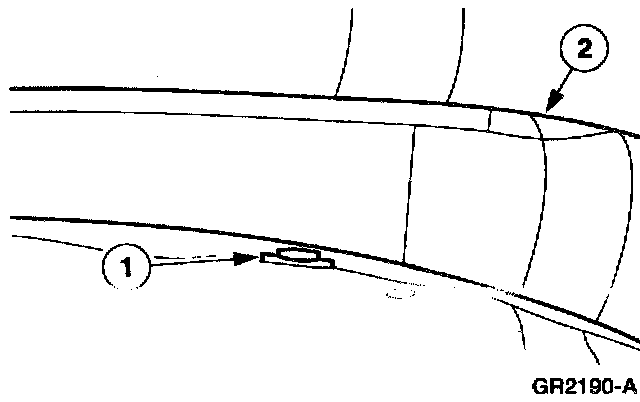

1. Remove the rear seat bottom.
1 Release the two spring clips.
2 Remove the rear seat bottom.

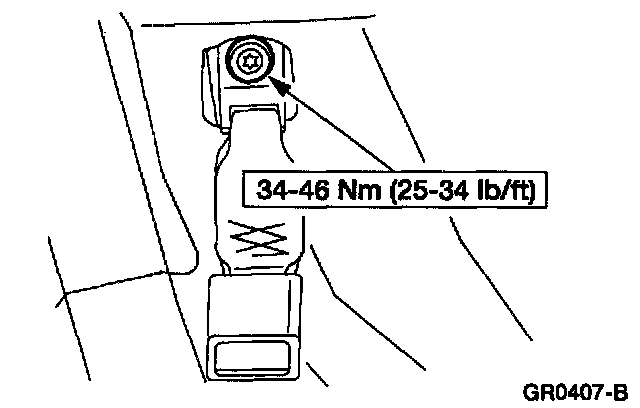

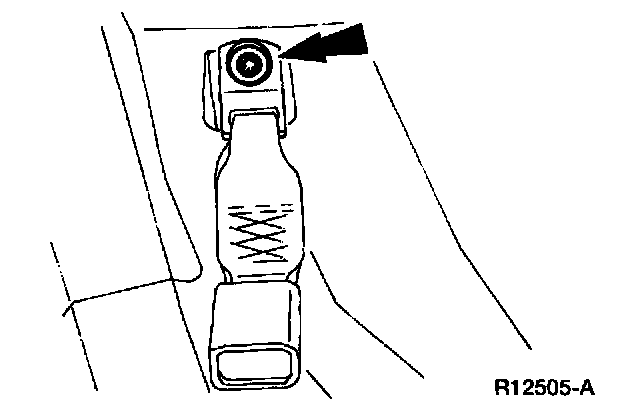

2. Use Safety Belt Bolt Bit to remove the rear seat safety belt buckle bolt and the rear safety belt buckle.







INSTALLATION
1. To install, reverse the removal procedure.
