Sedan

Seat Belt Bolt Bit:

Special Service Tool(s)

REMOVAL
1. Remove the rear side seat.
2. Remove the rear hi-mount lamp.
3. Place the rear seat back in the down position.







4. Remove the pushpins from the front of the package tray trim panel.

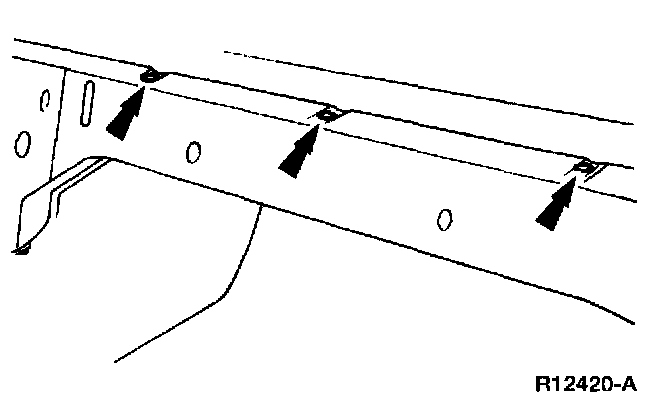

5. Slide the package tray trim panel forward to disengage the three clips at the rear edge.

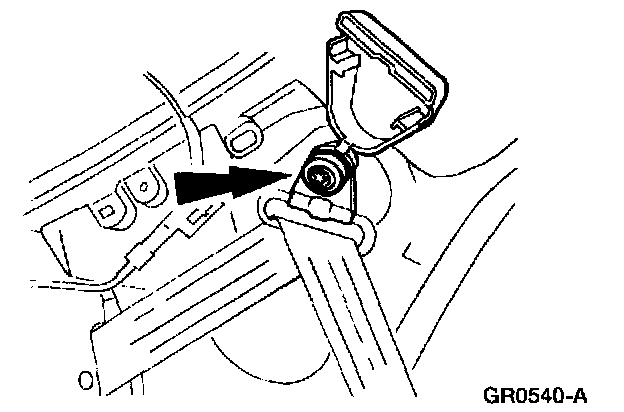

6. Use Safety Belt Bolt Bit to remove the rear safety belt lower anchor bolt.







7. Remove the pushpin and the panel and pull the rear safety belt through the slot.







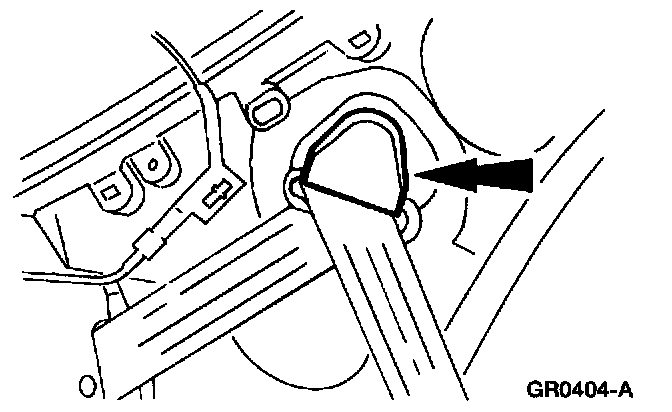

8. Open the upper safety belt guide cover.

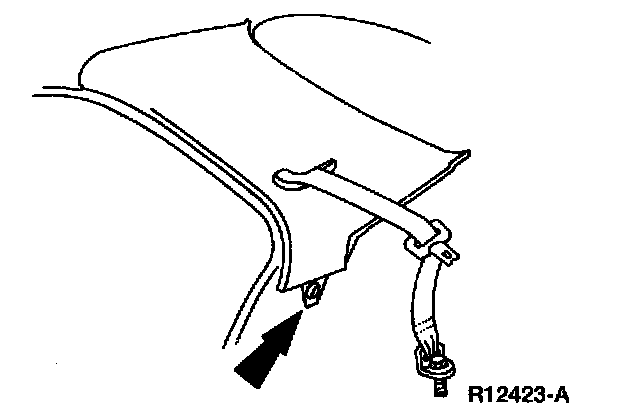

9. Use Safety Belt Bolt Bit to remove the rear safety belt upper guide bolt.
10. Open the luggage compartment door and position the luggage compartment carpet away from the rear safety belt retractor.

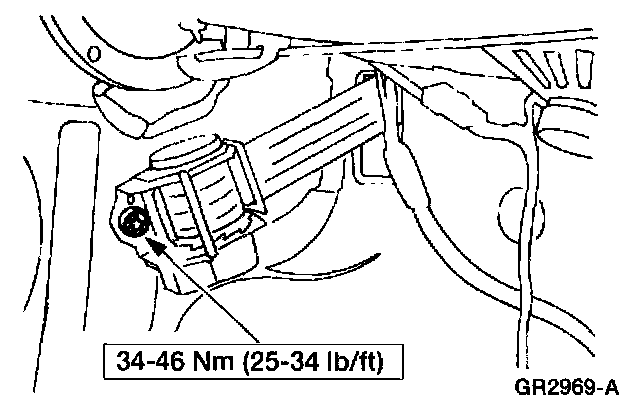

11. Use Safety Belt Bolt Bit to remove the rear safety belt retractor bolt and pull the rear safety belt tongue and anchor out of the passenger compartment into the luggage compartment.














INSTALLATION
1. To install, reverse the removal procedure.

NOTE: Make sure the safety belt webbing is not twisted prior to installation.
- Ensure that the plastic bezel located on the rear package tray is secure after installing the rear safety belt and that the rear safety belt does not bind or catch on it.
- Ensure that after the rear safety belt retractor is installed, the retractor is not stuck in the Automatic Locking Retractor (ALR) mode.
- Perform the Function Test to ensure that the new retractor operates properly. Component Tests and General Diagnostics
