FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
1999
>>
Tracer L4-122 2.0L SOHC VIN P SFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
C: Torque Converter Clutch (TCC) Solenoid
C: Torque Converter Clutch (TCC) Solenoid

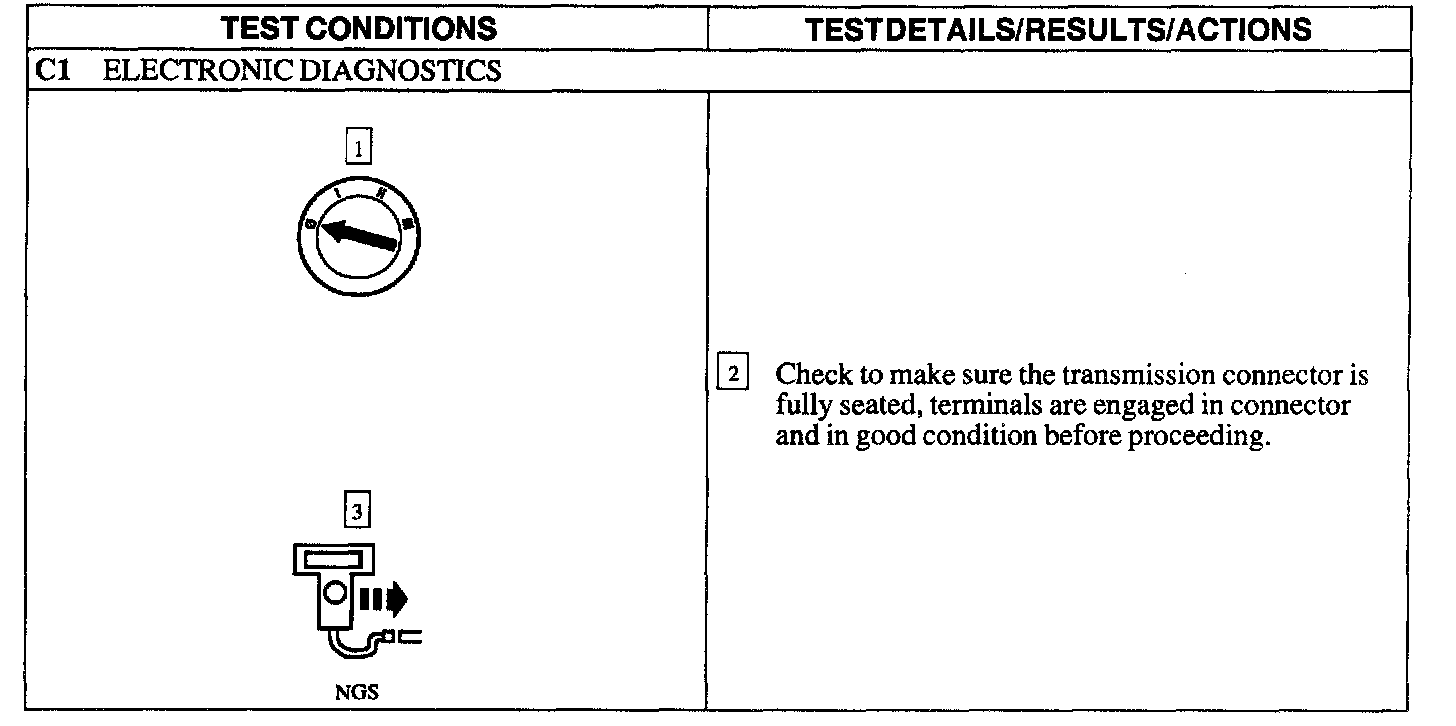

C1:

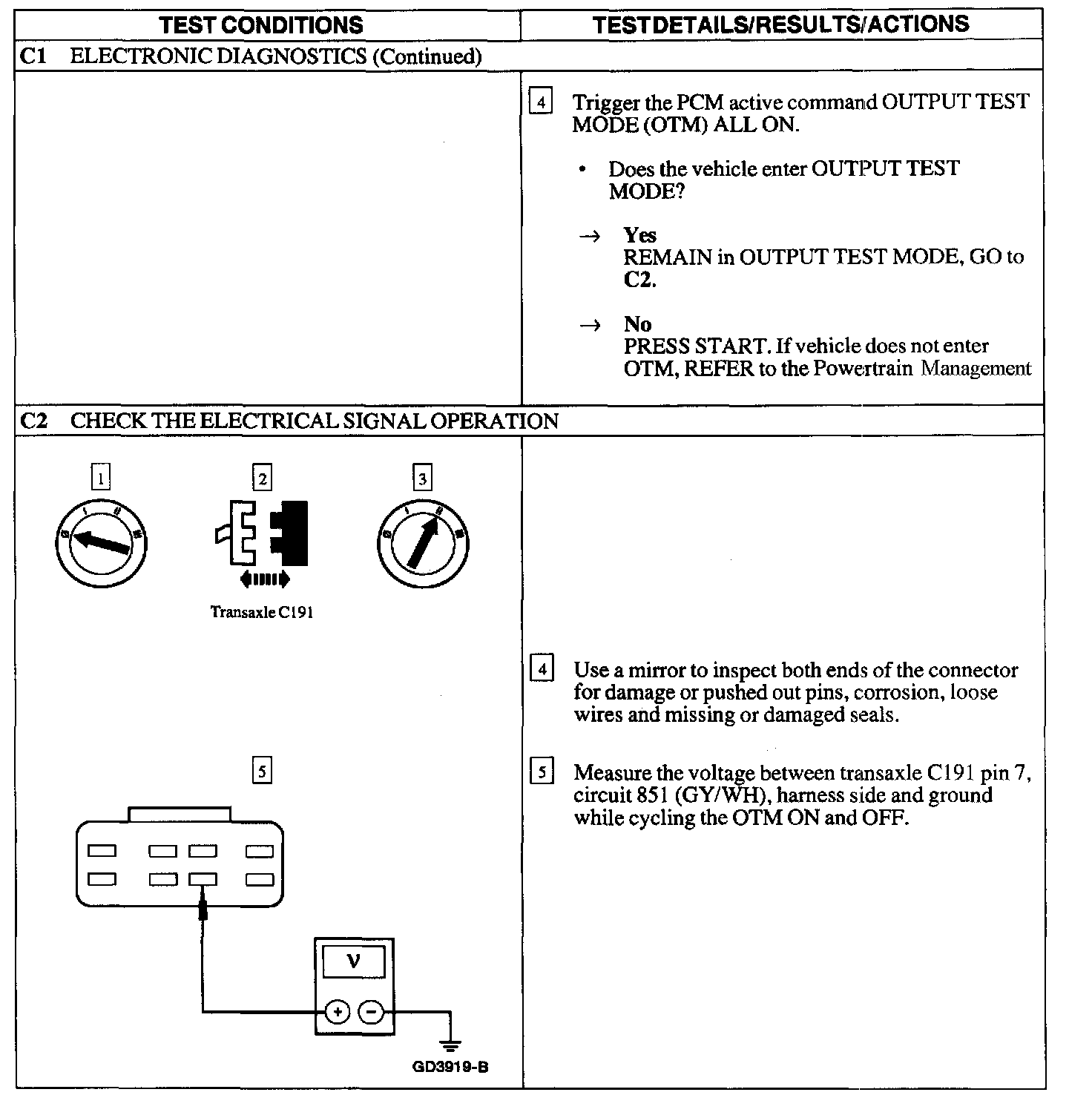

C1 - C2:

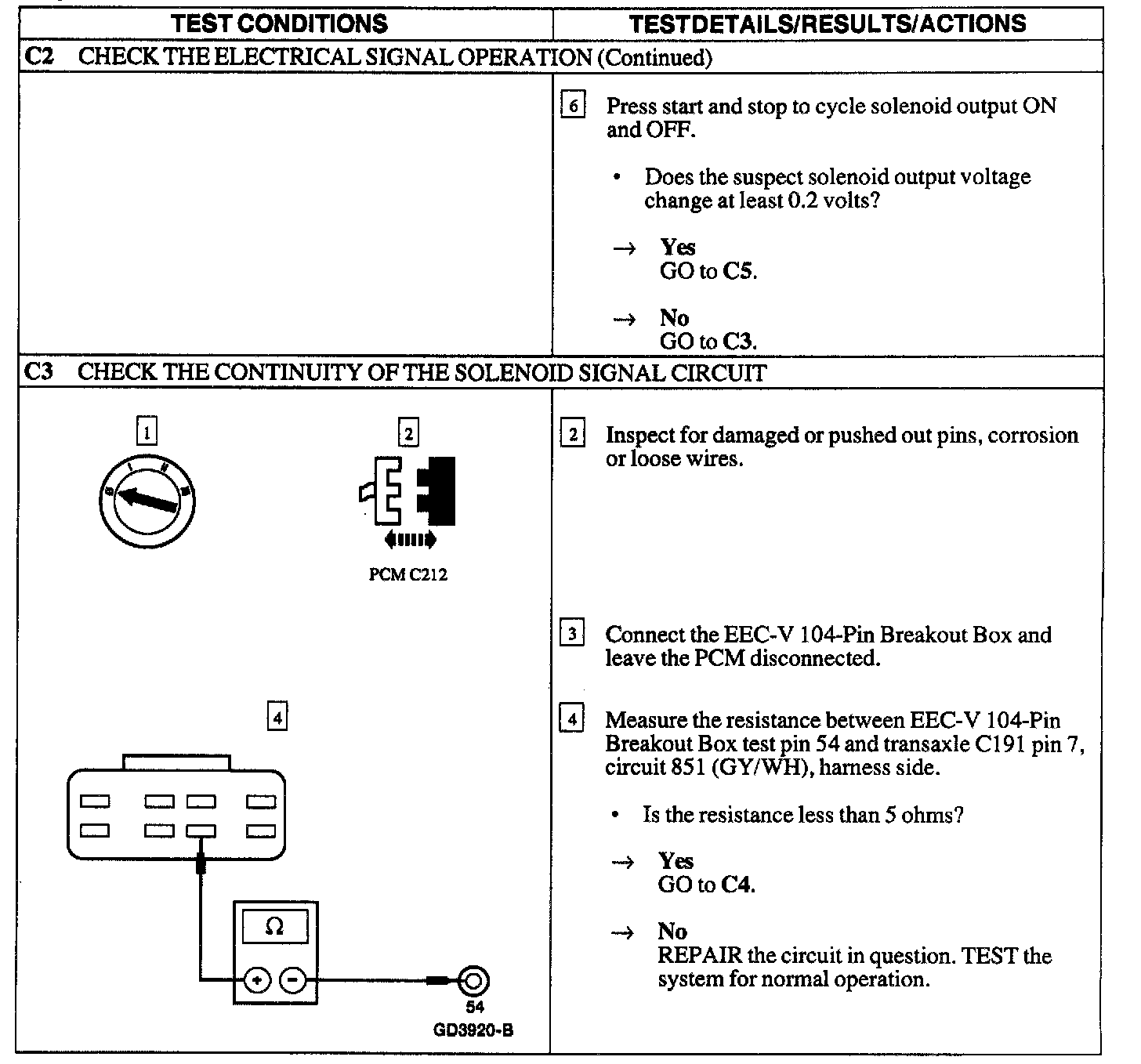

C2 - C3:

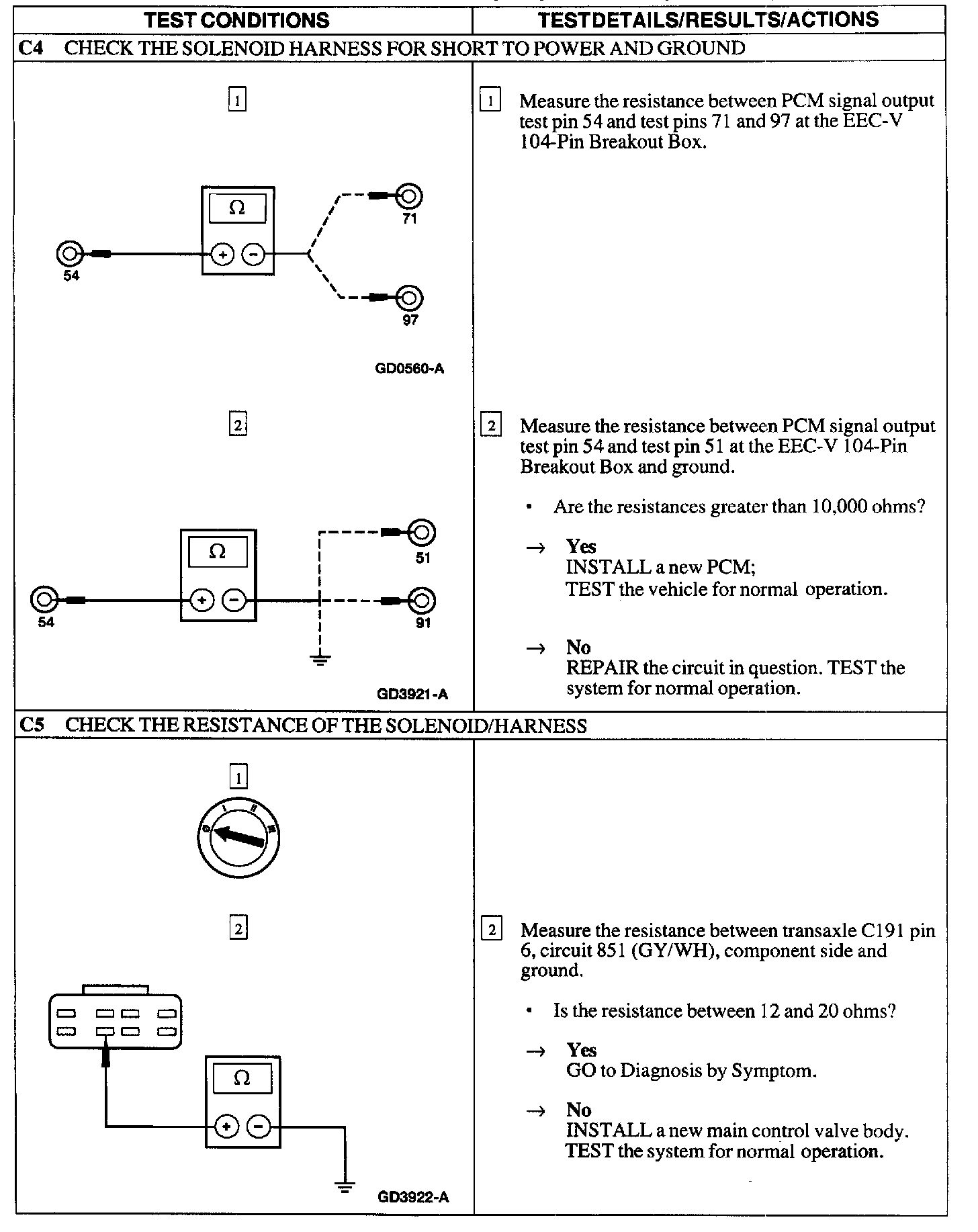

C4 - C5:
Pinpoint Test C: TORQUE CONVERTER CLUTCH (TCC) SOLENOID
