Accelerator Cable Bracket

REMOVAL







1. Disconnect the accelerator cable from the throttle control lever and the accelerator cable bracket.
1 Disconnect the cable housing from the accelerator cable bracket.
2 Disconnect the accelerator cable end from the throttle control lever.
3 Position the accelerator cable aside.

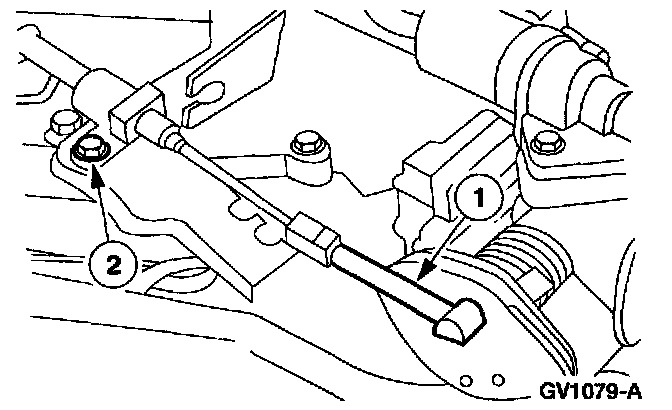

2. Disconnect the speed control actuator cable from the throttle control lever.
1 Disconnect the speed control actuator cable from the throttle control lever.
2 Remove the bolt.

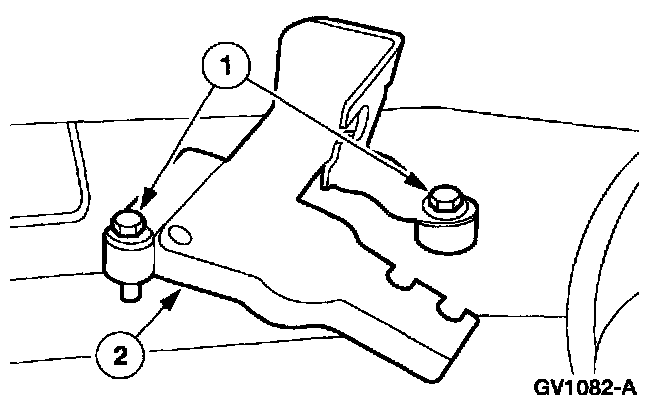

3. Remove the accelerator cable bracket.
1 Remove the bolts.
2 Remove the accelerator cable bracket.

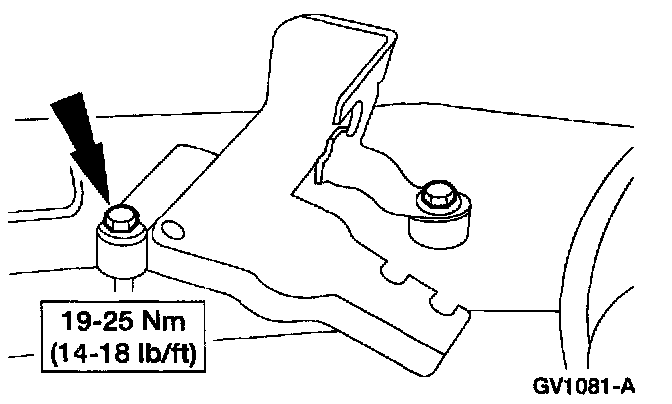

INSTALLATION












1. To install, reverse the removal procedure.
^ Adjust the accelerator cable. Adjustments
^ Adjust the speed control actuator cable.
