Canister Purge Solenoid: Service and Repair

REMOVAL
1. Remove the Evaporative Emission (EVAP) canister.

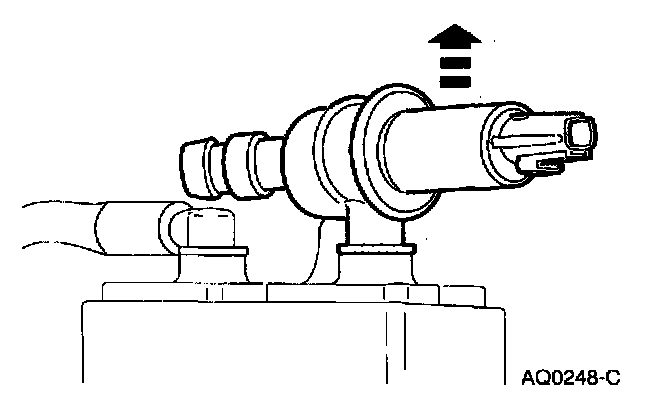

2. Remove the canister vent solenoid.

INSTALLATION

NOTE:
^ Lubricate the O-ring with Merpol O-ring Seal Lubricant or equivalent meeting Ford Specification ESE-M99B144B.
^ A canister and bracket assembly leak test should be carried out before installation on the vehicle. Evaporative Emission Canister Assembly Leak Test

1. To install, reverse the removal procedure.
^ Carry out the Leak Test. EVAP System Leak Test
^ Carry out the Evaporative Emission Running Loss Monitor Repair Verification Drive Cycle.
