Home >> Mercury >> 1999 >> Tracer L4-122 2.0L SOHC VIN P SFI >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Pinpoint Tests >> Exterior Lamps >> Multi-Function Switch >> A: Ignition Switch Inoperative

A: Ignition Switch Inoperative

Test A1 - A2:

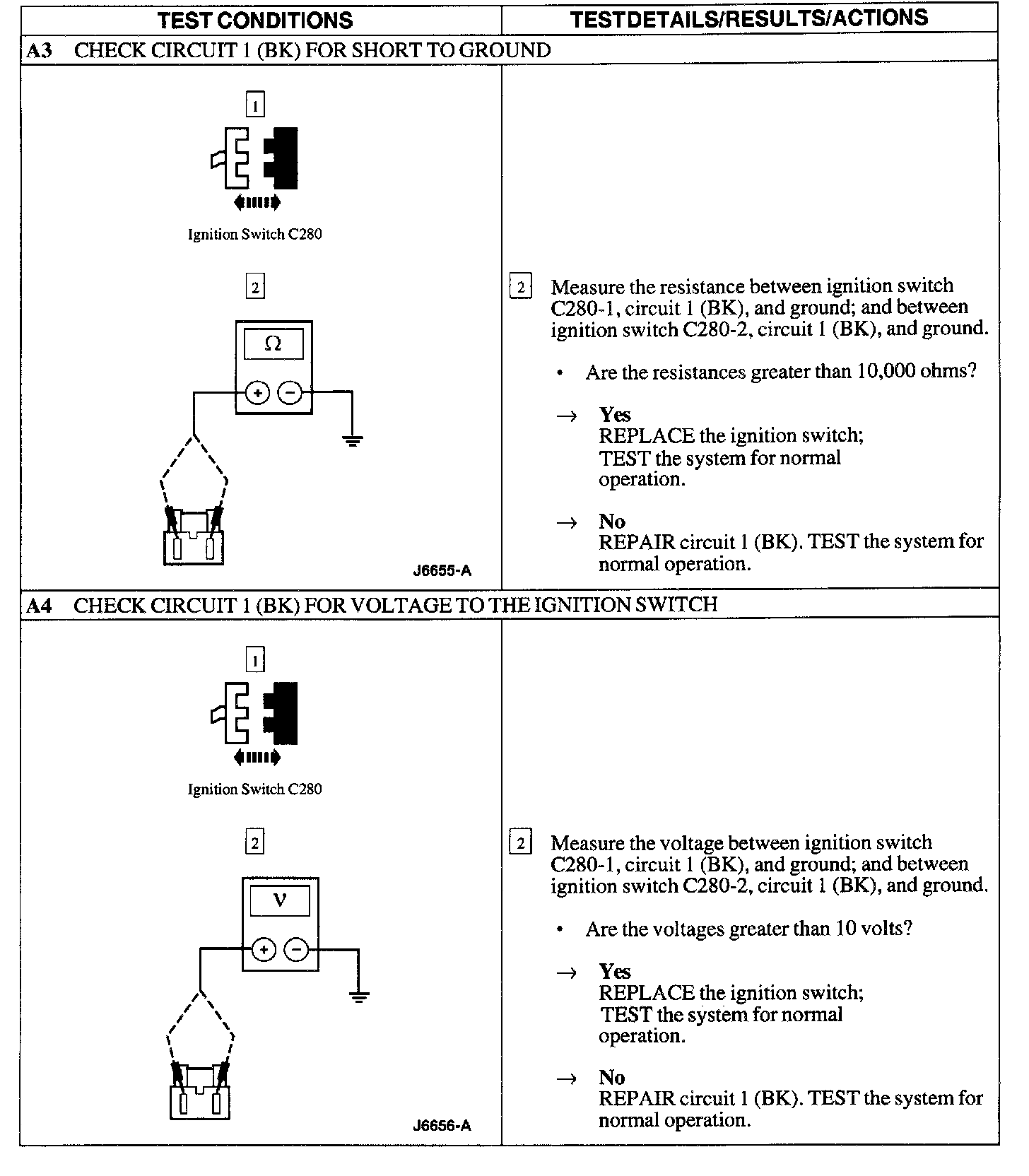

Test A3 - A4:
