Multi-Function Switch Housing with Switches Attached

Part 1 Of 2:




Part 2 Of 2:

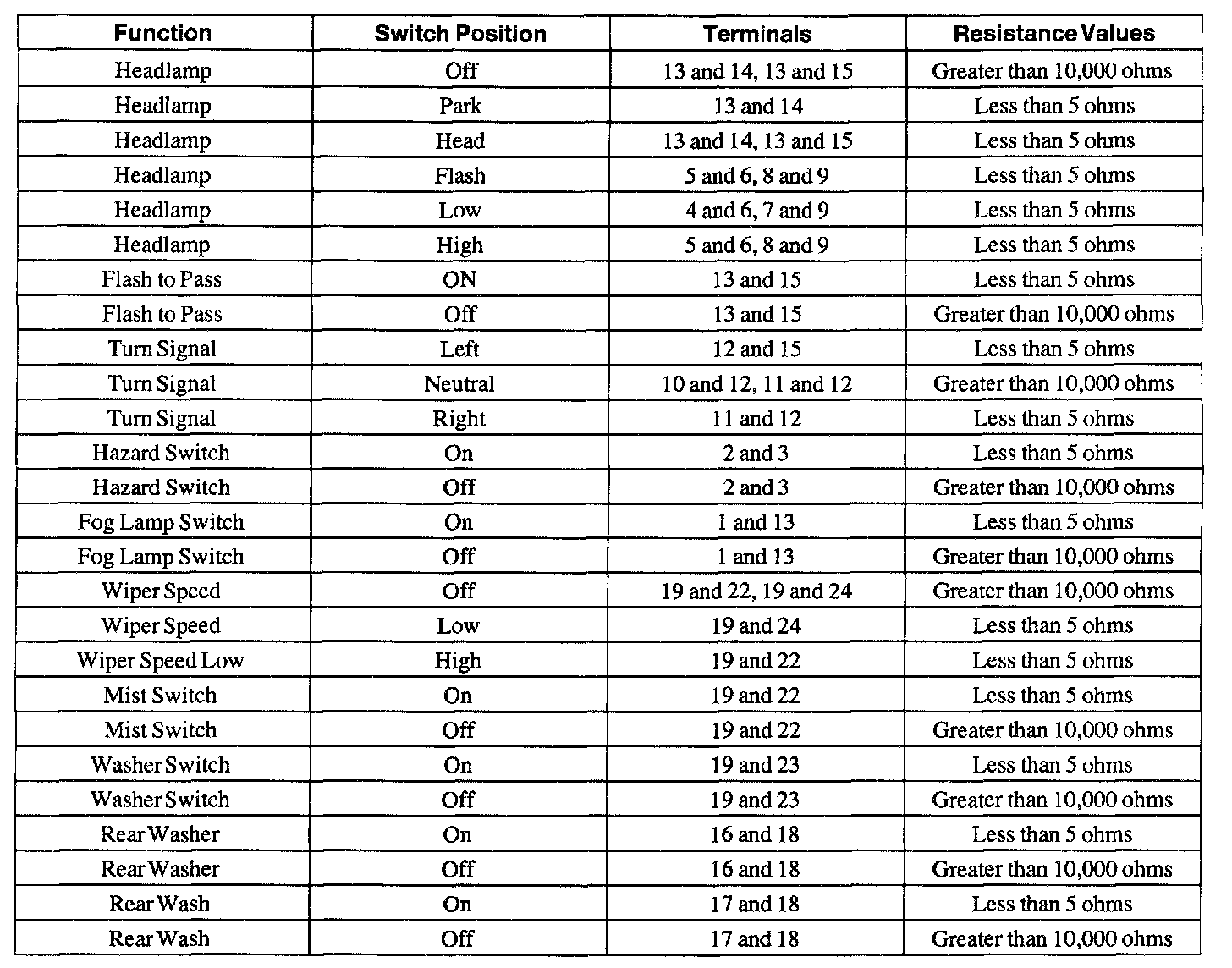

Measure the resistance between the switch terminals:
If the resistances are not as specified, replace the component in question. If the resistances are as specified, the component in question is OK.
