Home >> Mercury >> 1999 >> Tracer L4-122 2.0L SOHC VIN P SFI >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Testing and Inspection >> Component Tests and General Diagnostics >> Pinpoint Tests >> E One High or Low Beam H/Lamp Inoperative

E One High or Low Beam H/Lamp Inoperative

E1 - E2:

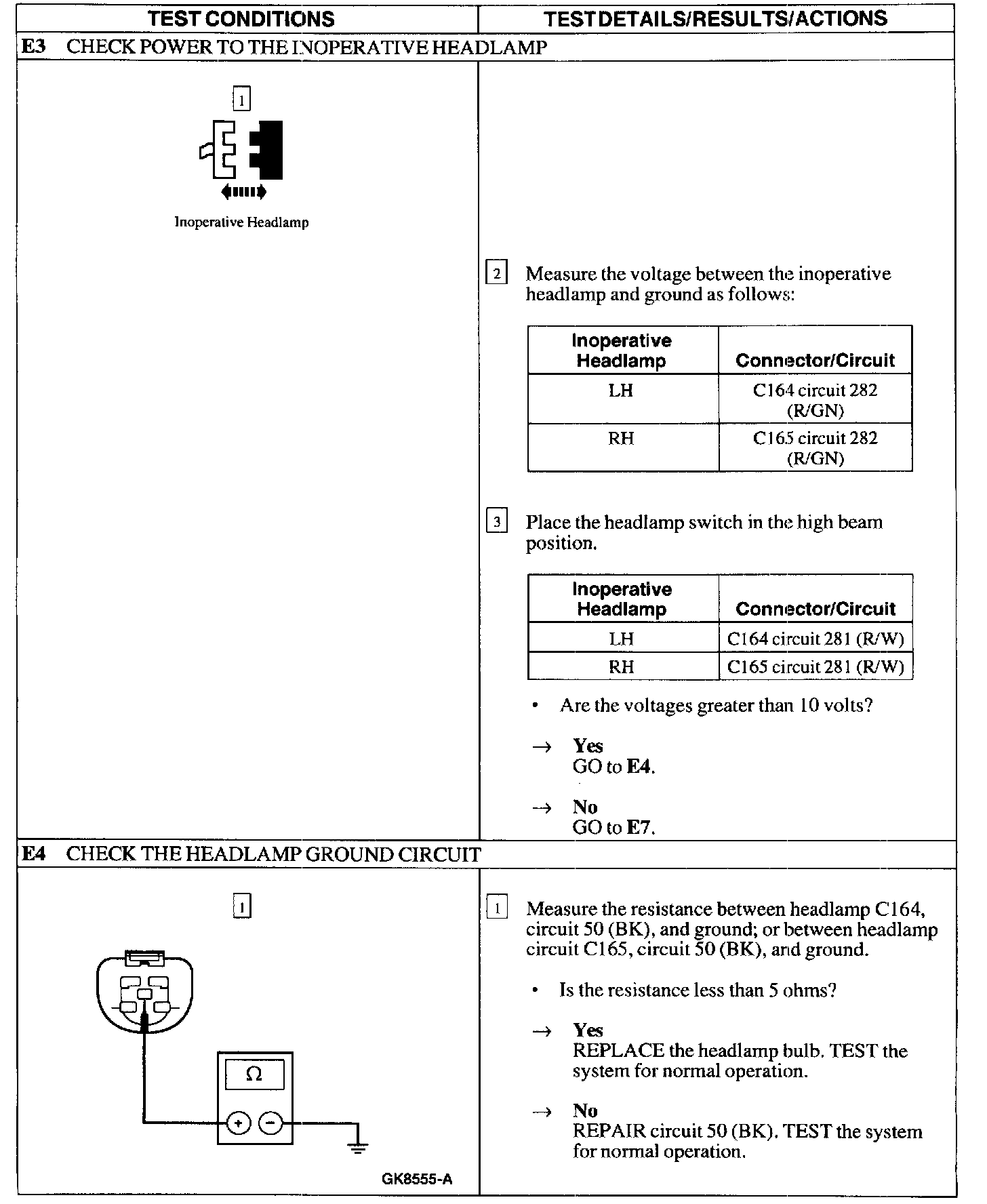

E3 - E4:






E5 - E6:

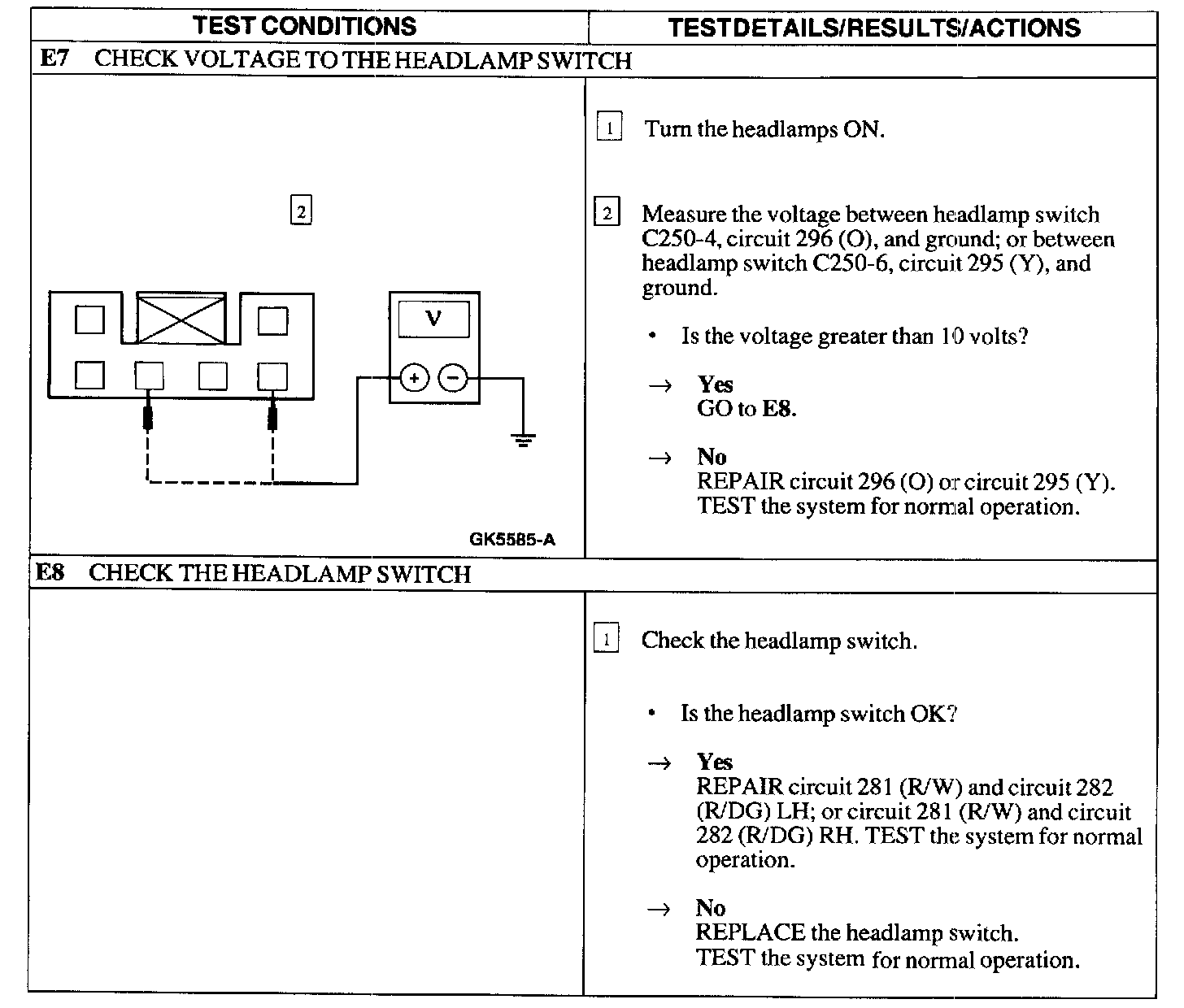

E7 - E8:
