Home >> Mercury >> 1999 >> Tracer L4-122 2.0L SOHC VIN P SFI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Testing and Inspection >> Pinpoint Tests >> M: An Indicator Is Inoperative/Always ON -ABS Warning

M: An Indicator Is Inoperative/Always ON -ABS Warning

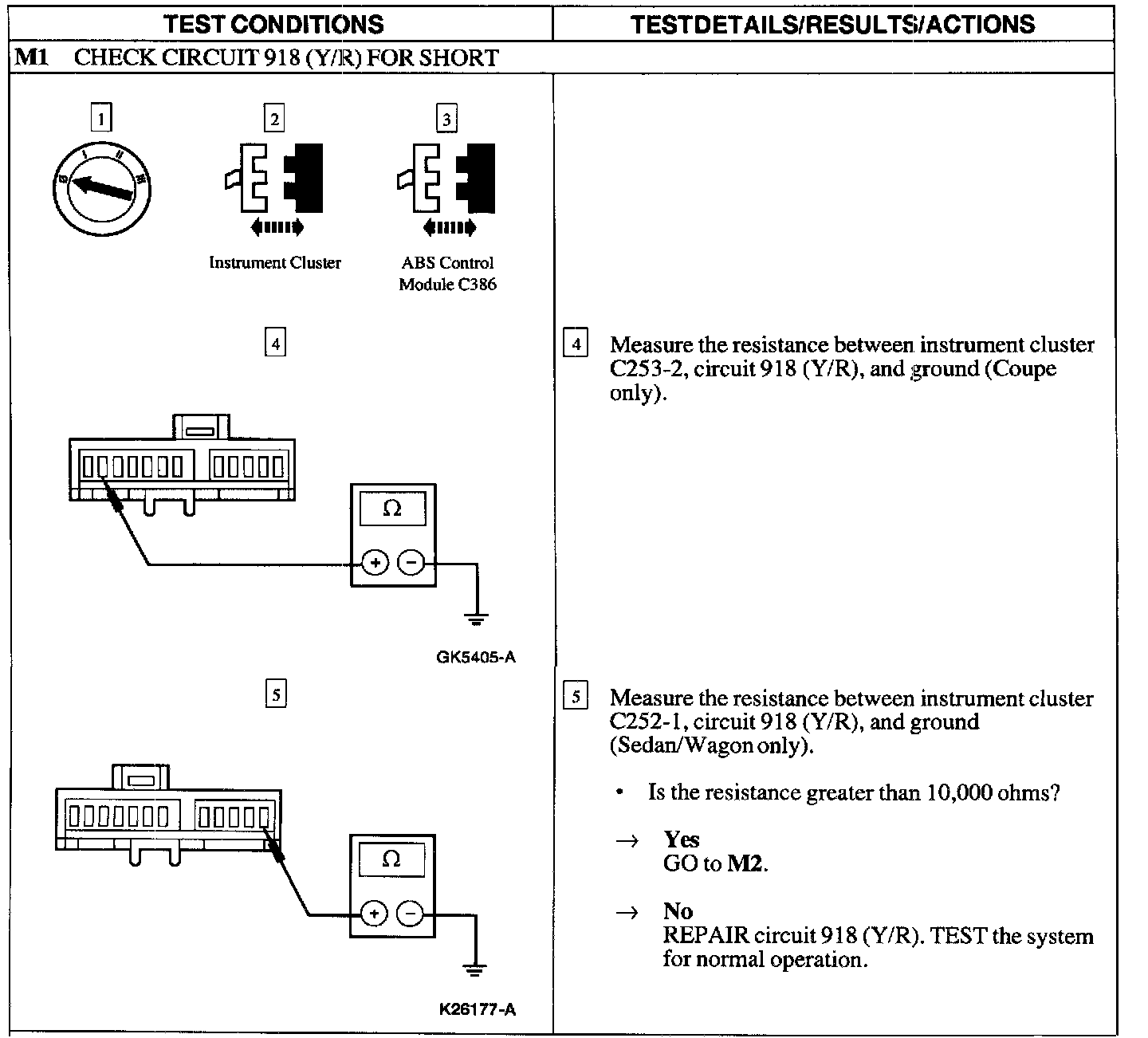

M1:

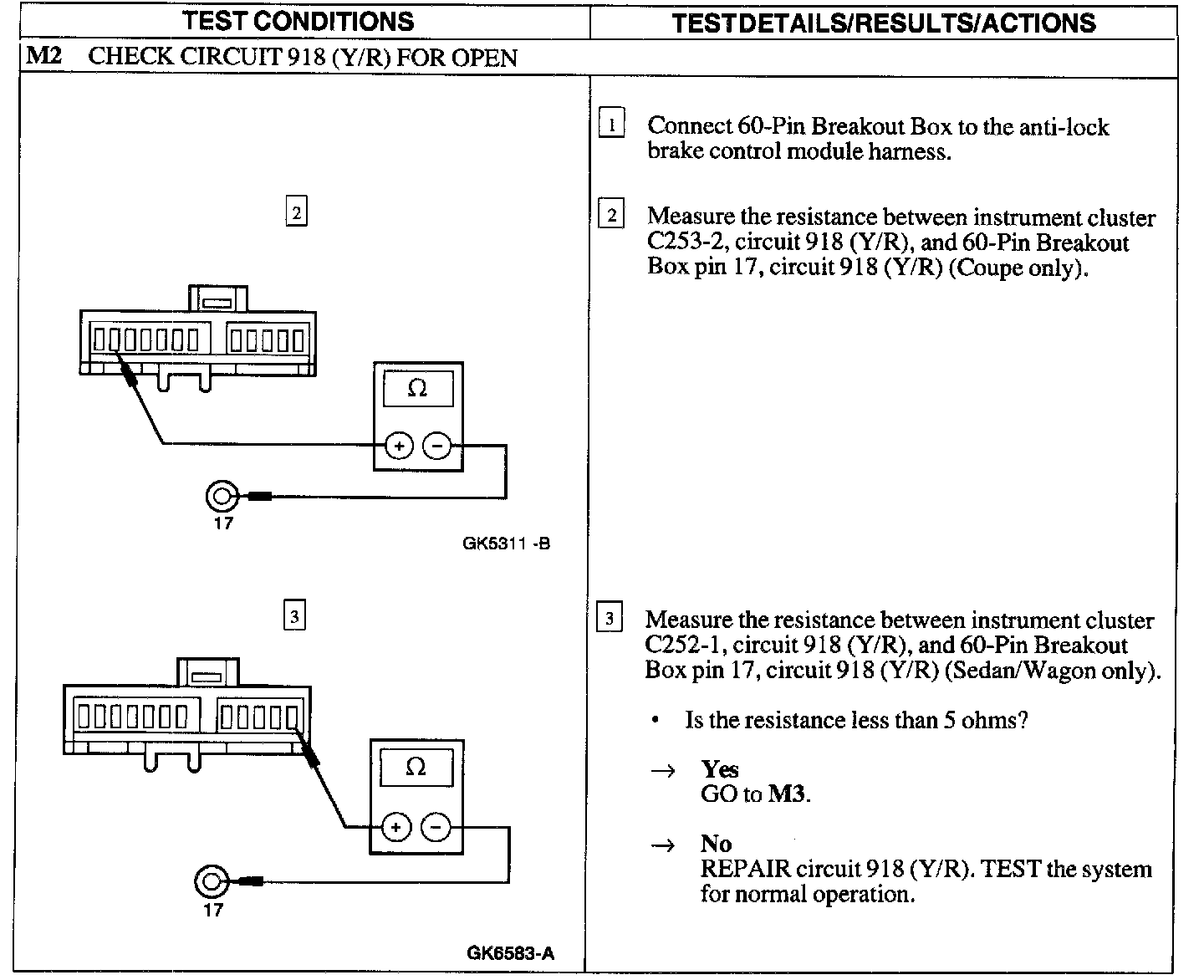

M2:






M3 - M4:
