Home >> Mercury >> 1999 >> Tracer L4-122 2.0L SOHC VIN P SFI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Testing and Inspection >> Pinpoint Tests >> E: Incorrect Tachometer Indication

E: Incorrect Tachometer Indication

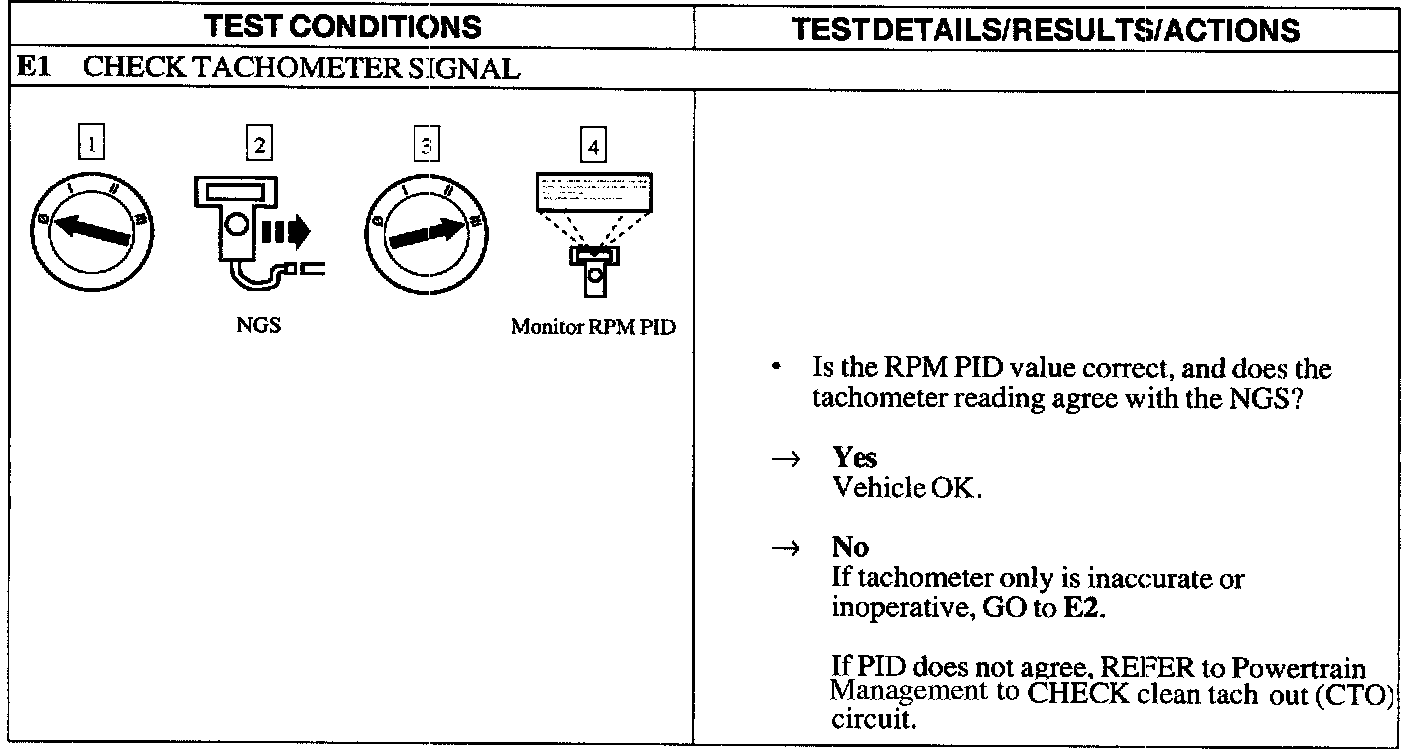

E1:

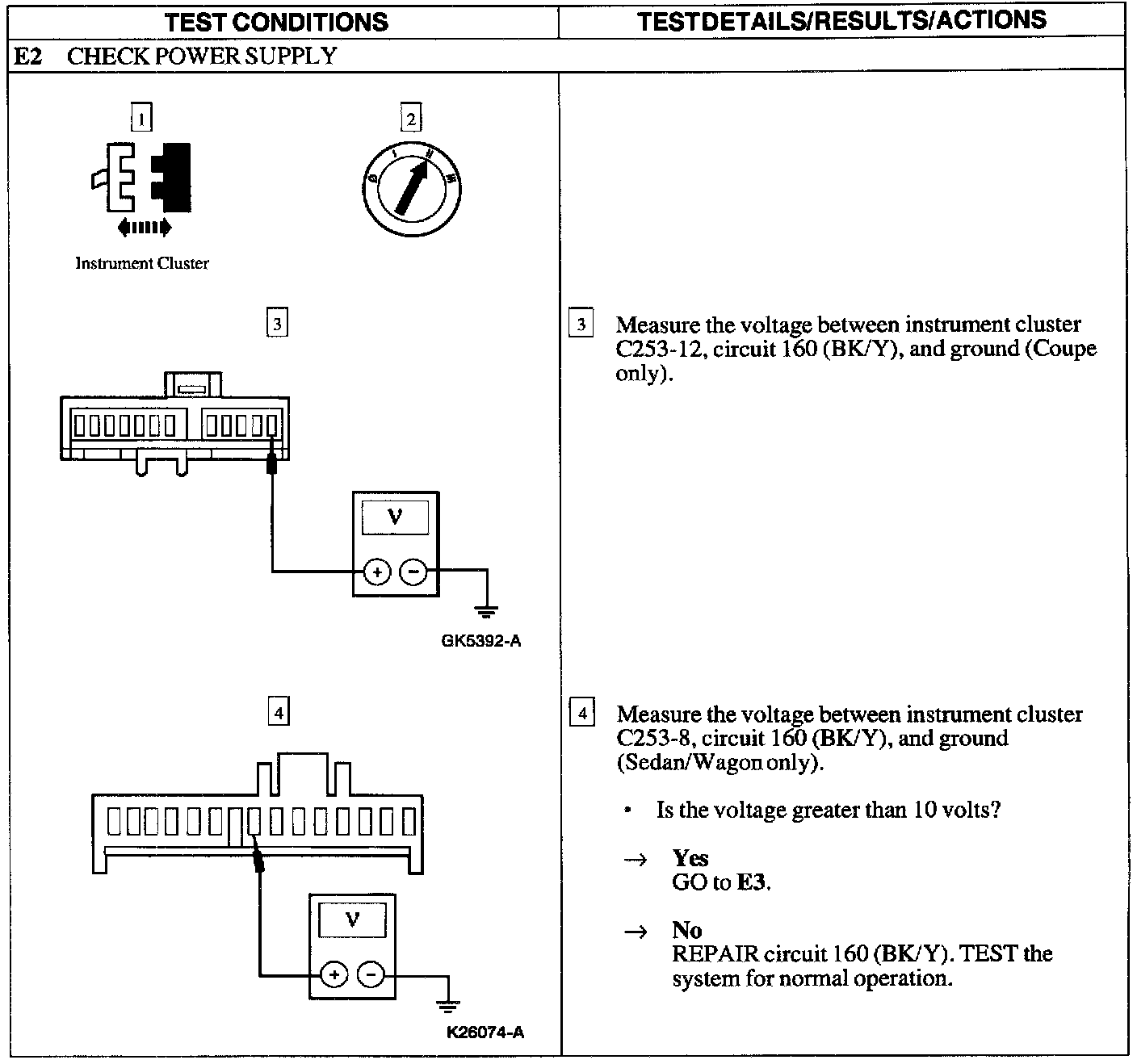

E2:

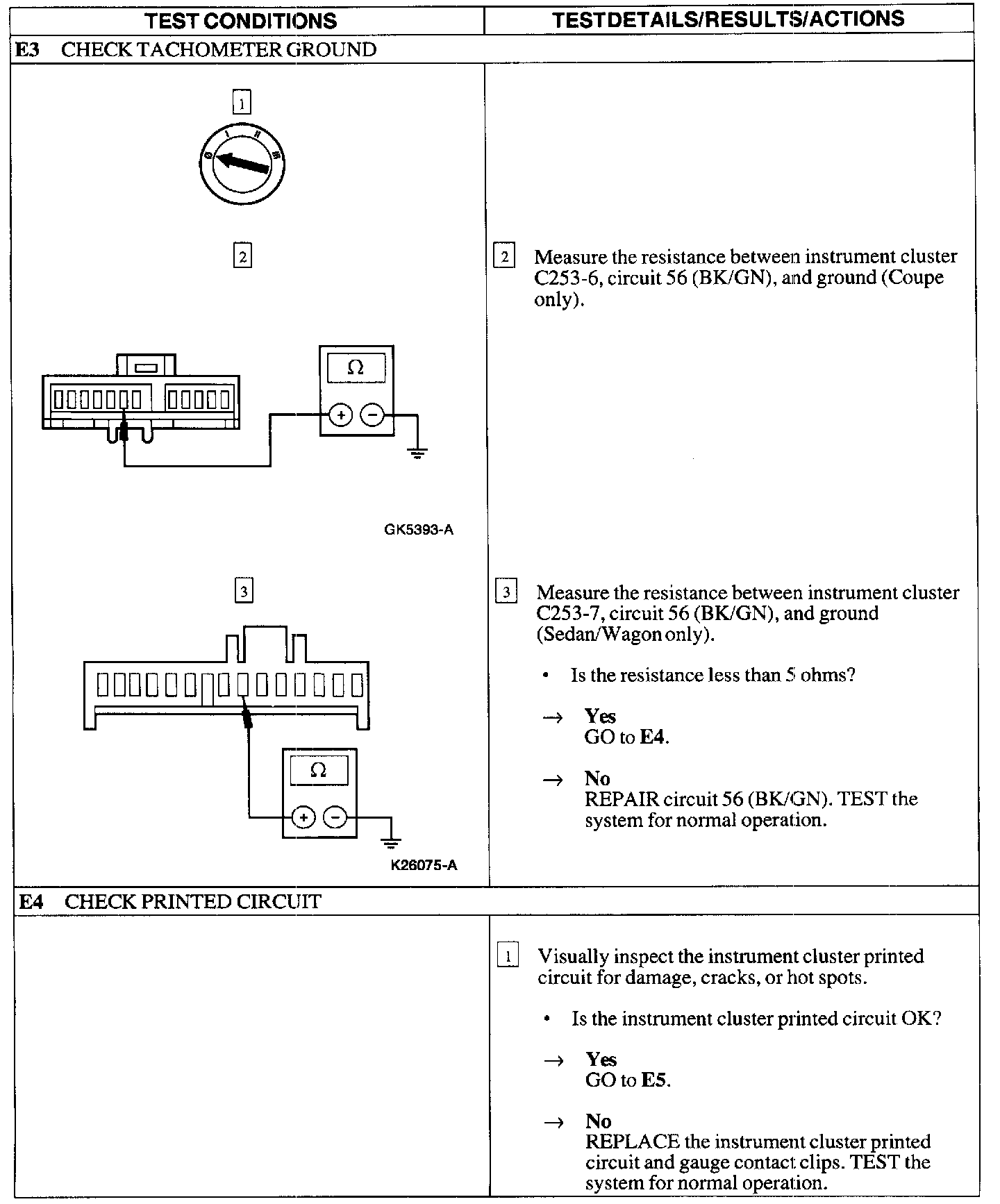

E3 - E4:

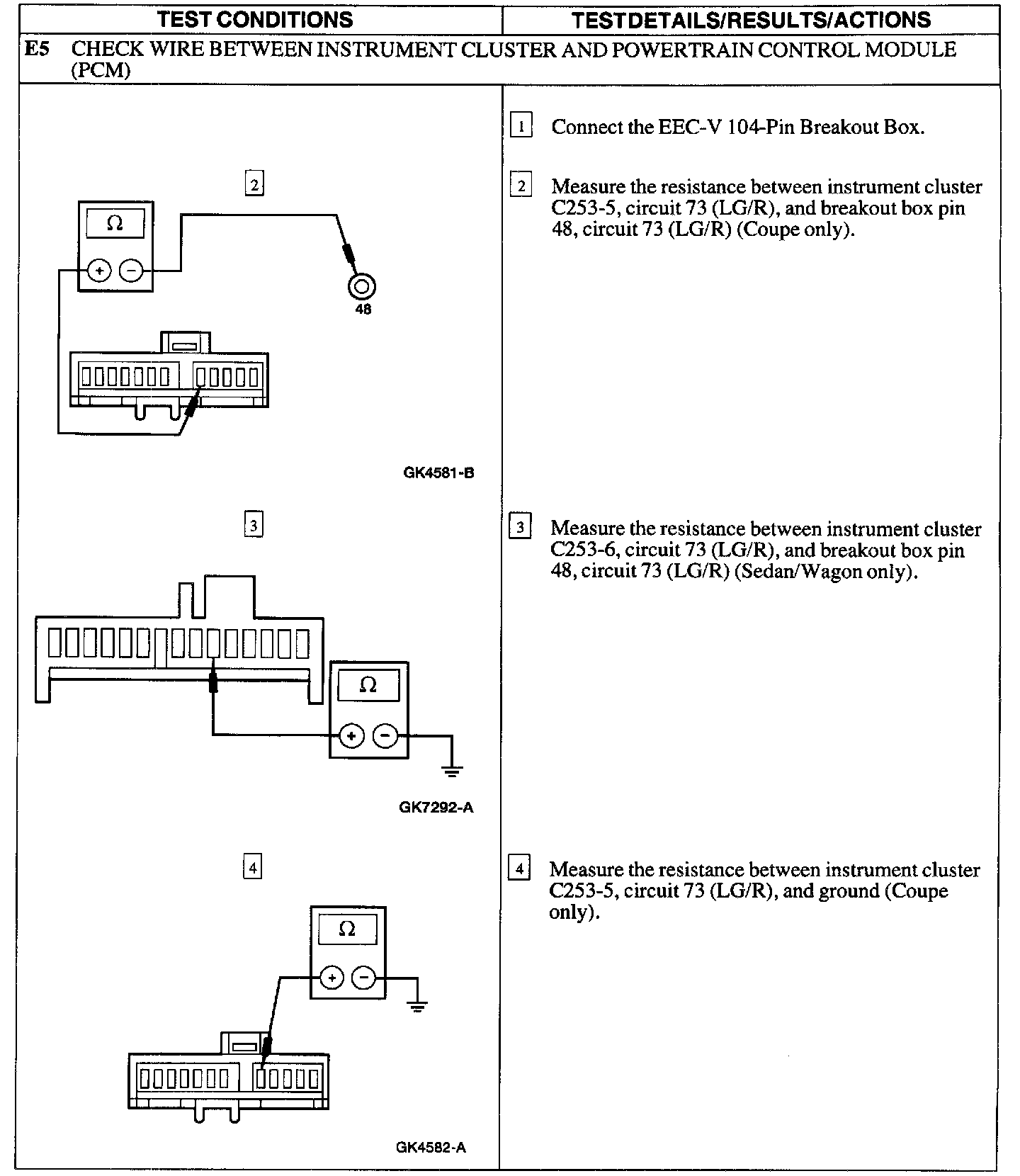

E5 (Part 1 Of 2):

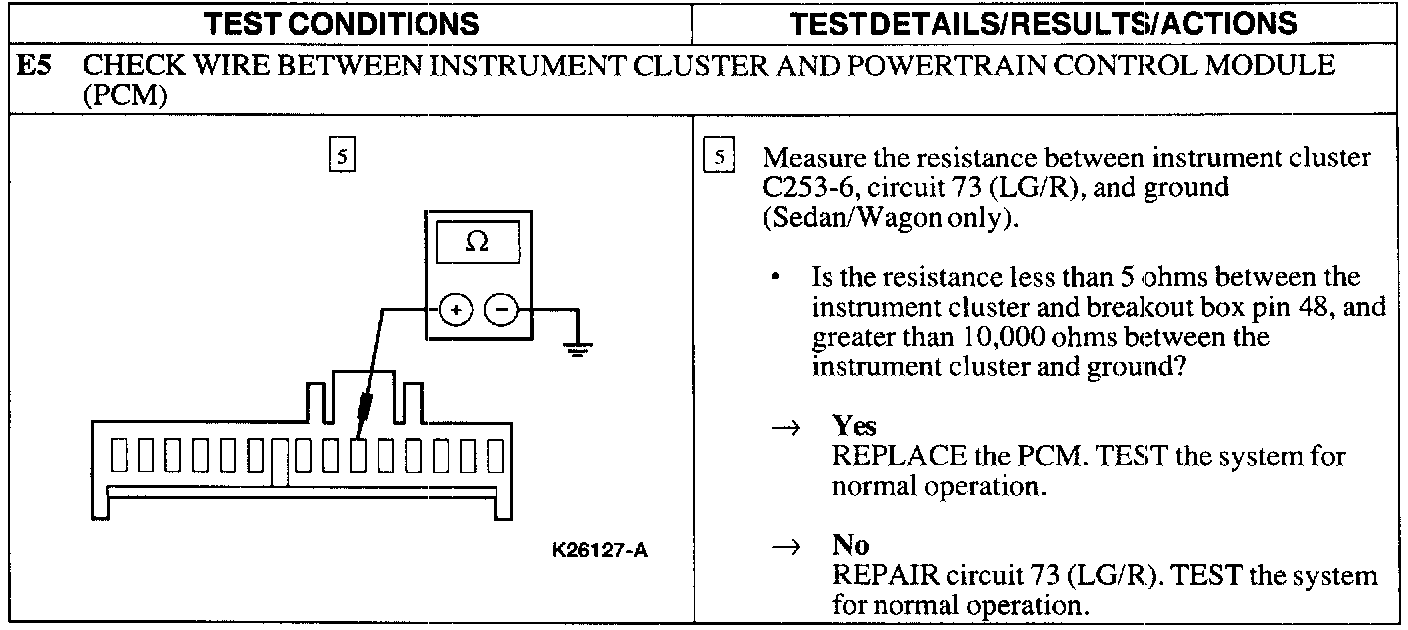

E5 ( Part 2 Of 2):
