Home >> Mercury >> 1999 >> Tracer L4-122 2.0L SOHC VIN P SFI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Testing and Inspection >> Pinpoint Tests >> D: Incorrect Speedometer/Odometer Operation

D: Incorrect Speedometer/Odometer Operation

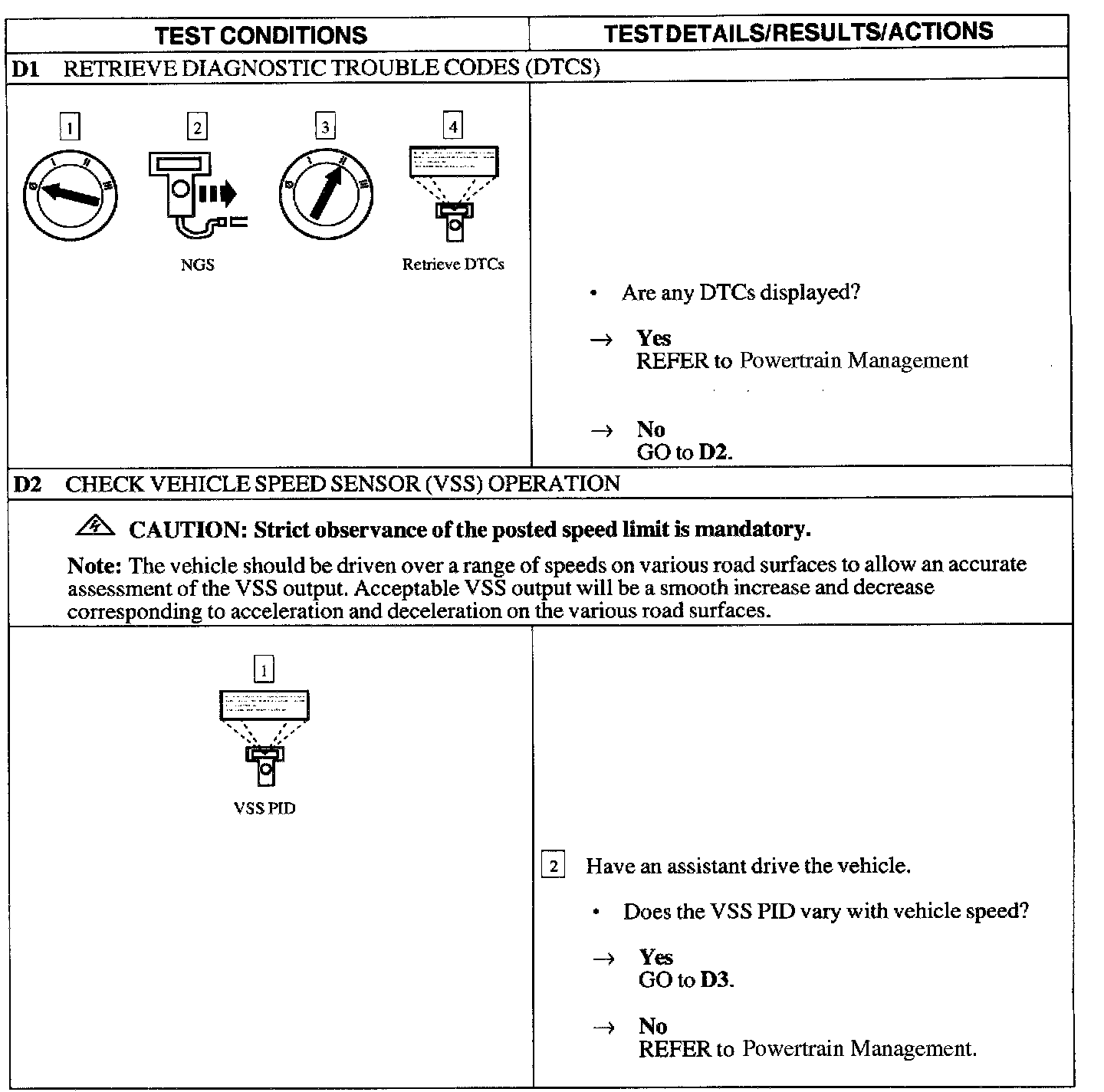

D1 - D2:

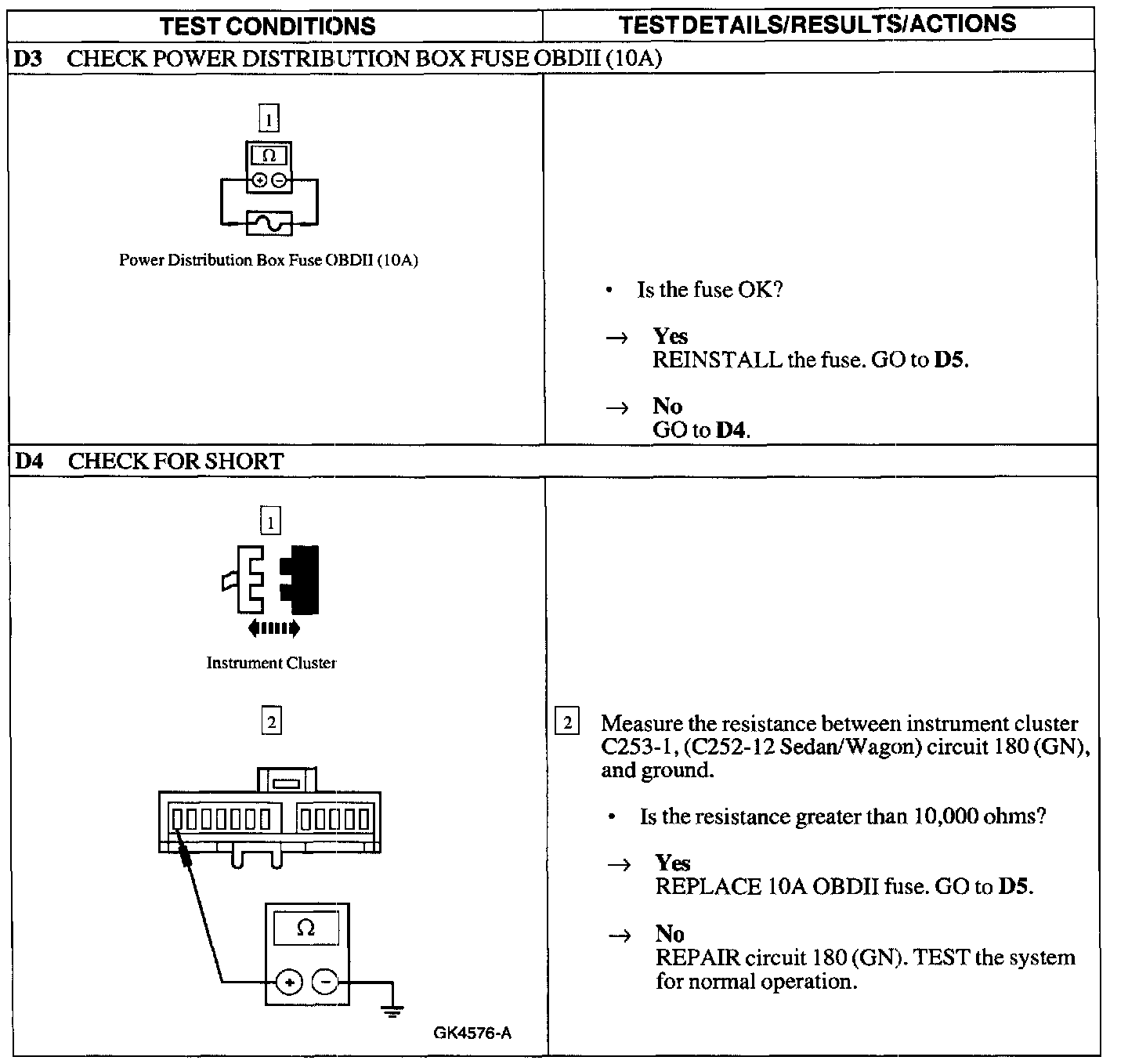

D3 - D4:

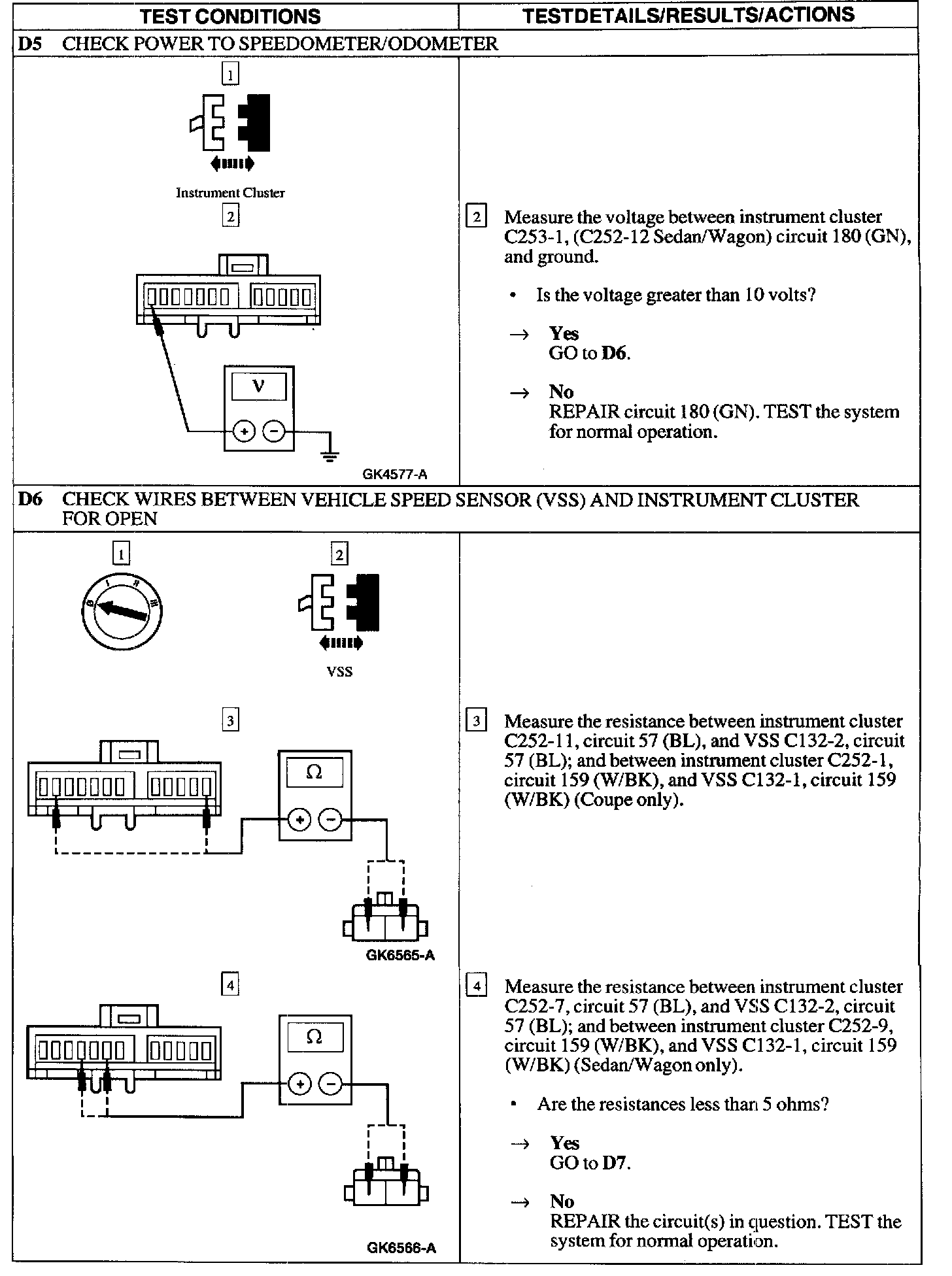

D5 - D6:

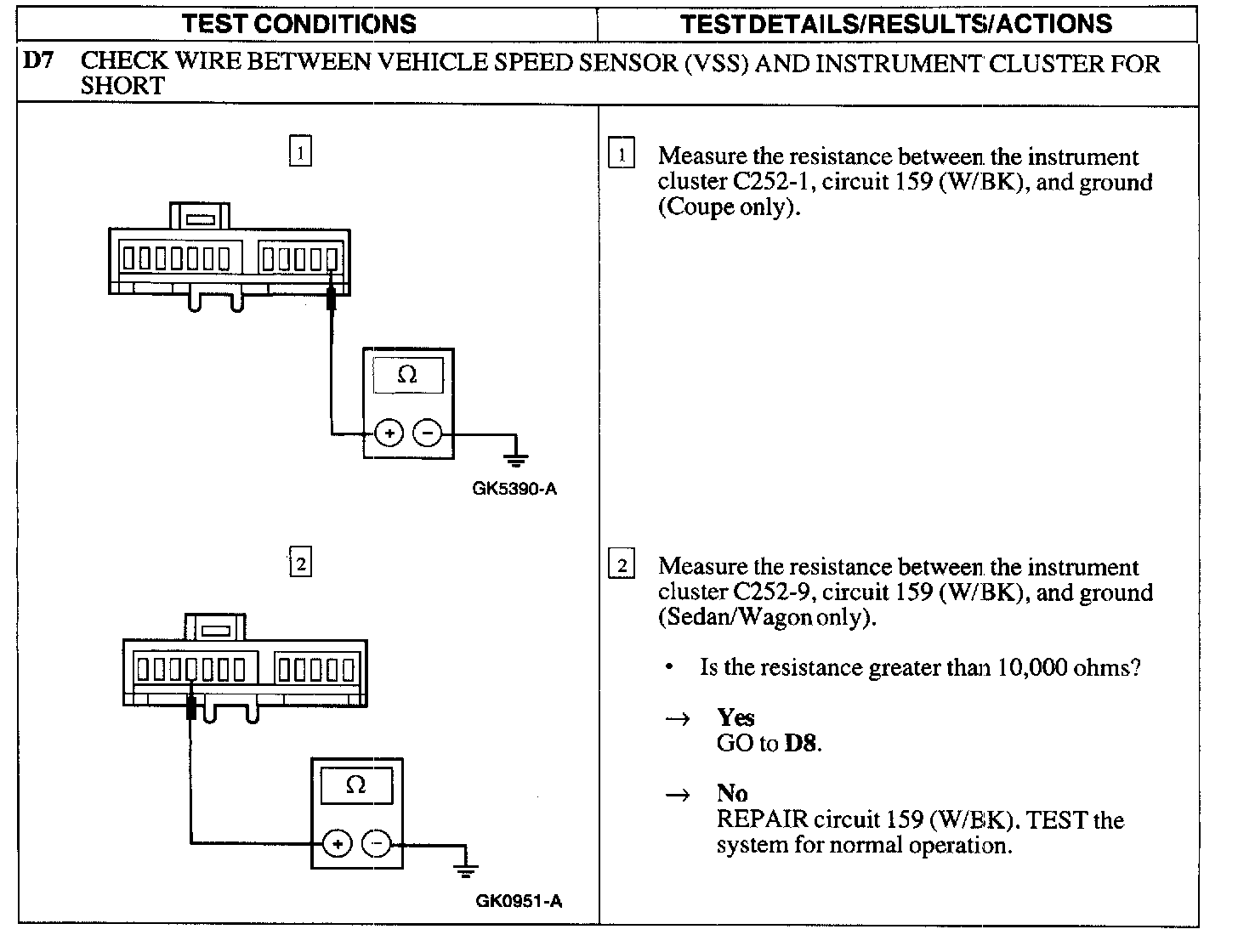

D7:

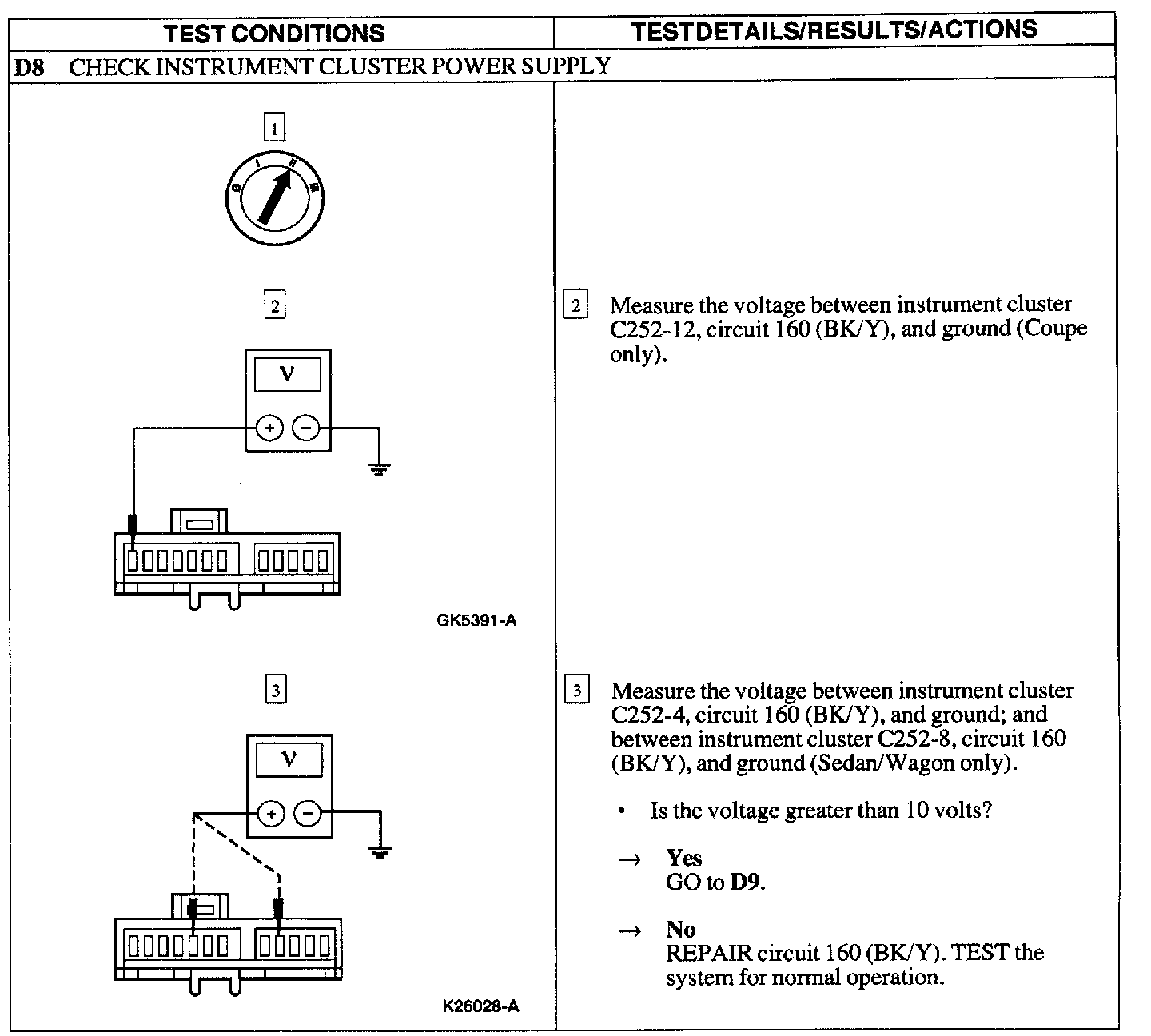

D8:

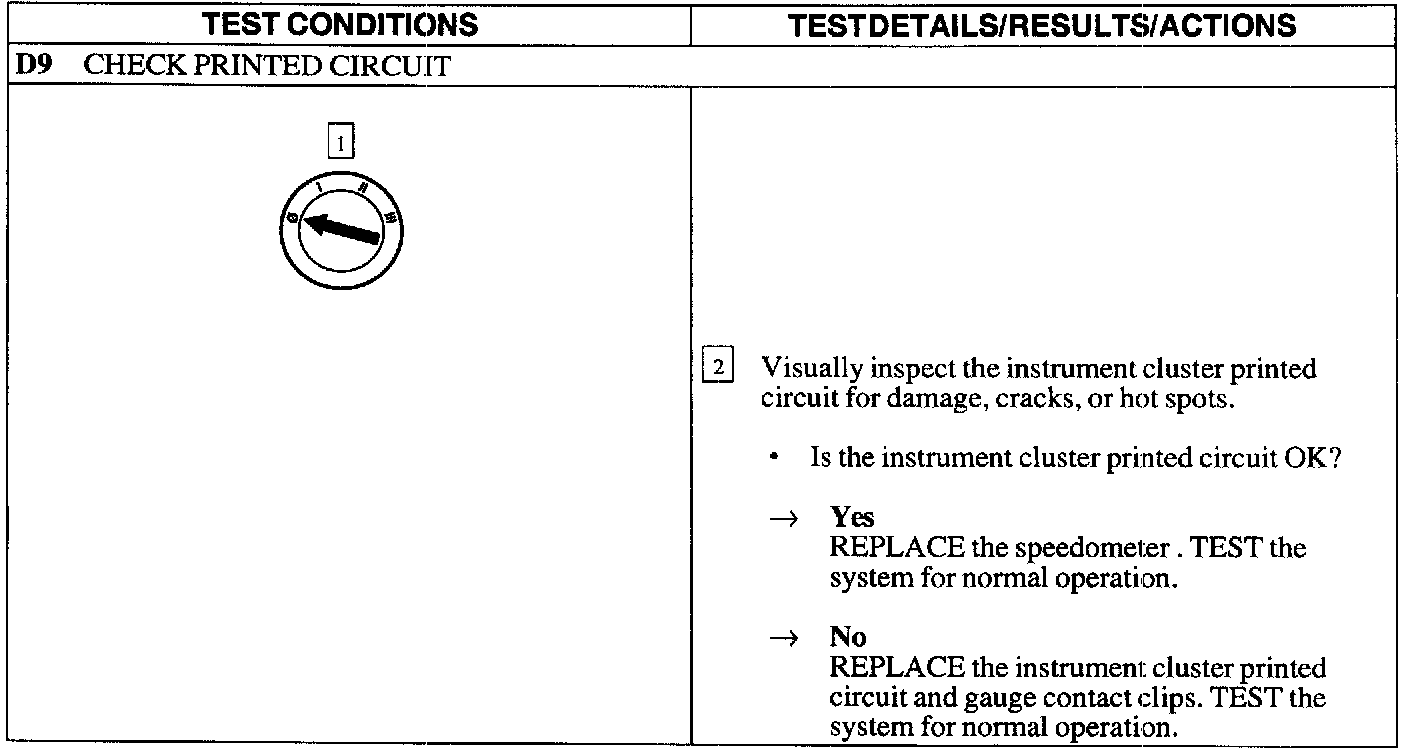

D9:
