Home >> Mercury >> 1999 >> Tracer L4-122 2.0L SOHC VIN P SFI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Testing and Inspection >> Pinpoint Tests >> B: Incorrect Fuel Gauge Indication

B: Incorrect Fuel Gauge Indication

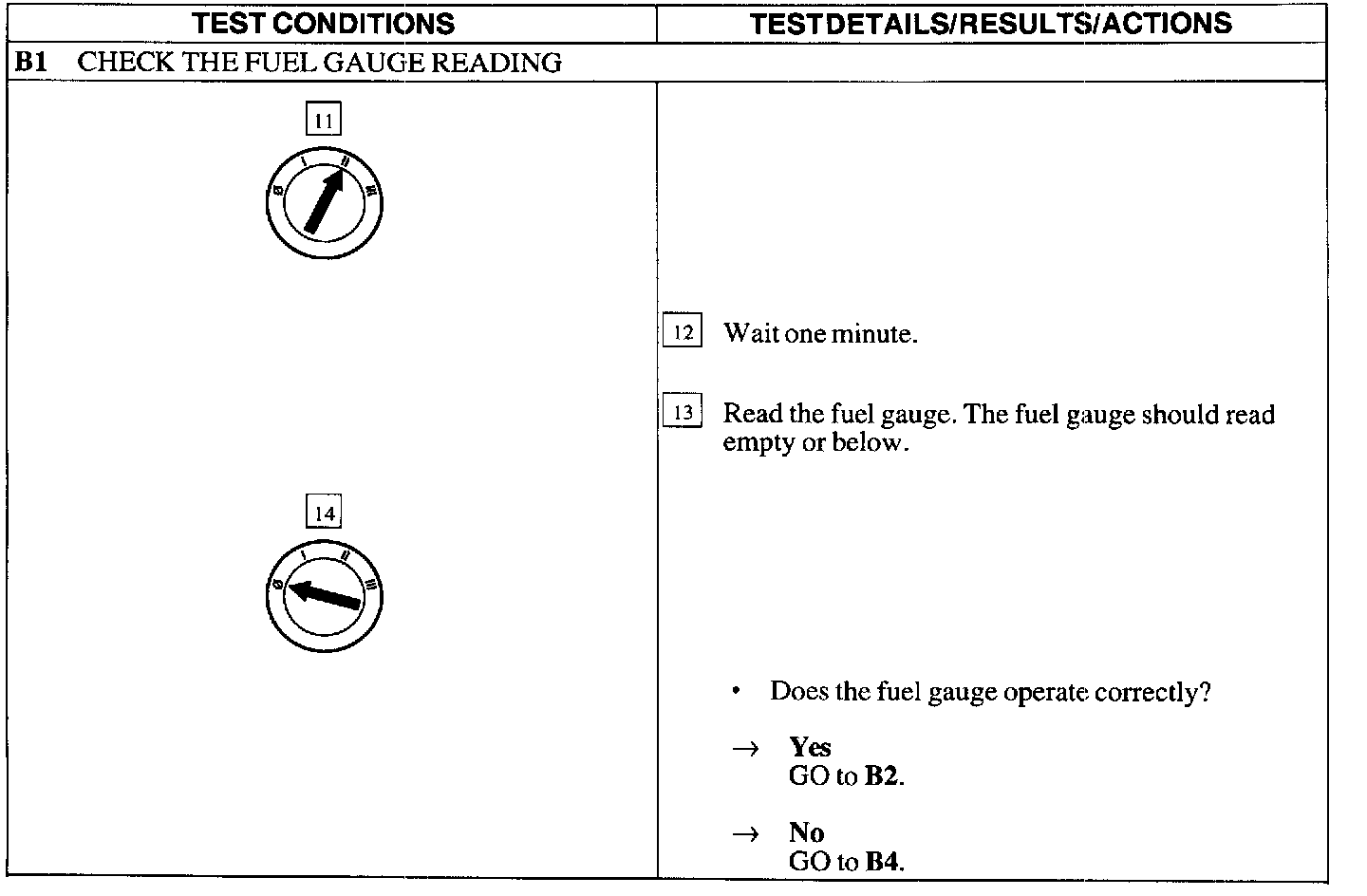

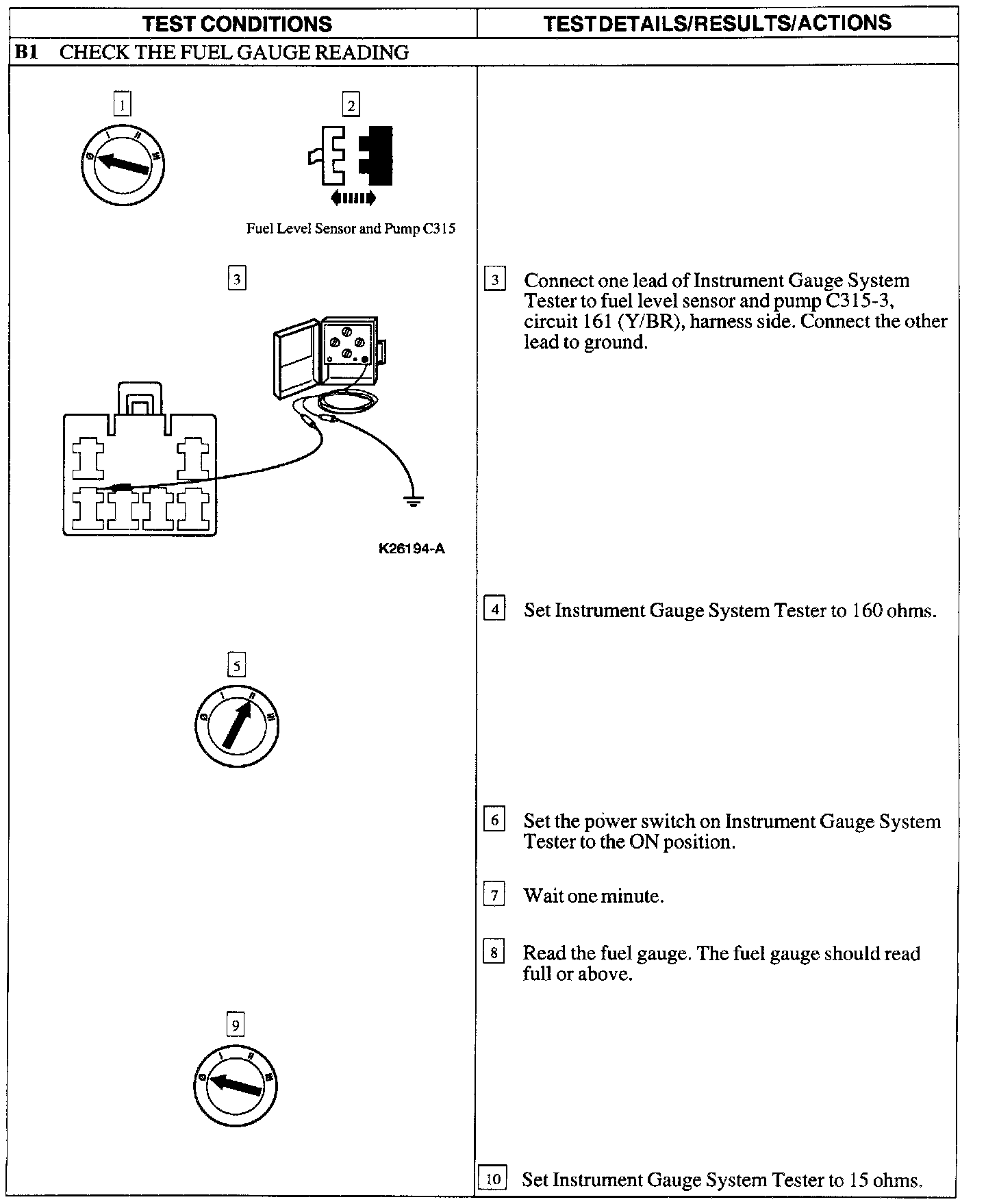

B1 (Part 1 Of 2):






B1 ( Part 2 Of 2):

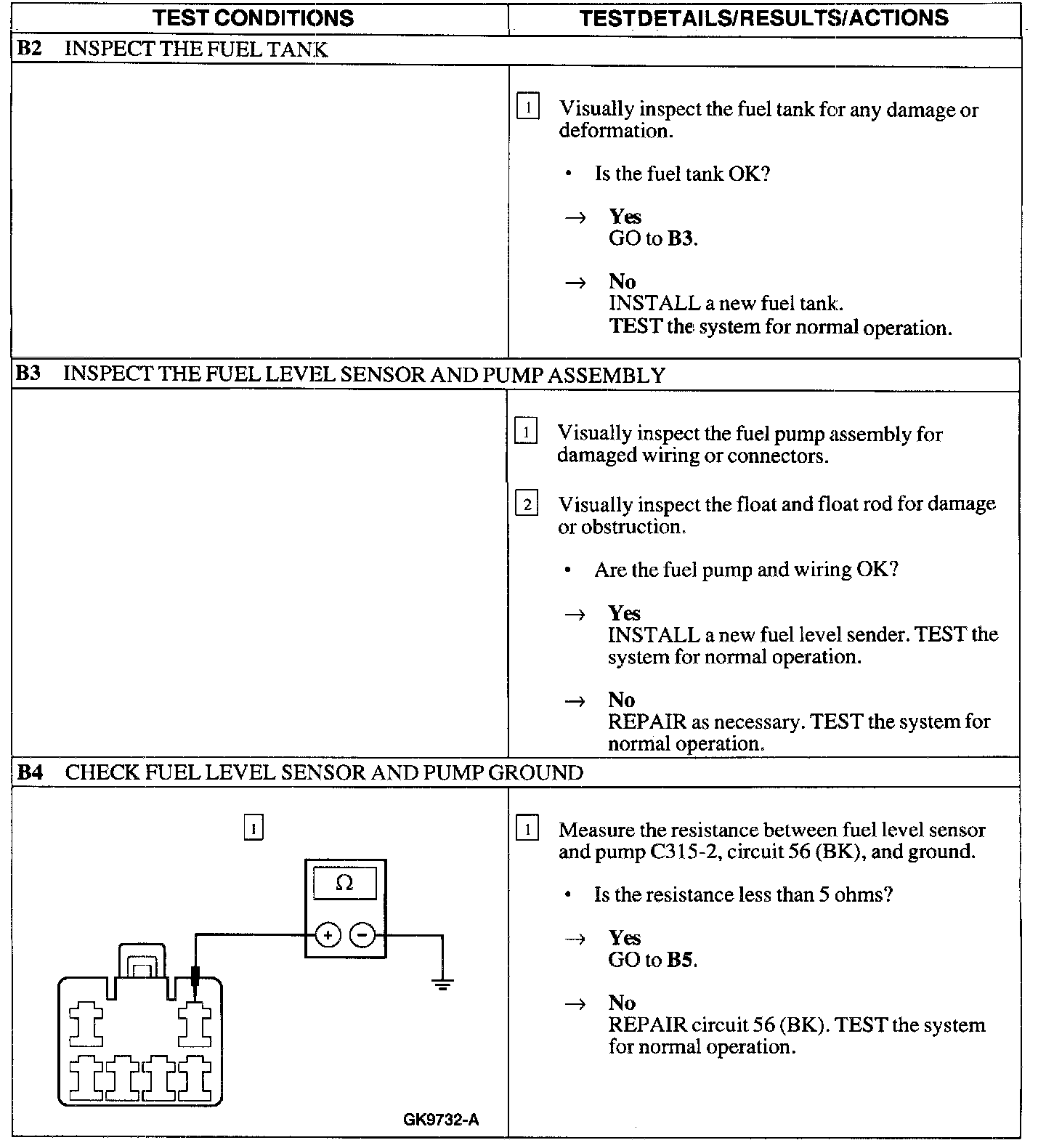

B2 - B4:

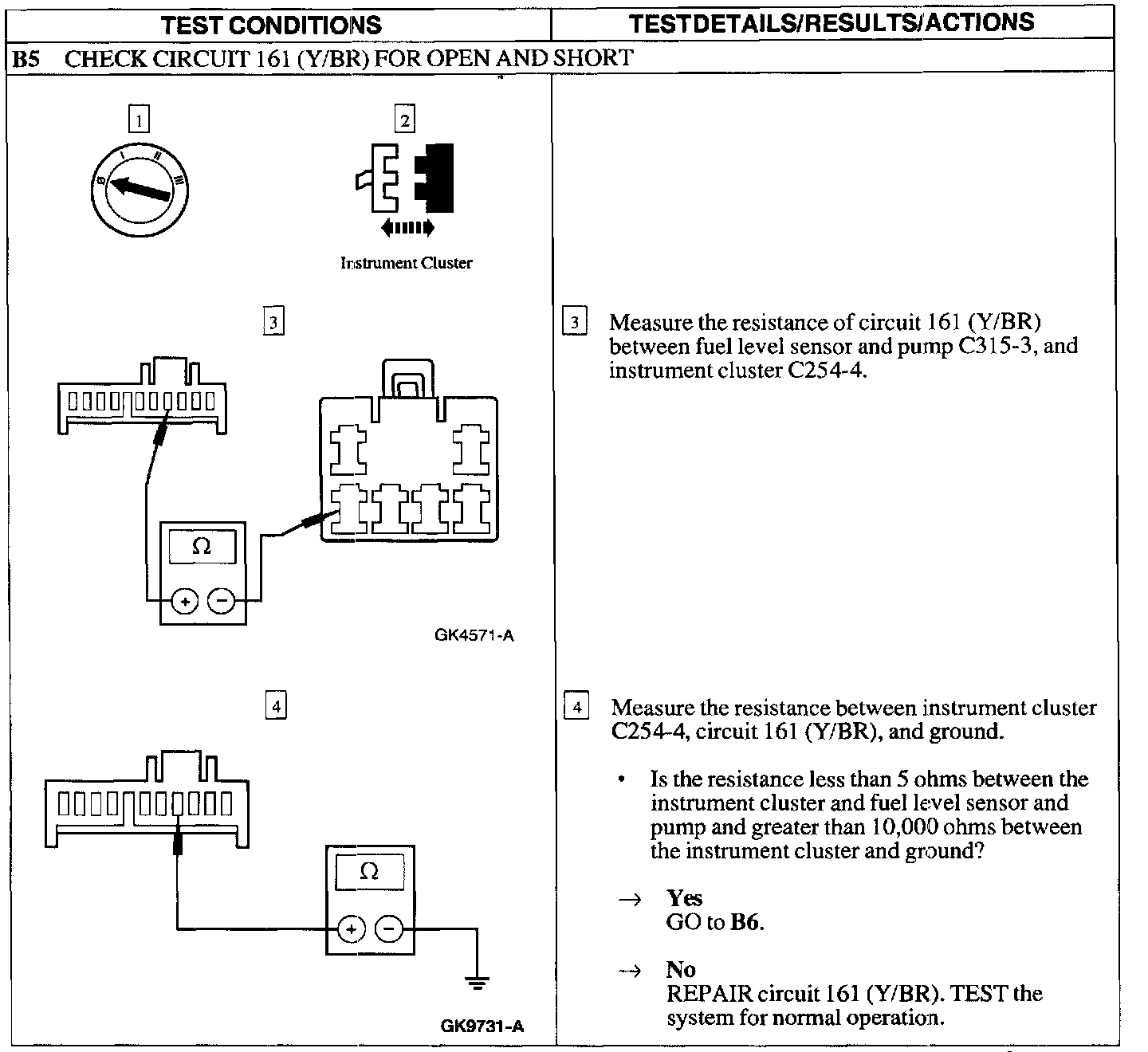

B5:

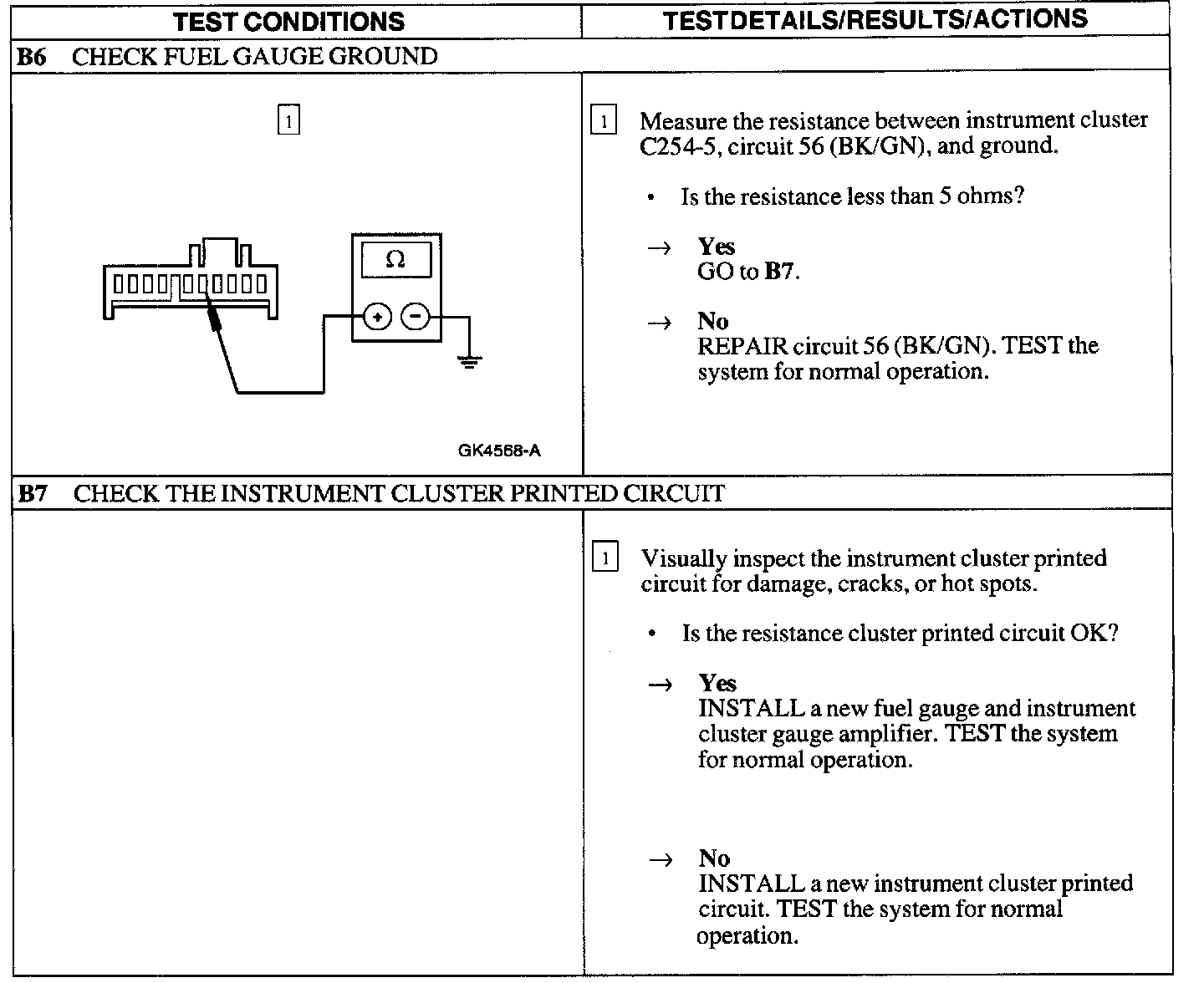

B6 - B7:
