Home >> Mercury >> 1999 >> Tracer L4-122 2.0L SOHC VIN P SFI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Audible Warning Device >> Testing and Inspection >> Pinpoint Tests >> C: Key-In-Ignition Chime Inop/Not Operate Properly

C: Key-In-Ignition Chime Inop/Not Operate Properly

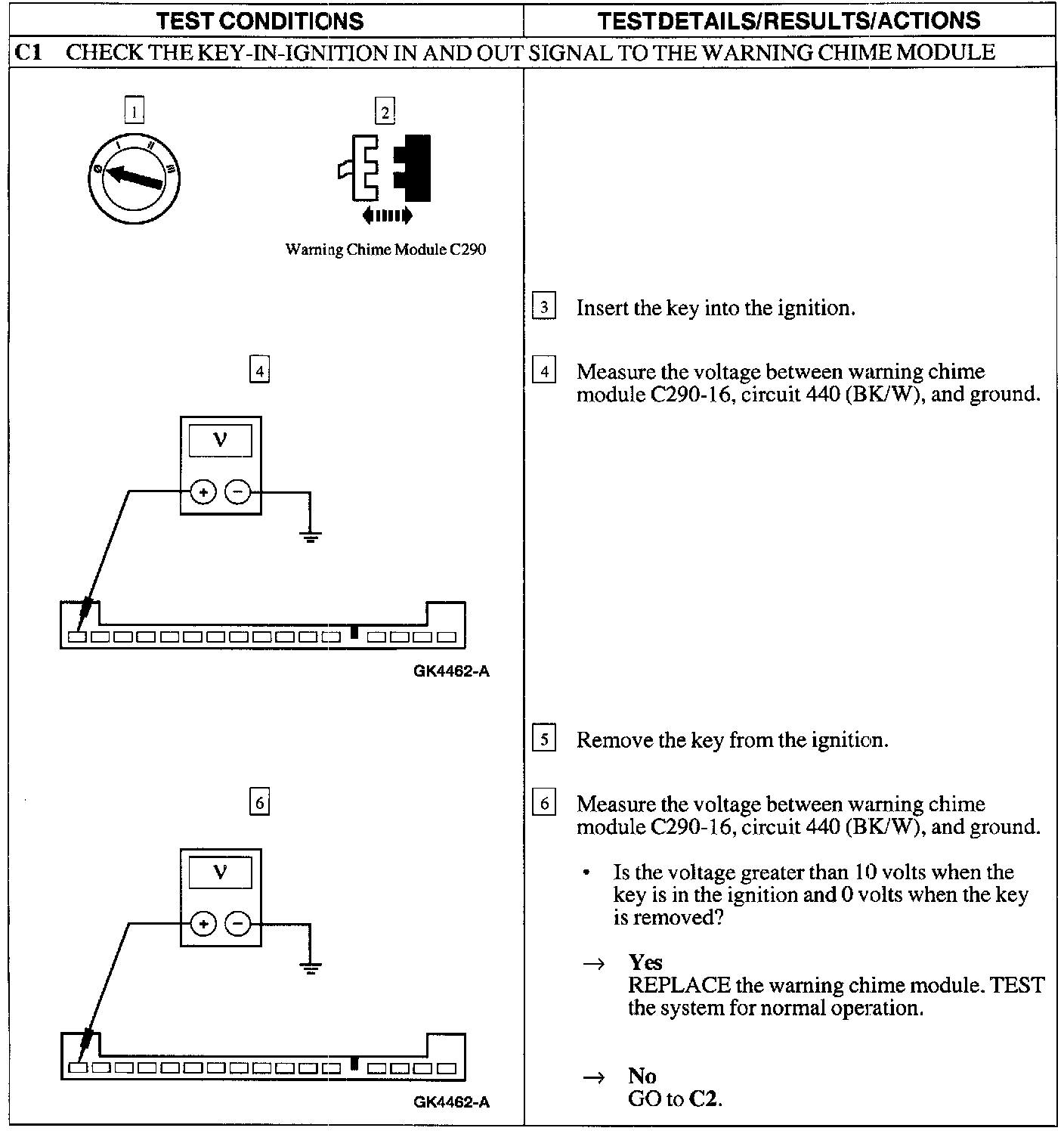

C1:

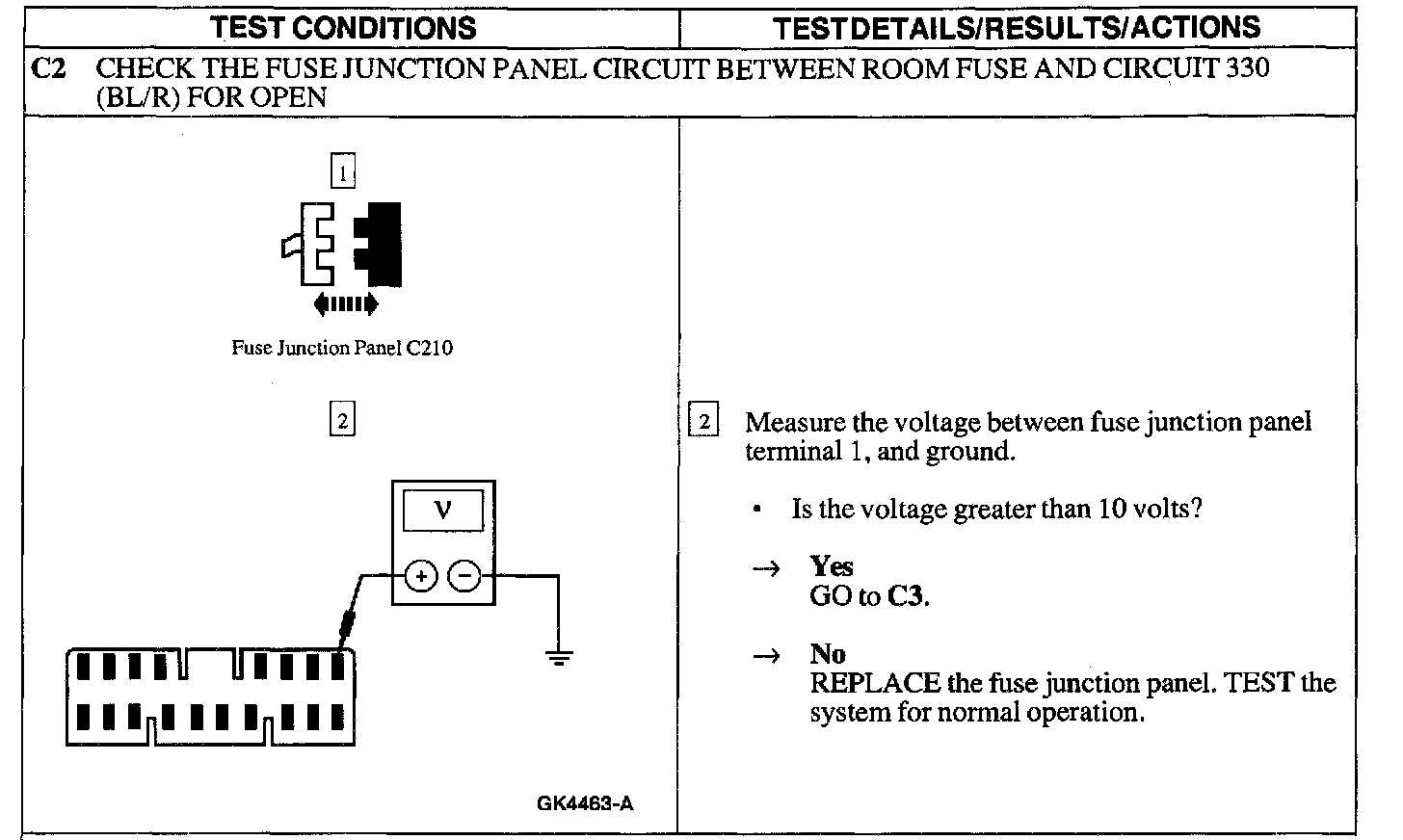

C2:

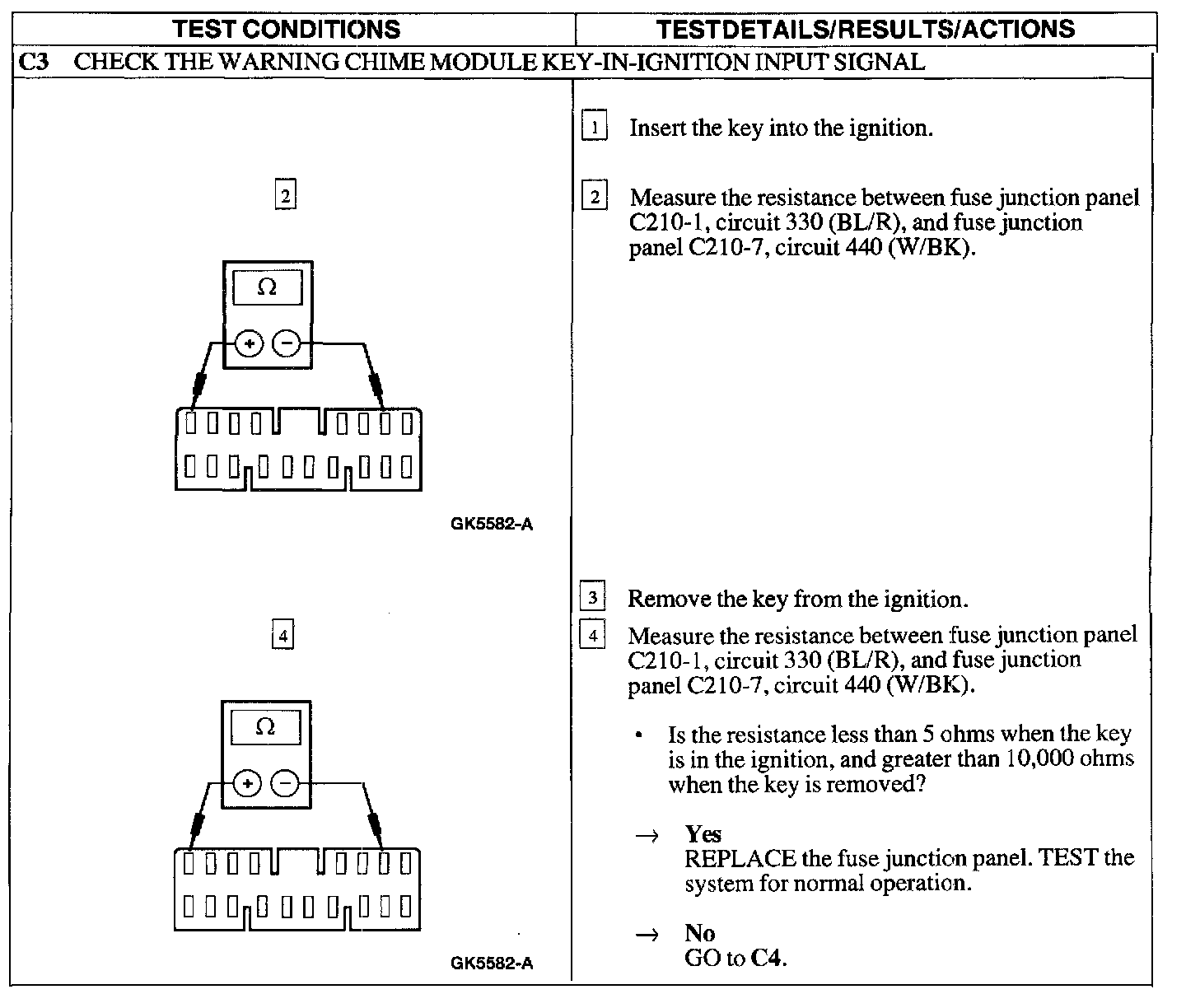

C3:

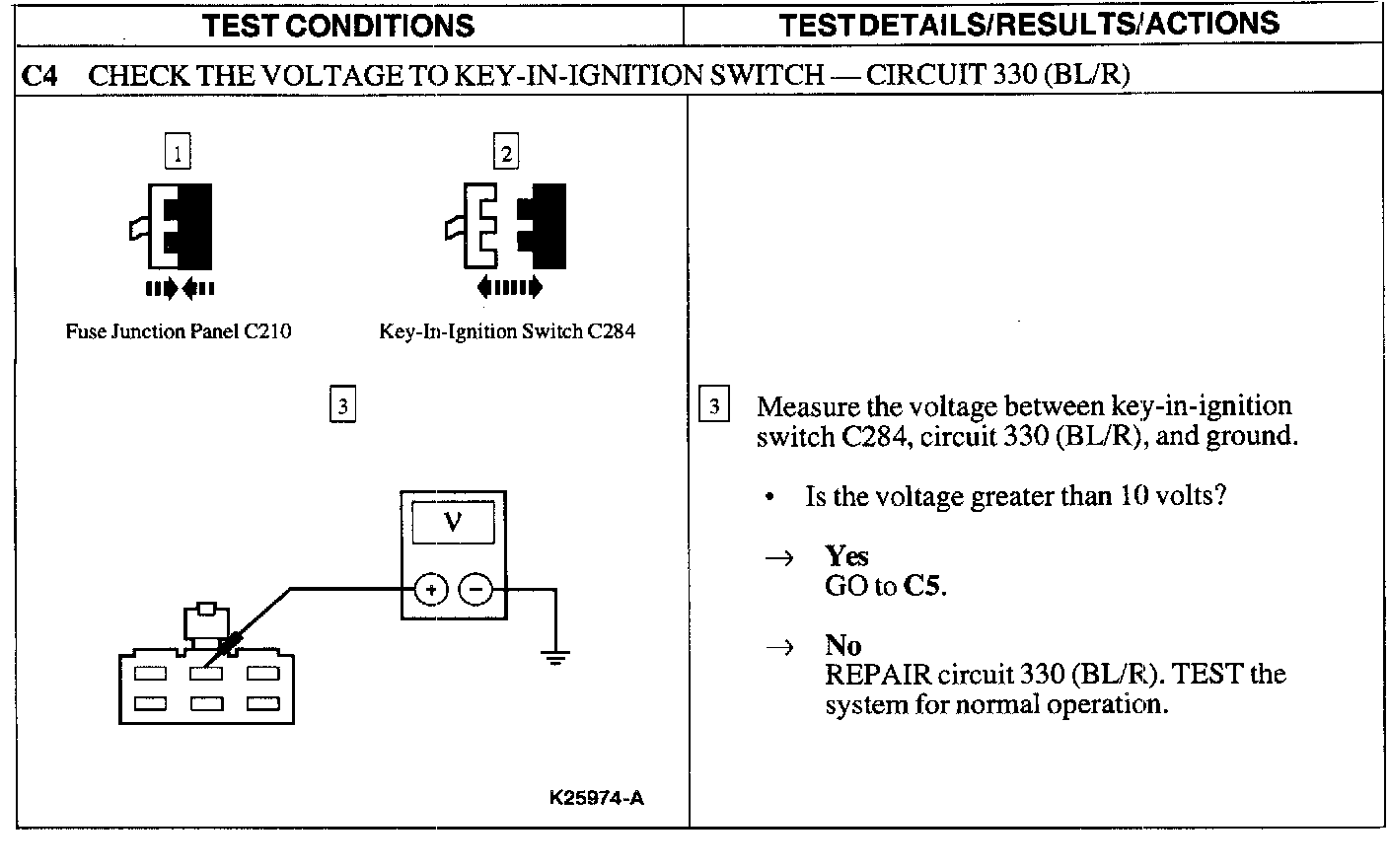

C4:

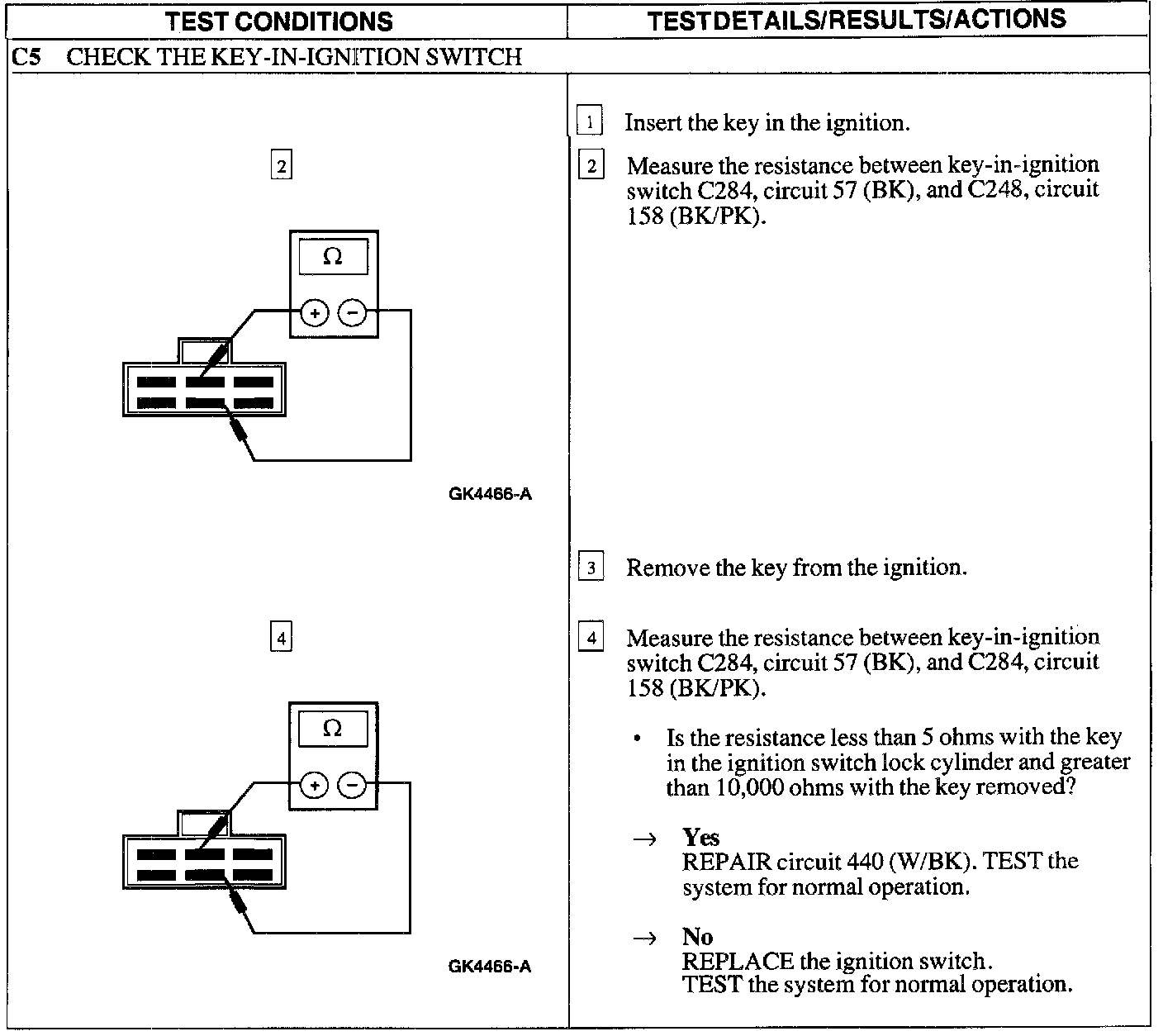

C5:
