A: Incorrect/Erratic Direction of Air Flow From Outlet(s)
A: Incorrect/Erratic Direction of Air Flow From Outlet(s)

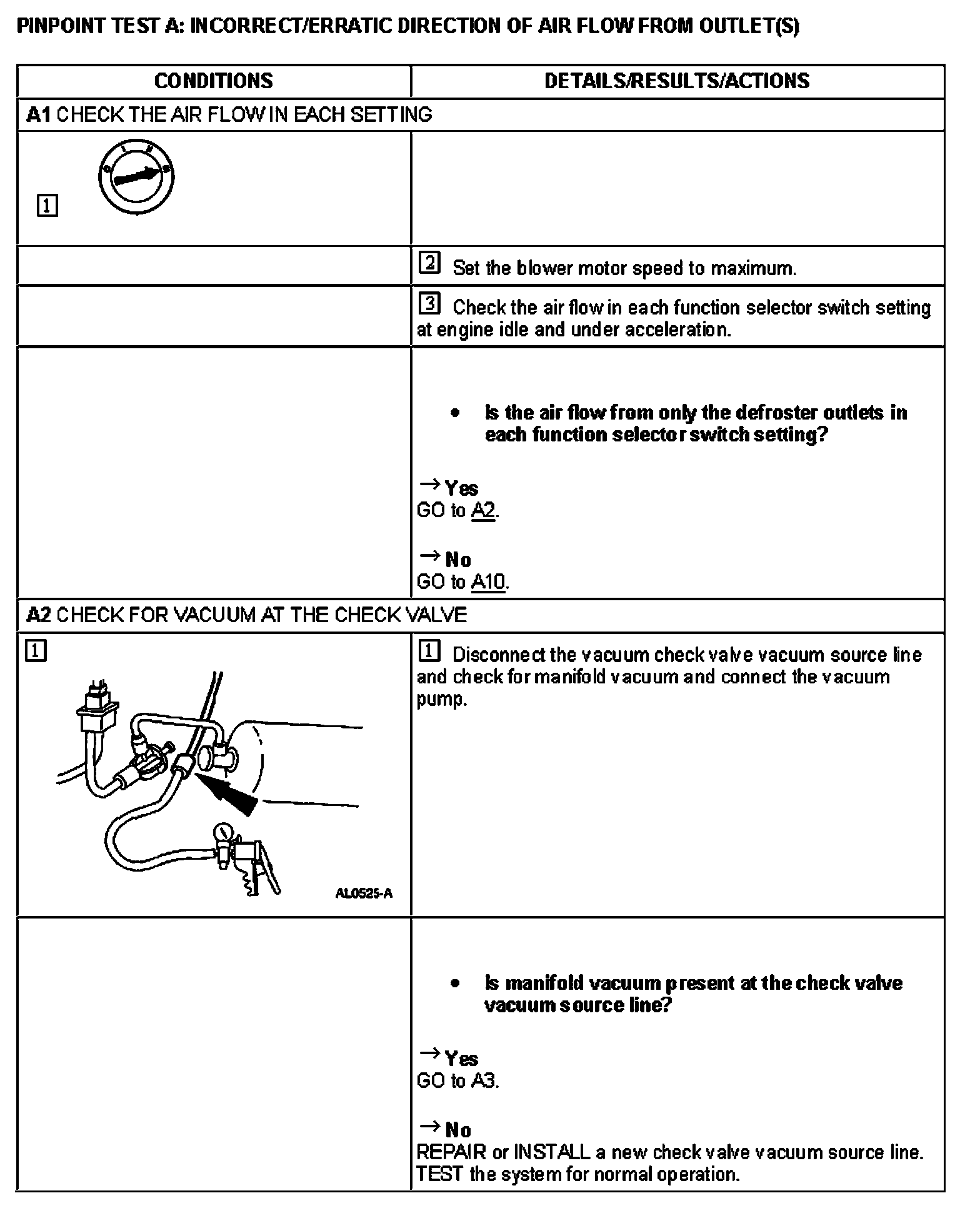

A1 - A2:

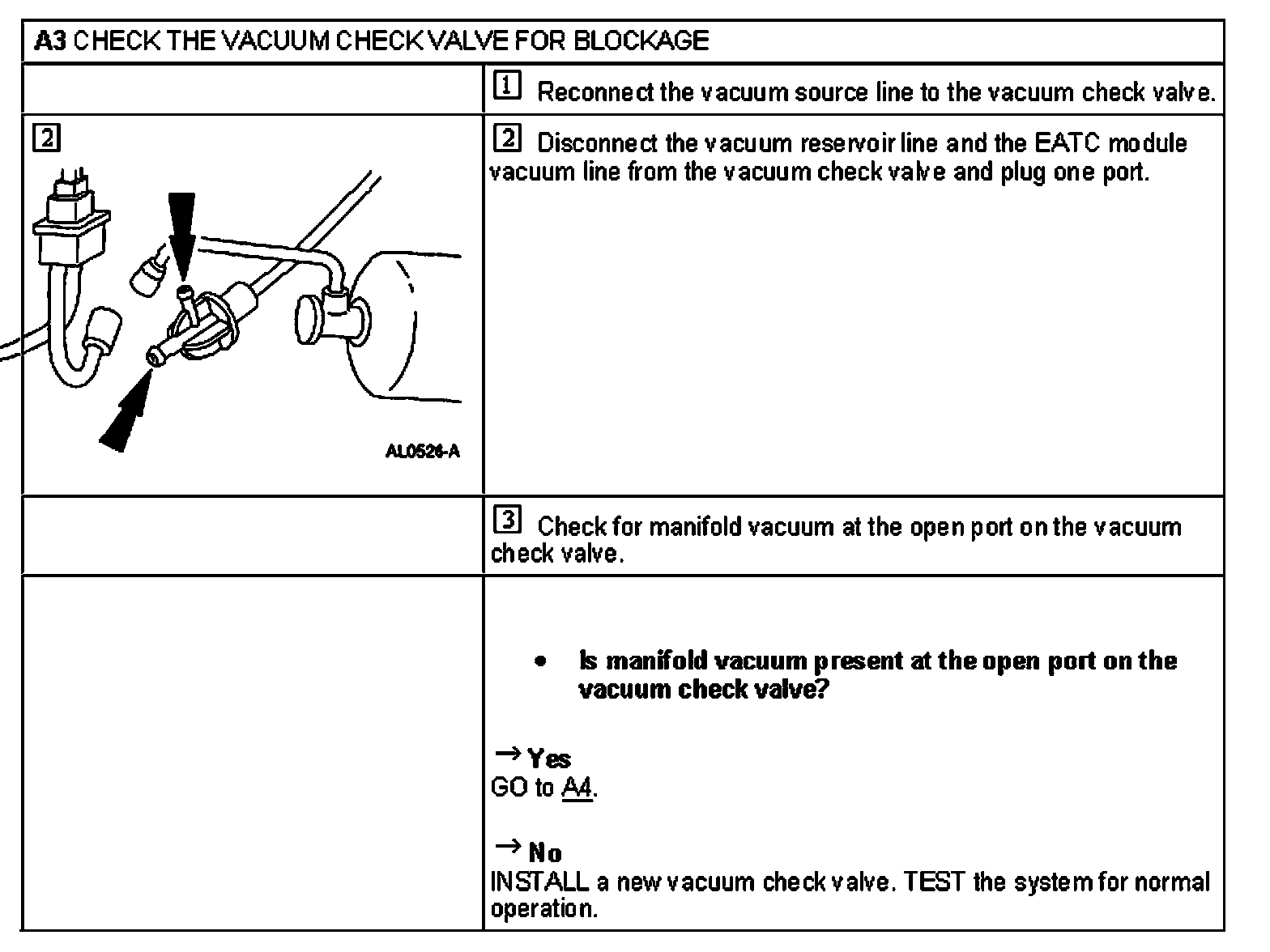

A3:

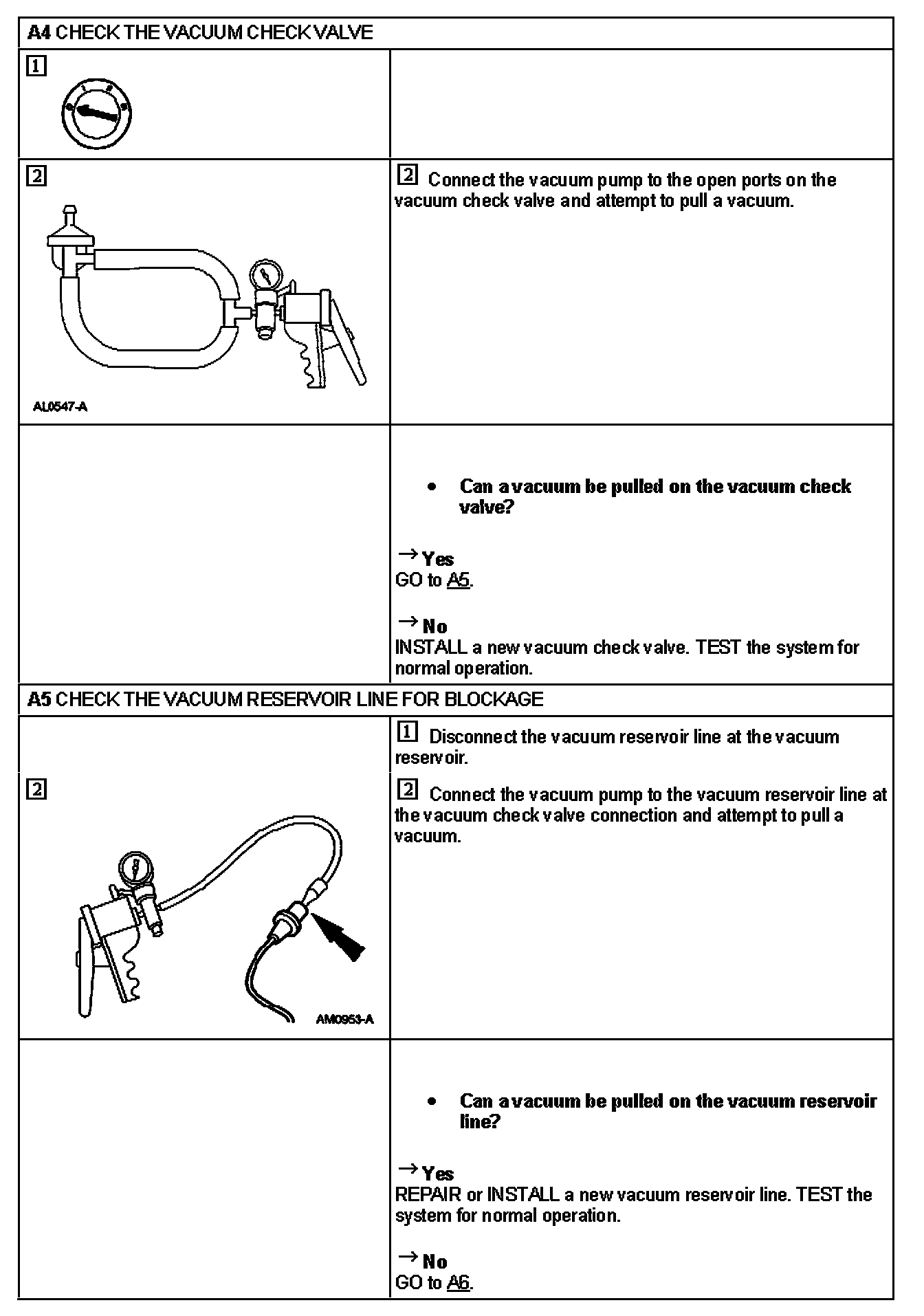

A4 - A5:

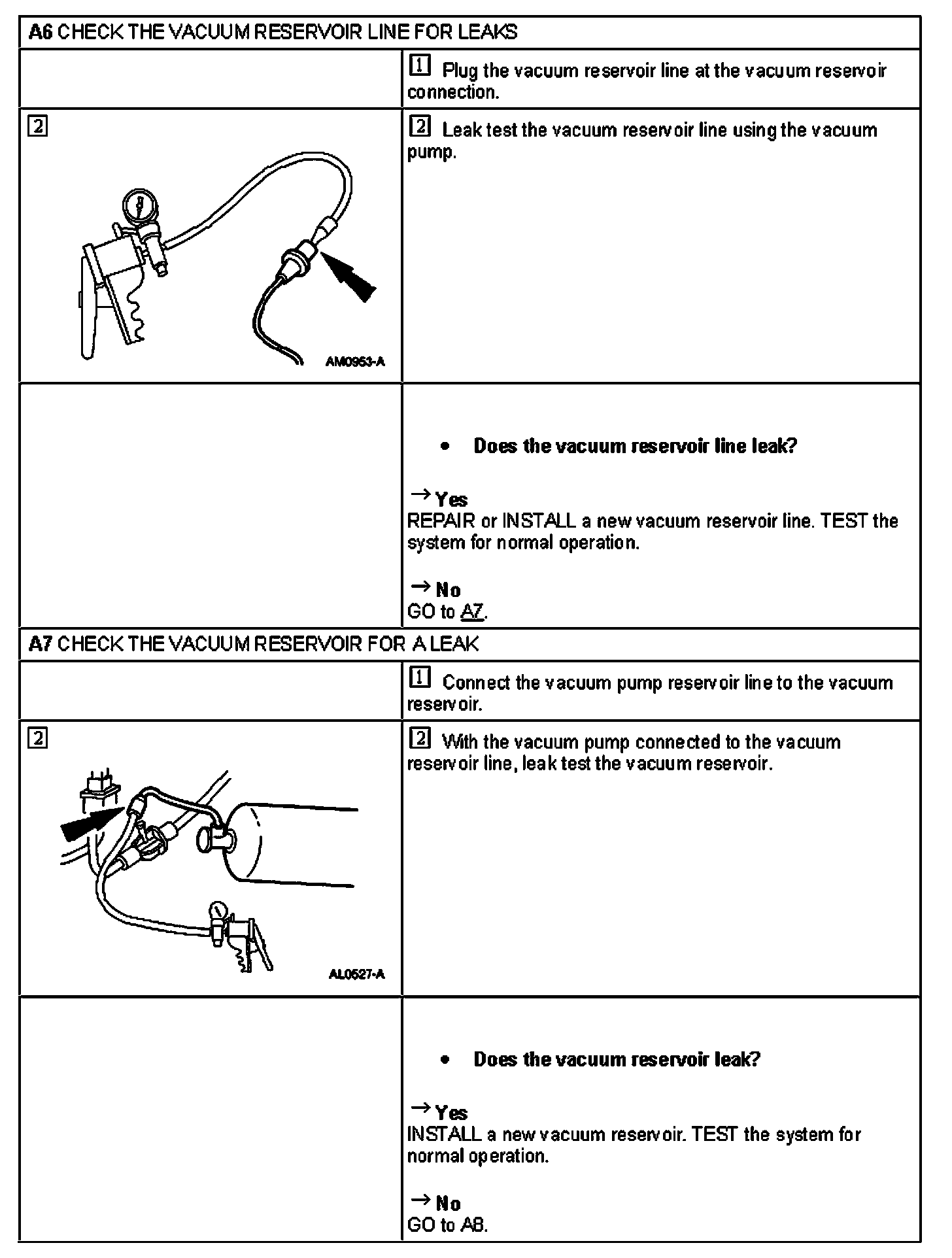

A6 - A7:
A8:

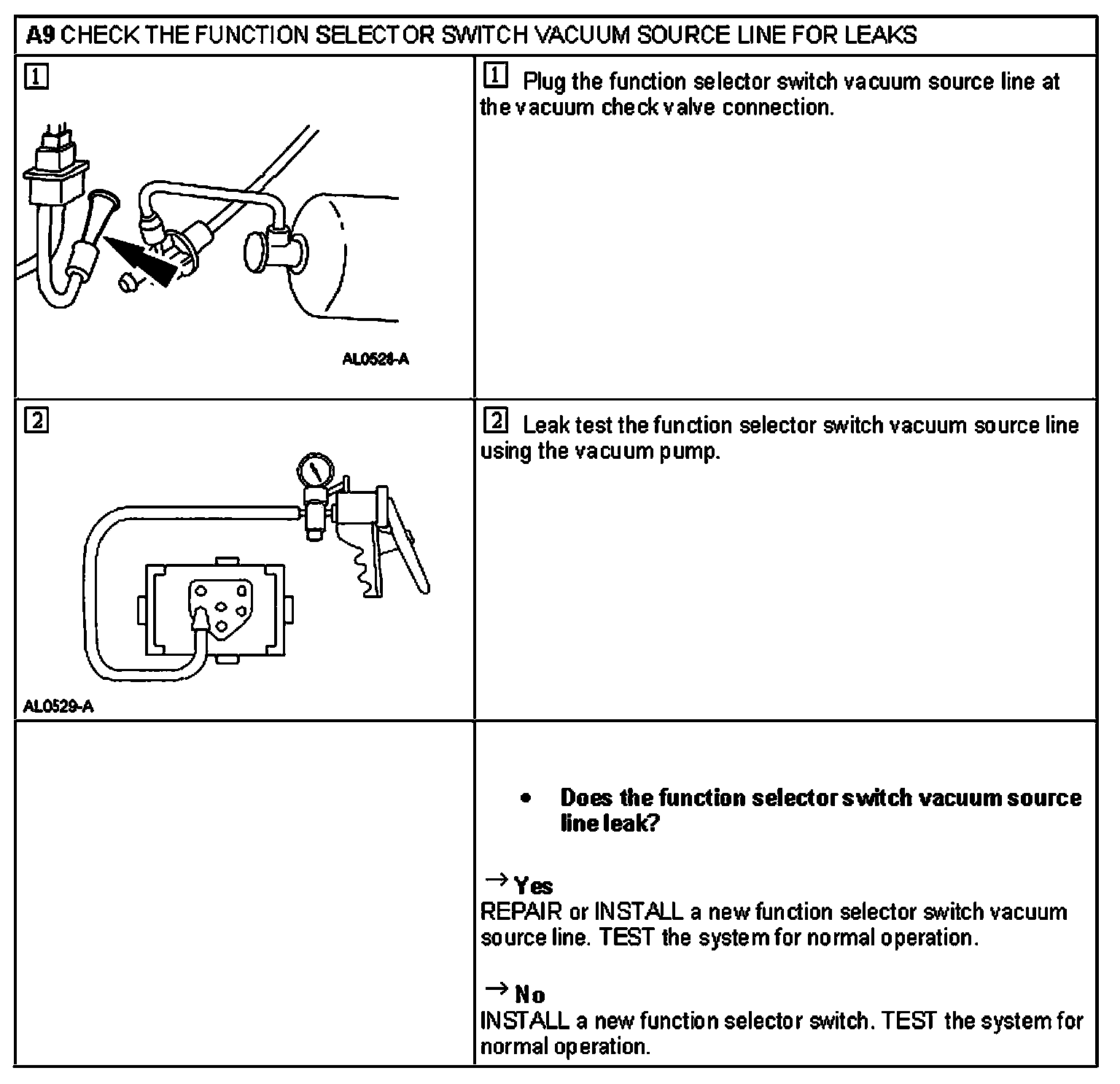

A9:

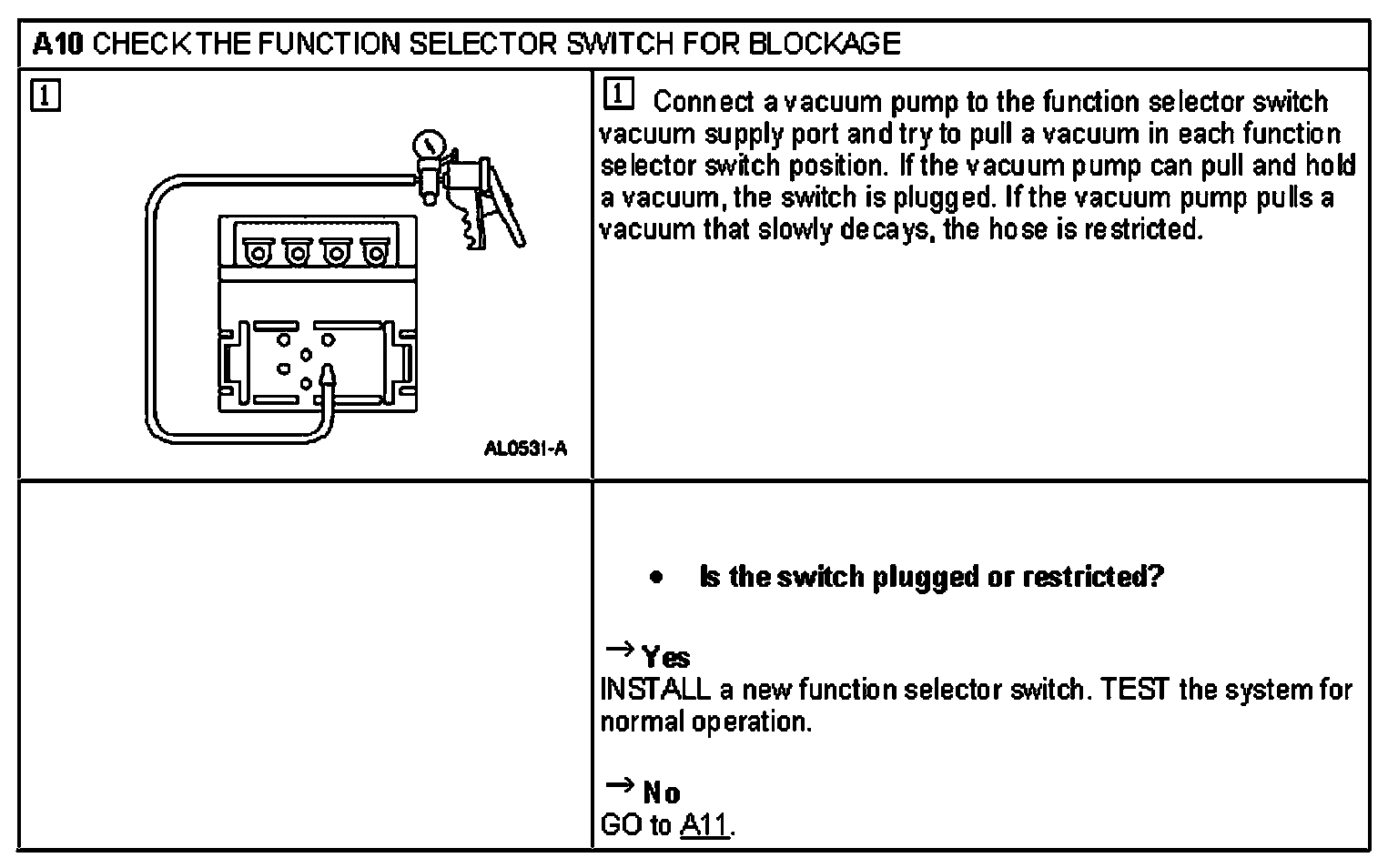

A10:

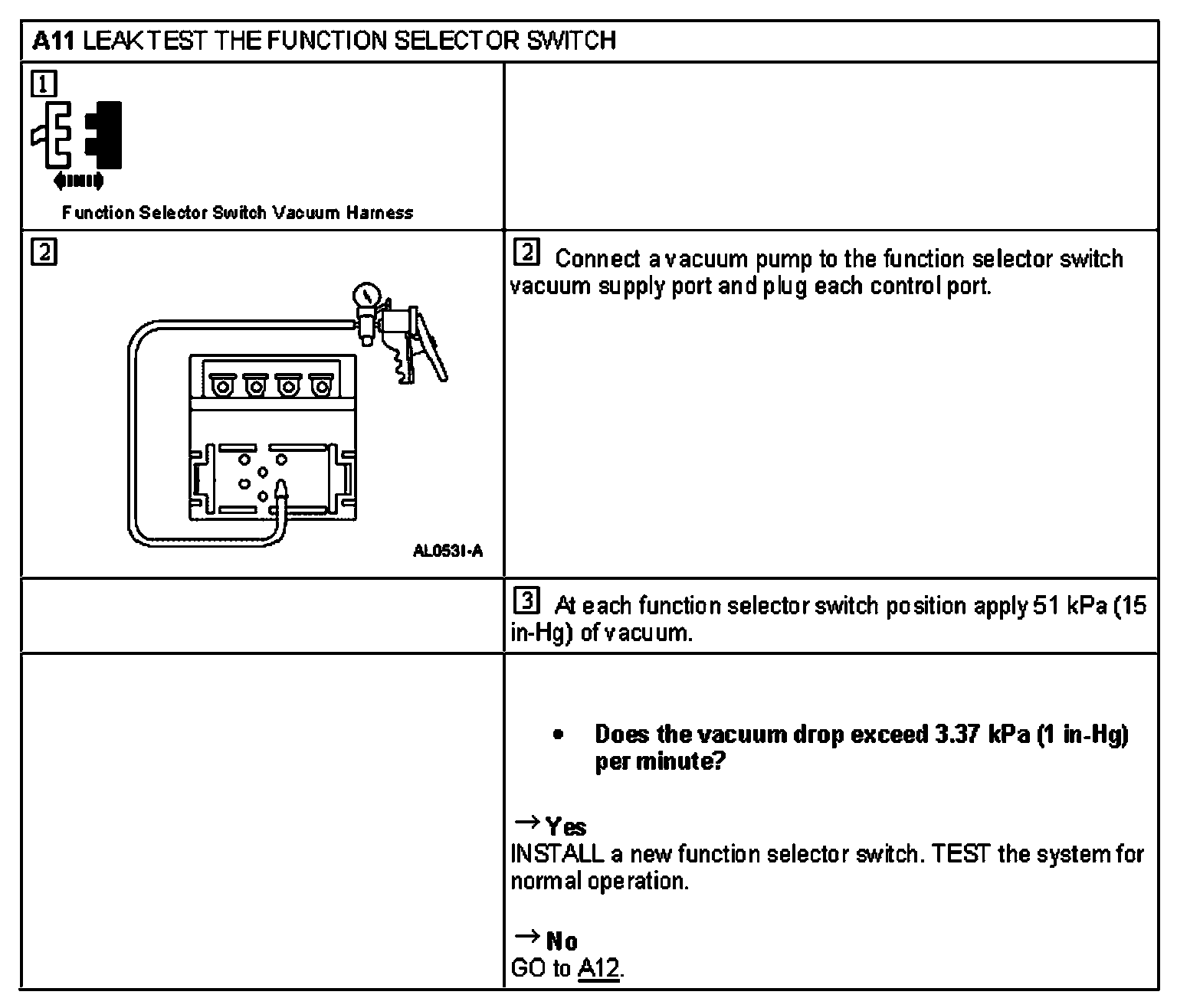

A11:

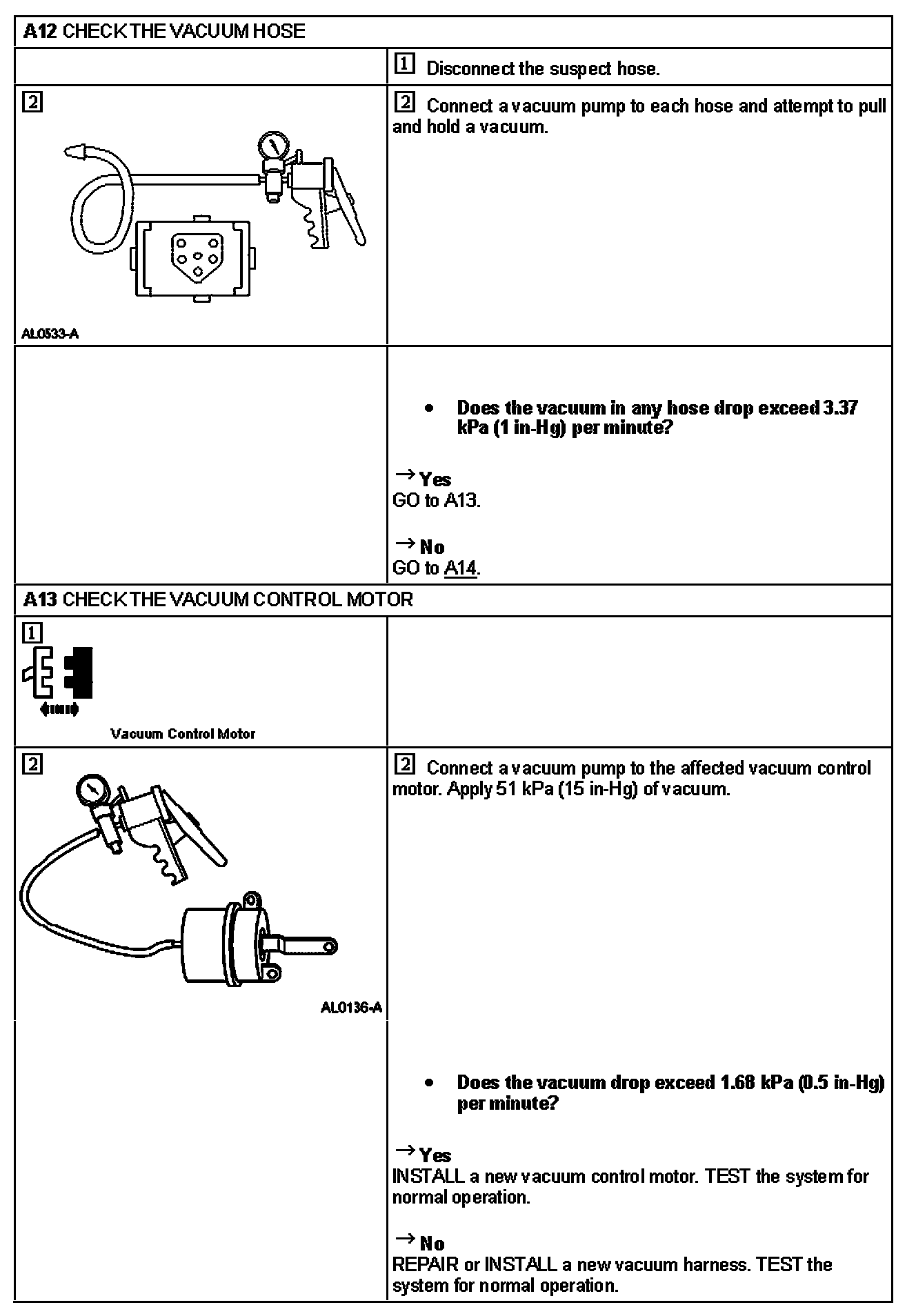

A12 - A13:

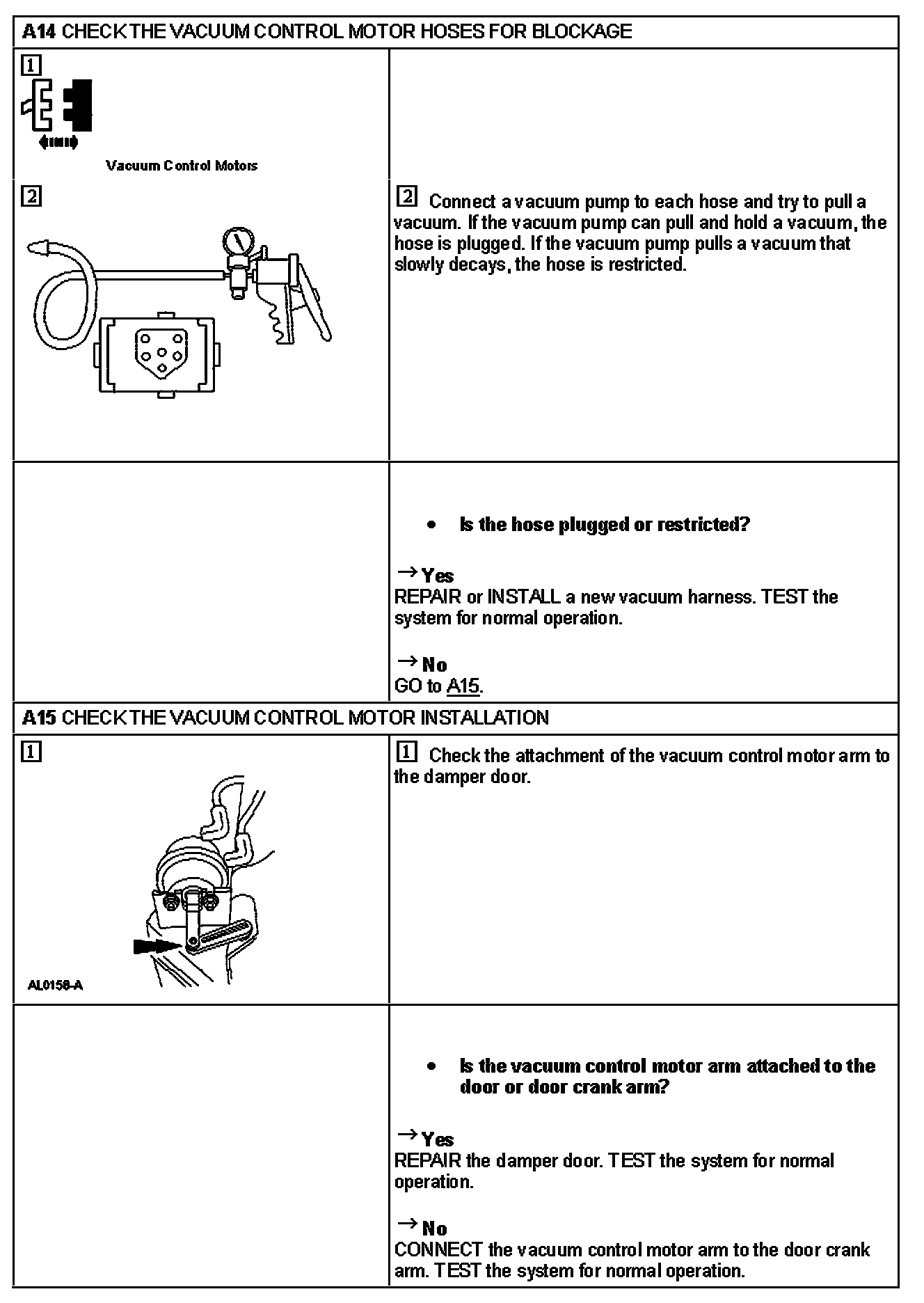

A14 - A15:
