Compressor Relief Valve

REMOVAL
1. Recover the refrigerant. Refrigerant Recovery
2. Raise and support the vehicle.







3. Remove the screws and the radiator air deflector.

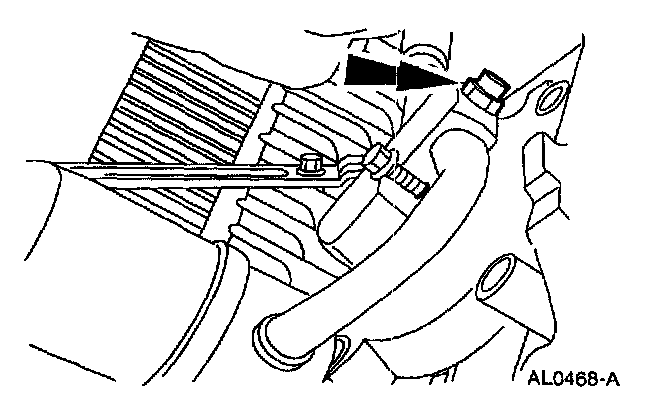

4. Remove the A/C compressor pressure relief valve.

INSTALLATION
1. To install, reverse the removal procedure.
- Lubricate the O-ring seals with PAG Compressor Oil YN-12-C or equivalent meeting Ford specification WSH-M1C231-B.
