Air Cleaner Fresh Air Duct/Hose: Service and Repair

REMOVAL

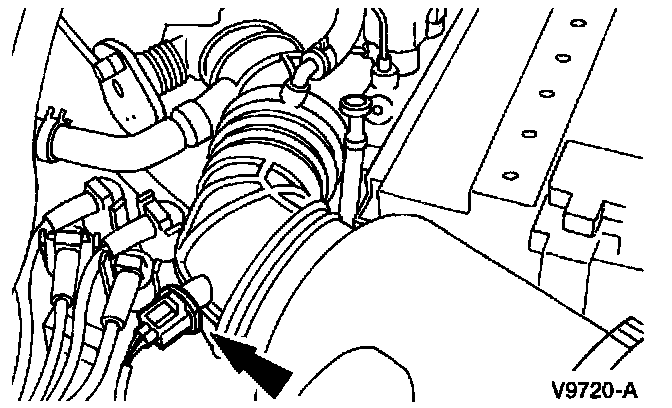

1. Disconnect the Intake Air Temperature (IAT) sensor electrical connector.

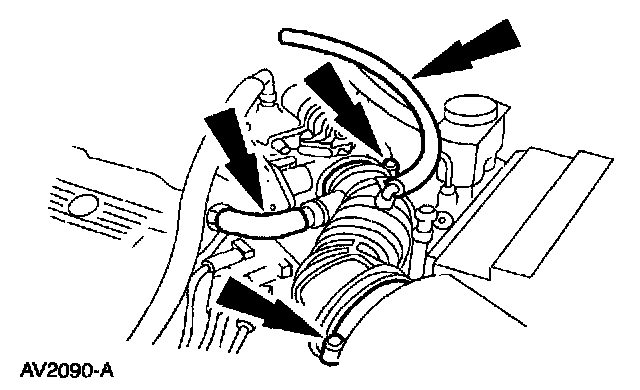

2. Remove the air cleaner outlet tube.
^ Disconnect the crankcase air check valve hose.
^ Disconnect the brake boost aspirator vacuum hose.
^ Loosen the two air cleaner outlet tube hose clamps and remove the outlet tube.

INSTALLATION
1. To install, reverse the removal procedure.
