Inspection

Valve and Seat Refacing Measurements

CAUTION: After grinding valves or valve seats, check valve clearance.

Note: The finished valve seat should contact the approximate center of the valve face.

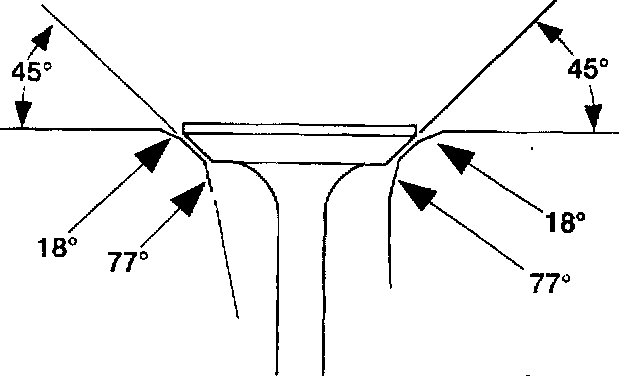

1. Check intake valve seat and intake valve angles.

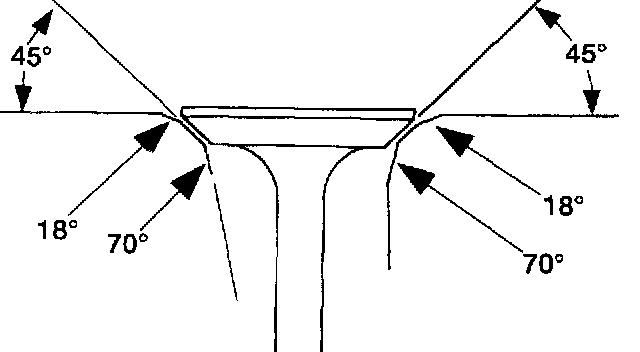

2. Check exhaust valve seat and exhaust valve angles.
