Clearance

1. Note: The camshaft journals must meet specification before checking camshaft journal clearance.

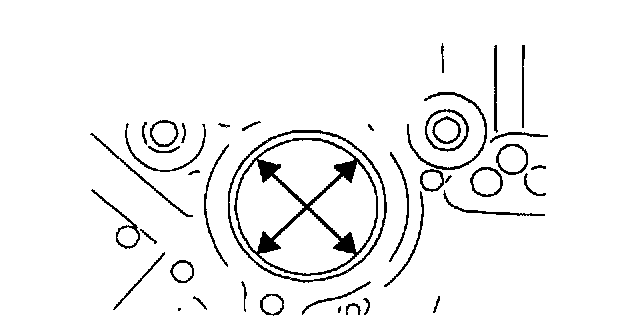

Measure the camshaft bearings in two directions.
^ Subtract the camshaft journal diameter from the camshaft bearing diameter.
