Pin Diameter

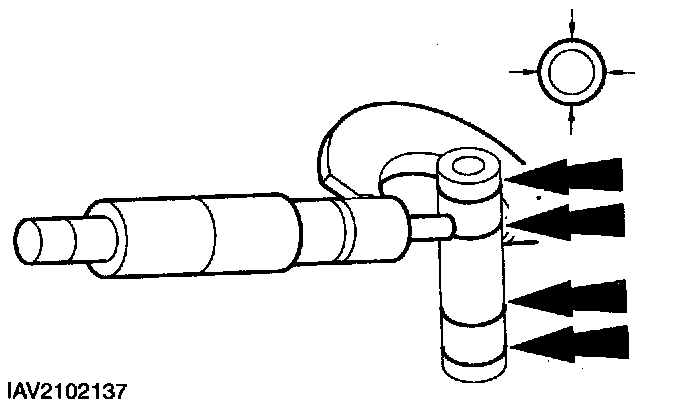

1. Measure the piston pin diameter in two directions at points shown. Verify the diameter is within specification.
