Oil Pan Baffle

Removal
1. Remove the oil pan and oil pan gasket.

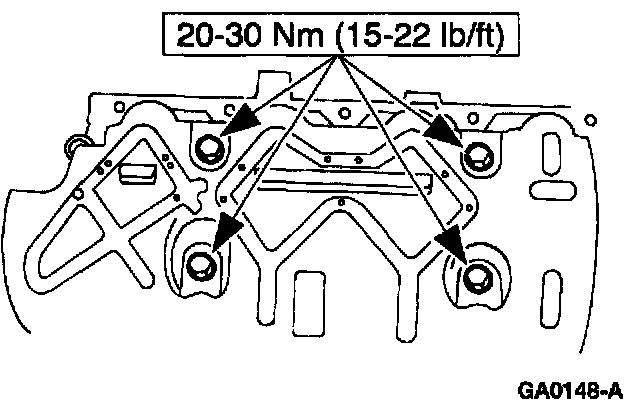

2. Remove the four nuts and the oil pan baffle.

Installation





1. Install the oil pan baffle.
2. Install the oil pan.
