Tracer L4-122 2.0L SOHC VIN P SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
Upper Engine Components
Upper Engine Components

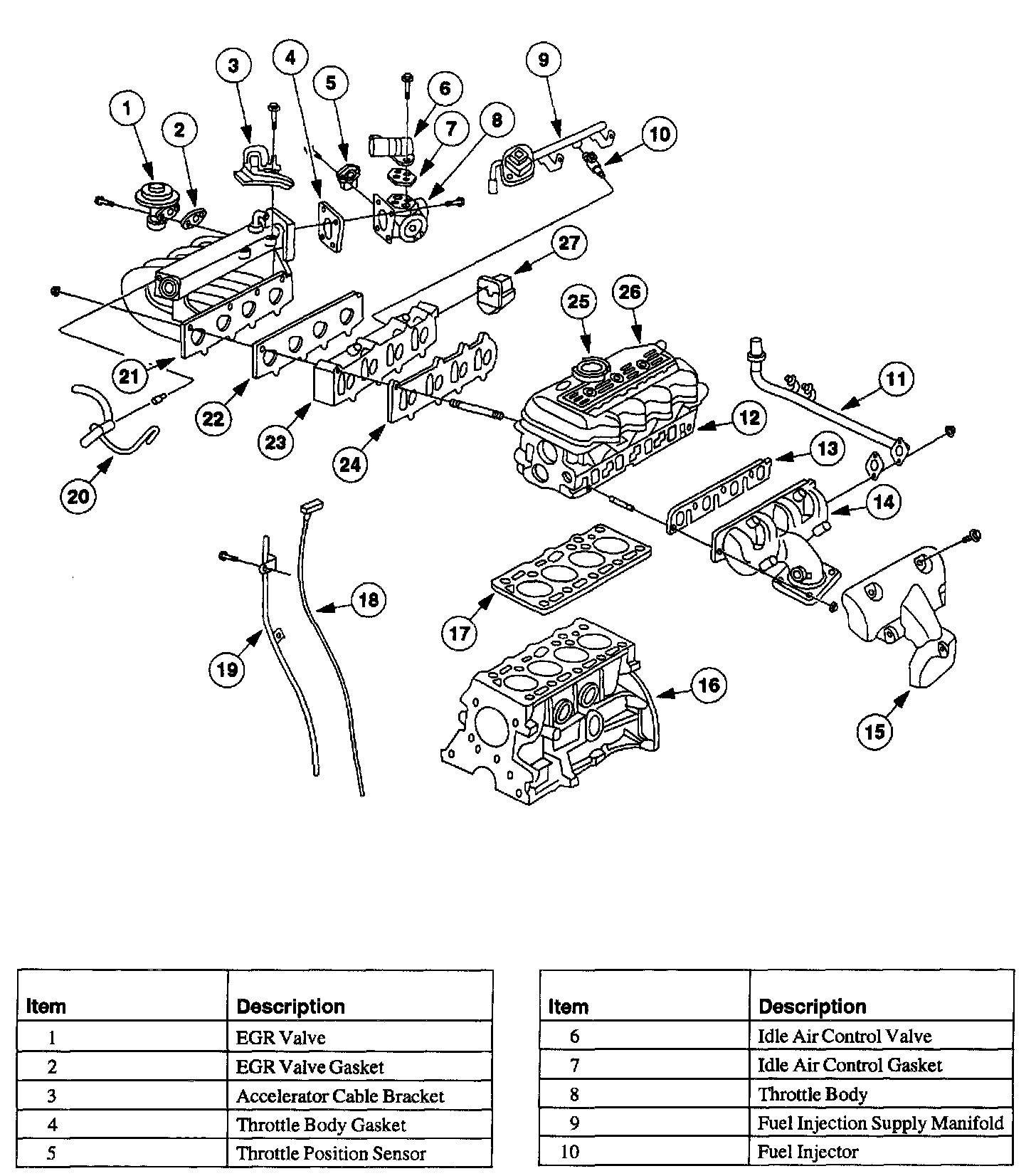

Upper Engine Components (1 Of 2):

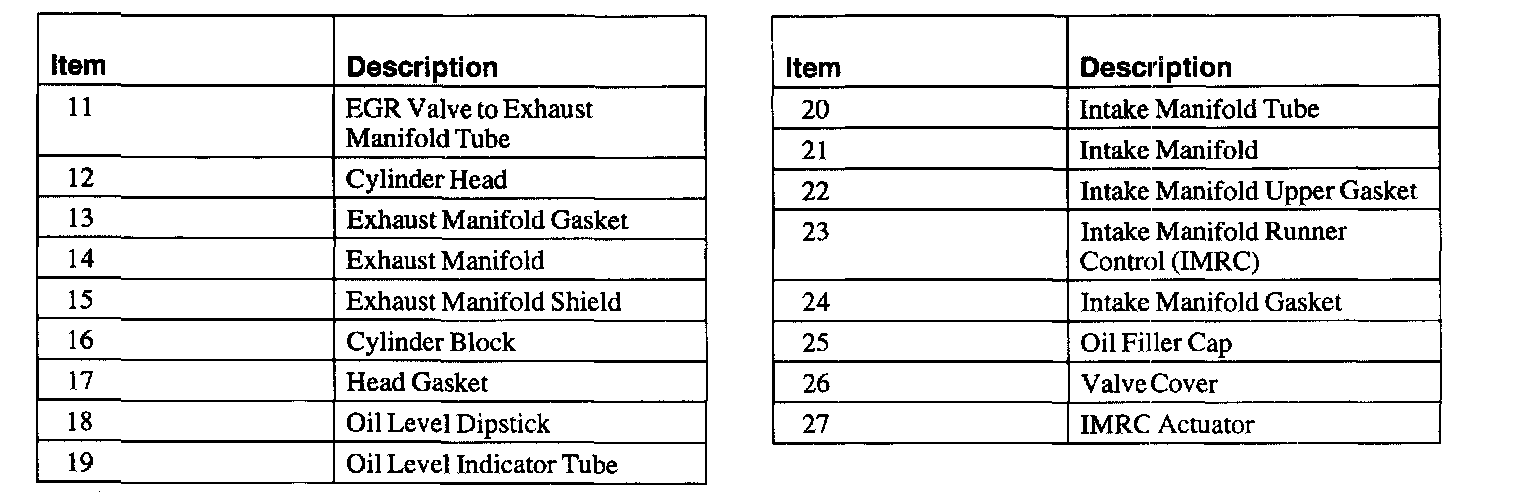

Upper Engine Components (2 Of 2):
