Home >> Mercury >> 1999 >> Tracer L4-122 2.0L SOHC VIN P SFI >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Cylinder Head Components

Cylinder Head Components

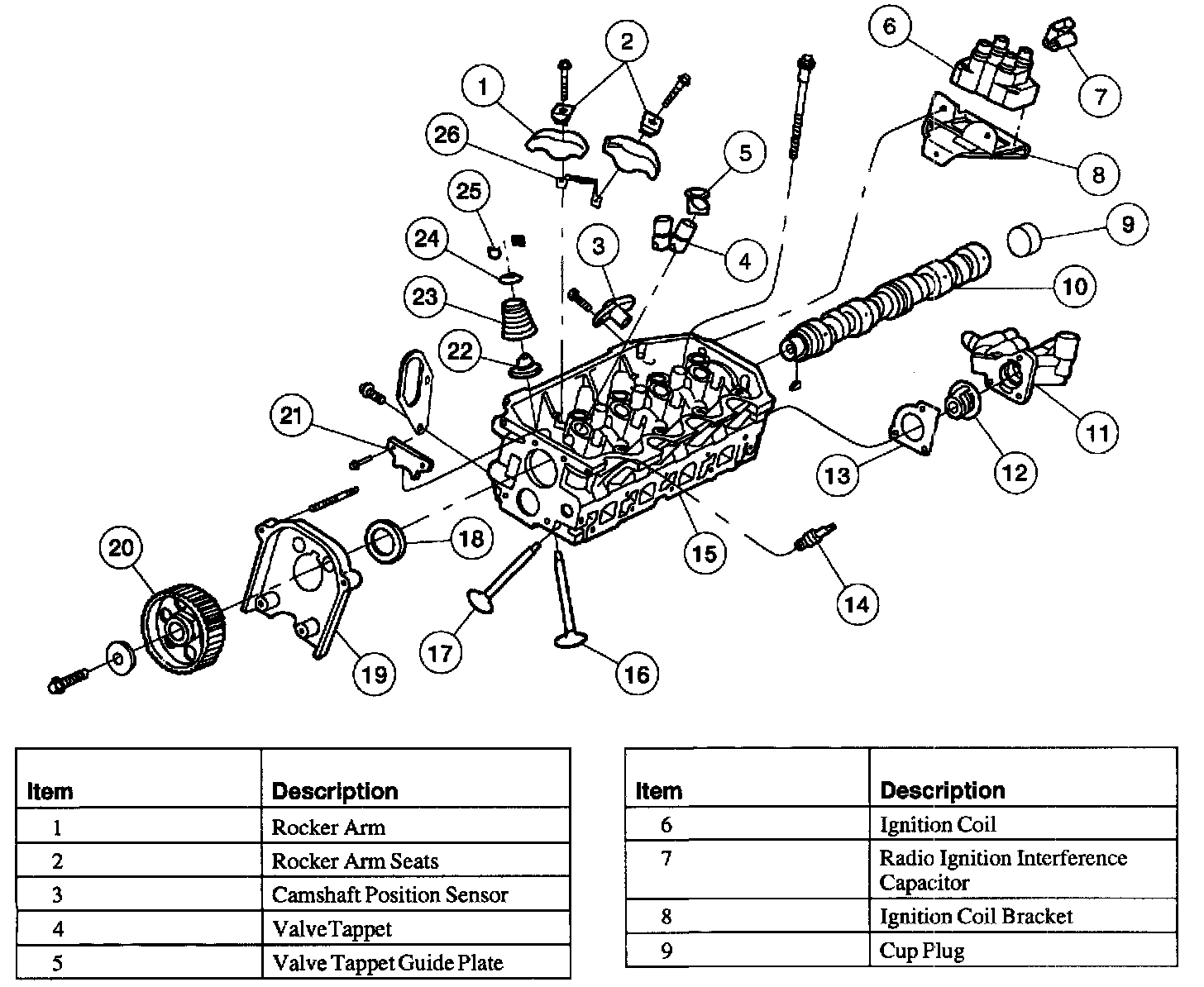

Cylinder Head Components (1 Of 2):

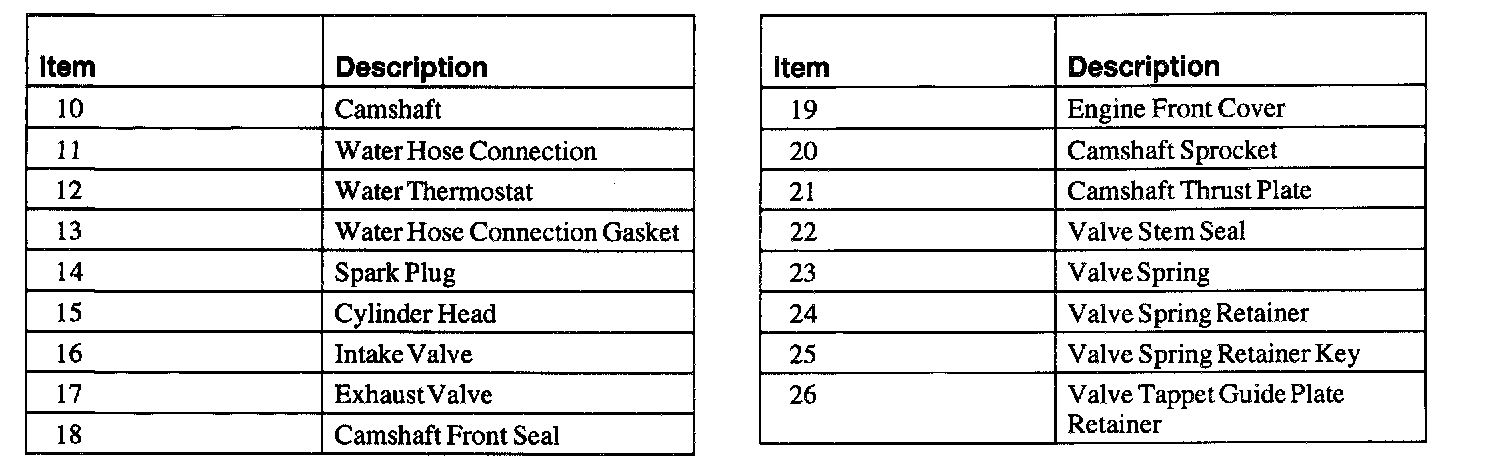

Cylinder Head Components (2 Of 2):
