Tracer L4-122 2.0L SOHC VIN P SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Axle Shaft
Axle Shaft

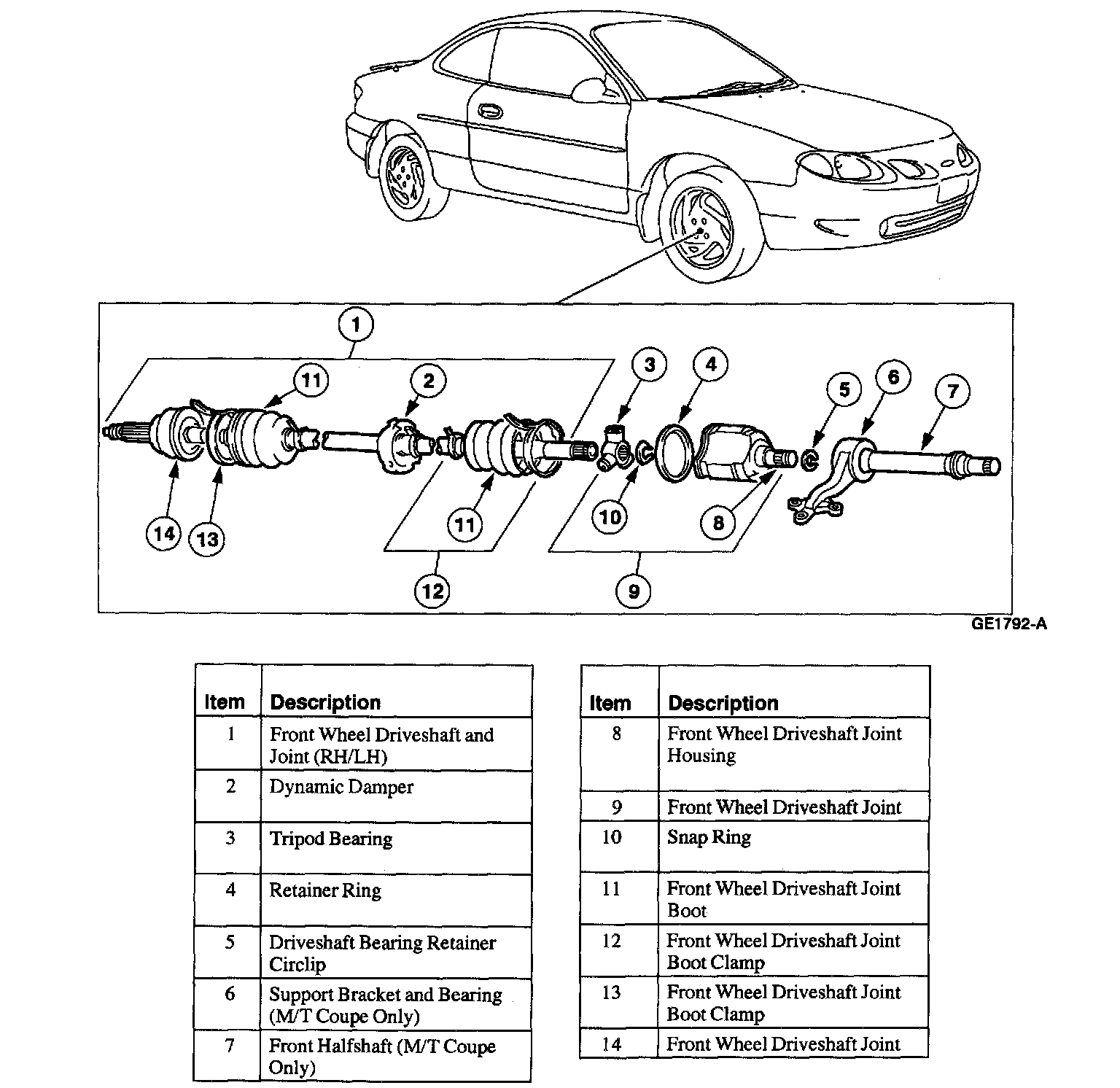

Front Wheel Driveshaft and Joint (RH Shown, LH Similar):
