Tracer L4-122 2.0L SOHC VIN P SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
System Diagram
>>
Ground Diagrams (By Ground Number)
>>
G401
G401

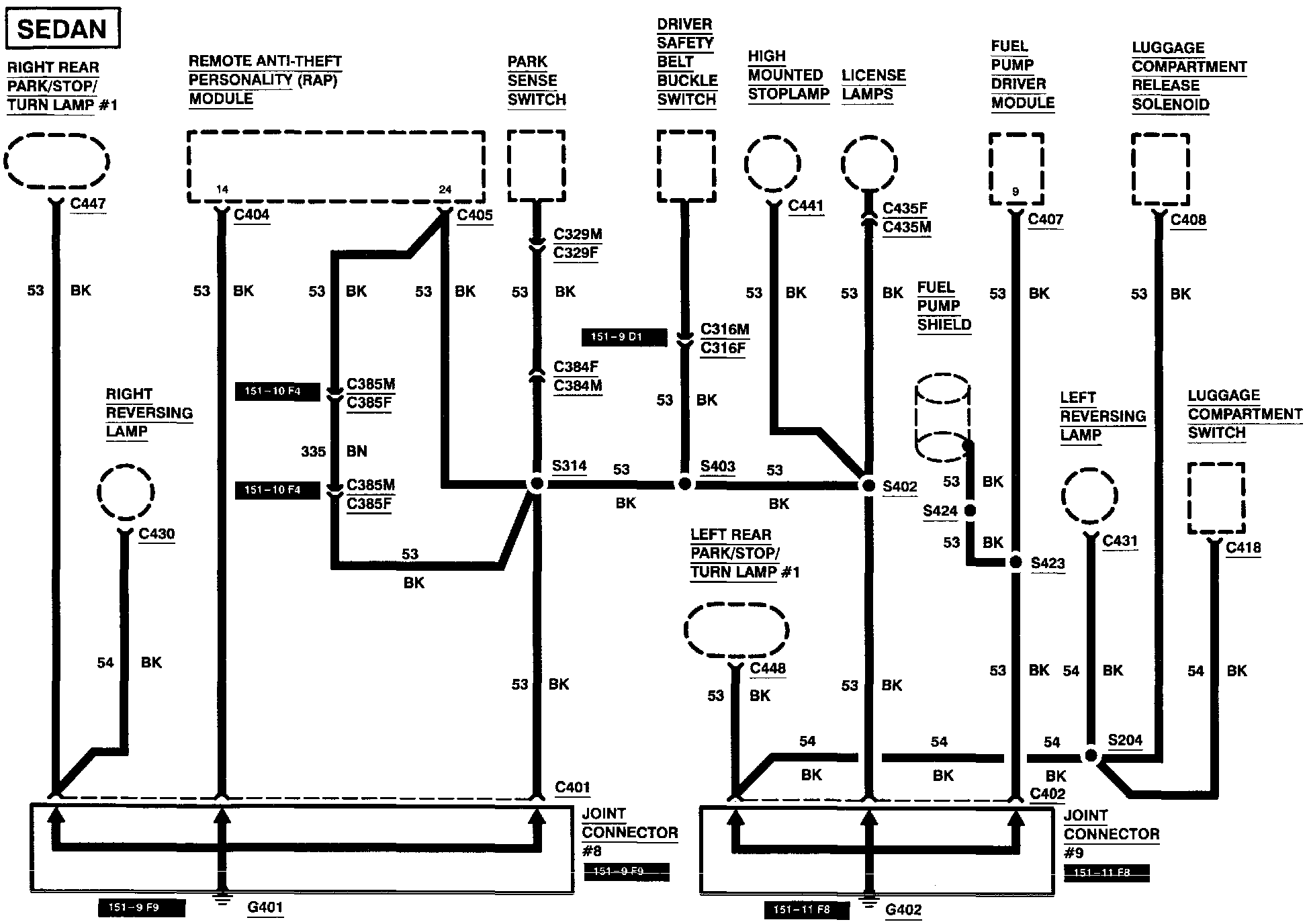

Diagram 10-10:

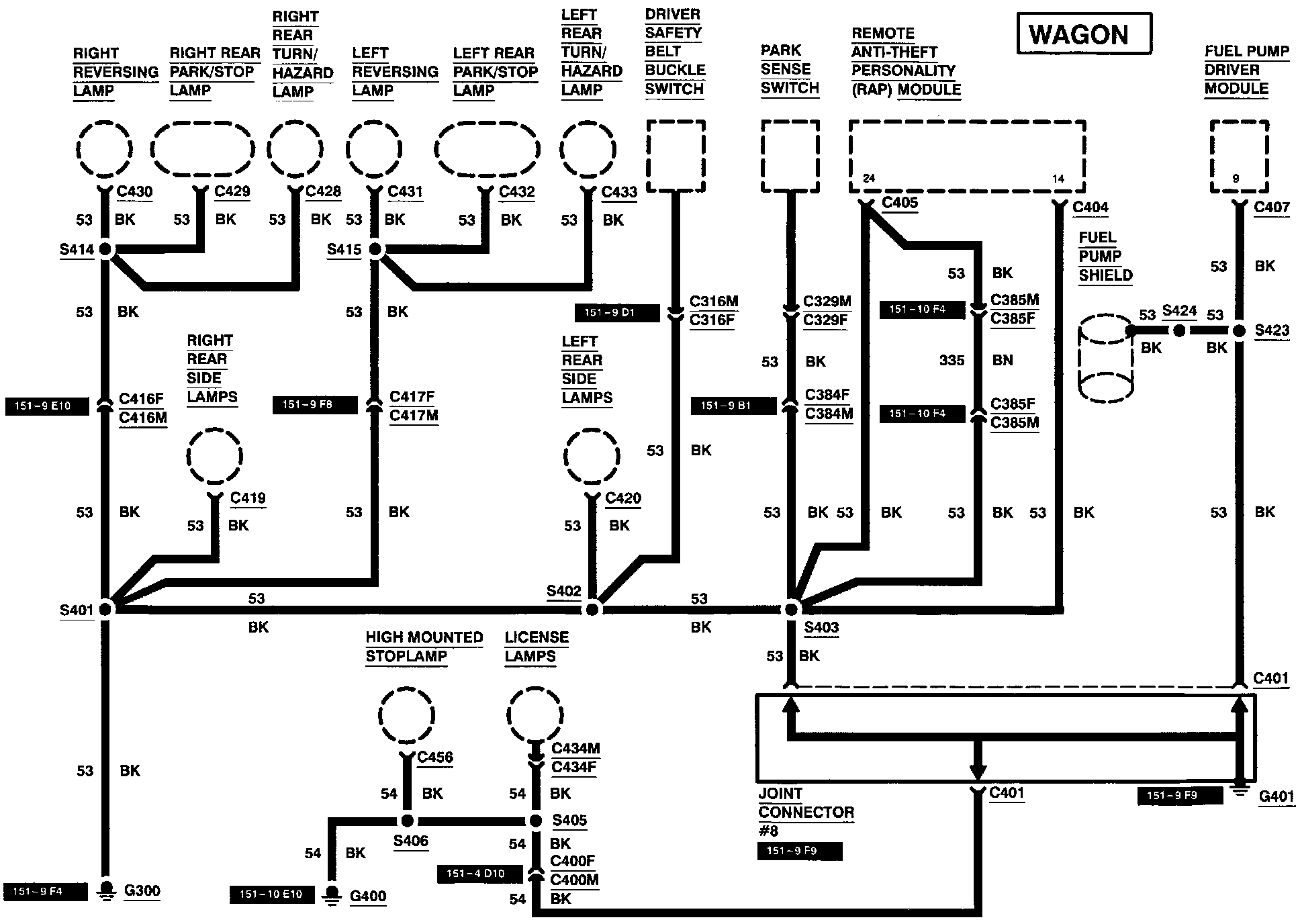

Diagram 10-11:

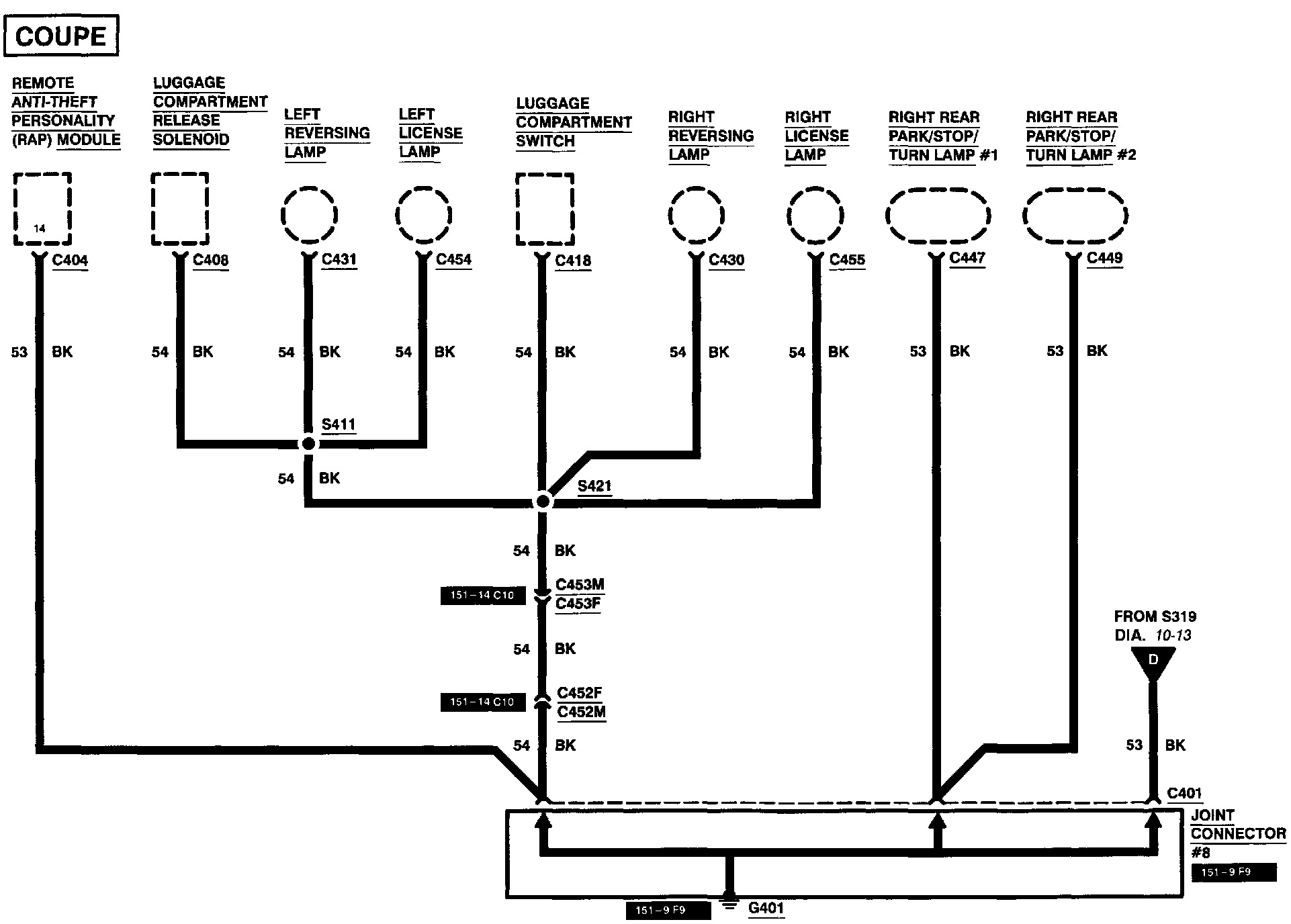

Diagram 10-12:
